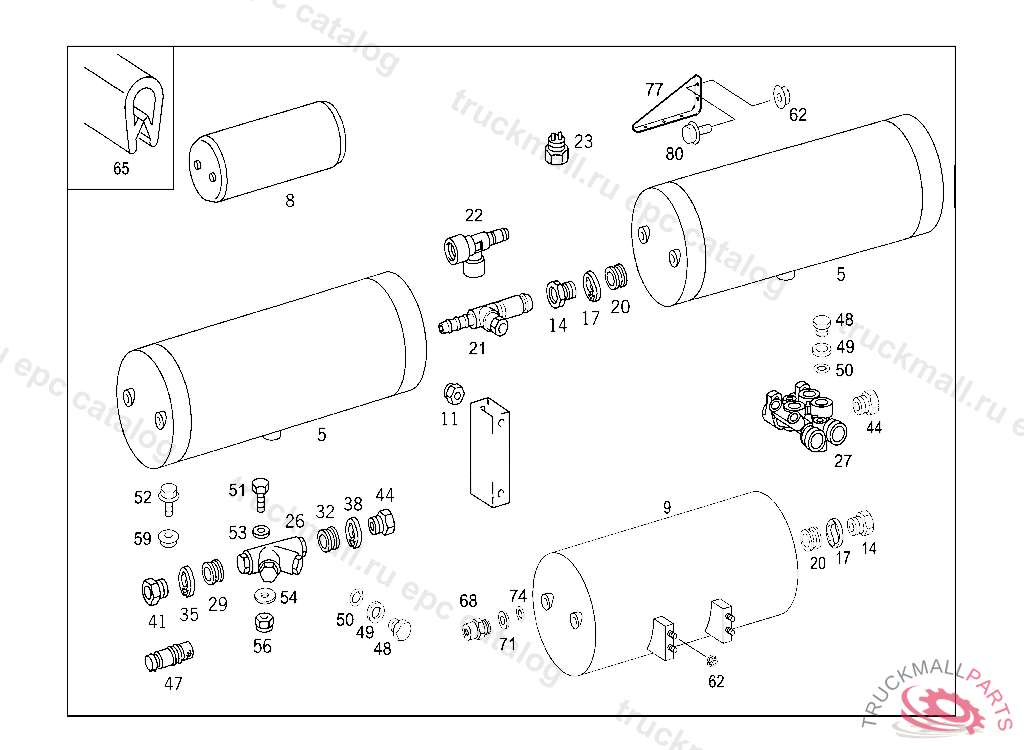

Поз.
Артикул
Описание
5
5
RESERVOIR , Replaced By: A6964320001, +002A6934291240
8
RESERVOIR AIR RESERVOIR III 5L
8
RESERVOIR AIR RESERVOIR
8
RESERVOIR AIR RESERVOIRS I AND II, TO BE ADAPTED DURING ASSEMBLY
9
RESERVOIR AIR RESERVOIR 20 L
11
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
14
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
14
SCREW. UNION SCREW LINE CONNECTION
17
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
20
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
21
T-FITTING HOSE WIDTH, 9 MM,TO M 22
22
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
22
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10",TO M 22, VOSS 232
23
SWITCH PARKING BRAKE VALVE,CONNECTION: "11"
23
SWITCH , Replaced By: A6935457609
26
DISTRIBUTOR ENGINE SHUT-OFF,5 766894
27
DISTRIBUTOR TRAILING AXLE
29
SEAL RING , Replaced By: A0009940747
32
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
35
LOCK , Replaced By: A0009945448
38
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
41
SCREW. UNION SCREW , Replaced By: A0009973734
41
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
44
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
44
SCREW. UNION SCREW LINE CONNECTION
47
INTERLOCK CONNECTOR TO PLUG THE FREE CONNECTIONS TO M16, VOSS 232
47
PLUG DISTRIBUTOR,CONNECTIONS: "03,04,05",TO M 16,5 766894
48
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
48
SCREW PLUG
48
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
49
THRUST RING CHECK VALVE TO AIR RESERVOIR
49
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
49
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
50
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
50
O-RING CHECK VALVE TO AIR RESERVOIR
50
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
50
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
51
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X40
52
SCREW SHIFT LEVER TO BRACKET M8X30
53
WASHER PLUG SOCKET TO BRACKET
54
WASHER , Replaced By: N009021006208
56
NUT BRACKET TO FIRE WALL
59
NUT HORN TO BRACKET M8
62
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
65
EDGE GUARD SECTION AT LEFT SIDE MEMBER 85 MM
68
FITTING , Replaced By: A0019972372
71
THRUST RING CHECK VALVE TO AIR RESERVOIR
74
O-RING CHECK VALVE TO AIR RESERVOIR
77
80
SCREW BRACKET TO SIDE MEMBER M10X35
