Поз.
Артикул
Описание

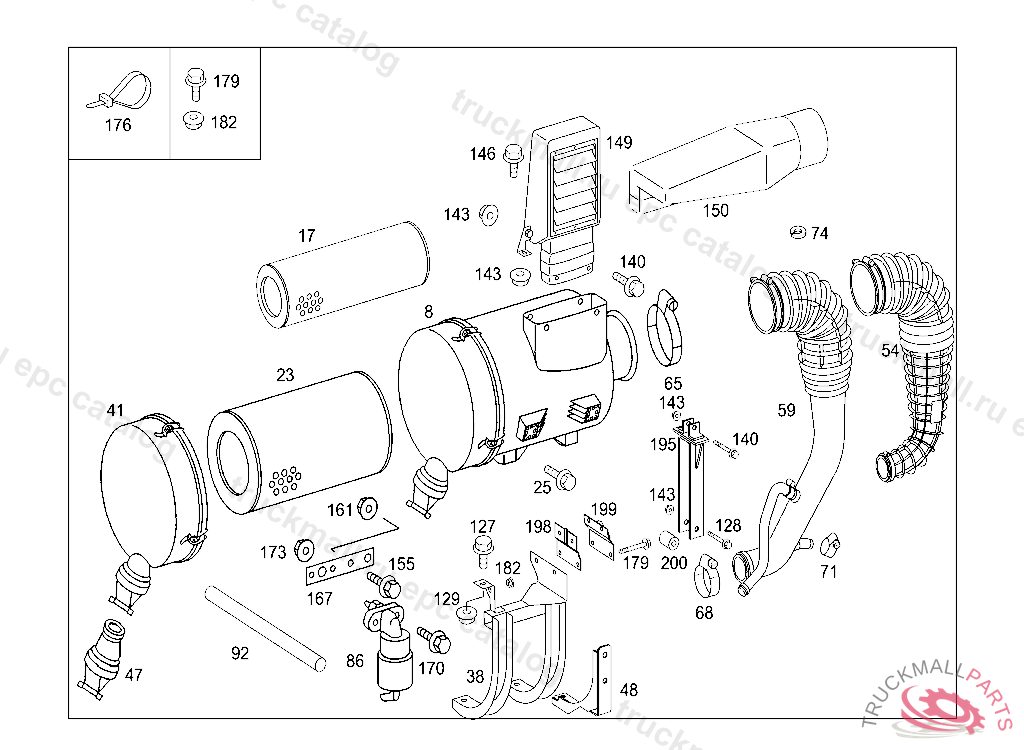

8
AIR CLEANER"MANN" - MATERIAL PLASTICO,D 159023
8
AIR CLEANER
17
FILTER ELEMENT SAFETY CARTRIDGE
23
23
FILTER ELEMENT
38
41
COVERTO 376 090 47 01
59
65
CLAMP , Replaced By: A0059970690
65
CLAMP AIR INTAKE PIPE TO ENGINE "100"
68
CLAMP HOSE 70-90X13 MM
68
CLAMP , Replaced By: N000000000674
71
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
71
CLAMP25-40X13 MM
71
71
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
74
LOCK WASHER TAIL LAMP TO BRACKET
86
VACUUM BOXTO 376 090 47 01,D 159023
86
VACUUM BOX
92
HOSE VACUUM BOX
92
HOSETO 376 090 47 01,D 159023
128
SCREW SUPPORTING RAIL TO SUPPORT
128
SCREW CLAMP TO BRACKET
140
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
143
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
146
SCREW , Replaced By: N910105010017
149
SCOOPTO 376 090 47 01
155
SCREW EXHAUST PIPE TO MUFFLER AND TO HEATER UNIT M 8X55
155
SCREW BRACKET AND CLAMP M6X20
161
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
161
NUT HORN TO BRACKET M8
167
BRACKET VACUUM INDICATOR,AIR CLEANER, Replaced By: A3845281540
167
BRACKET VACUUM INDICATOR,AIR CLEANER
170
SCREW BRACKET AND CLAMP M6X20
173
NUT BRACKET TO FIRE WALL
176
LOOM TIE ELECTRIC CABLE MOUNTING
179
SCREWM 10X20
182
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
999
999
COVER
