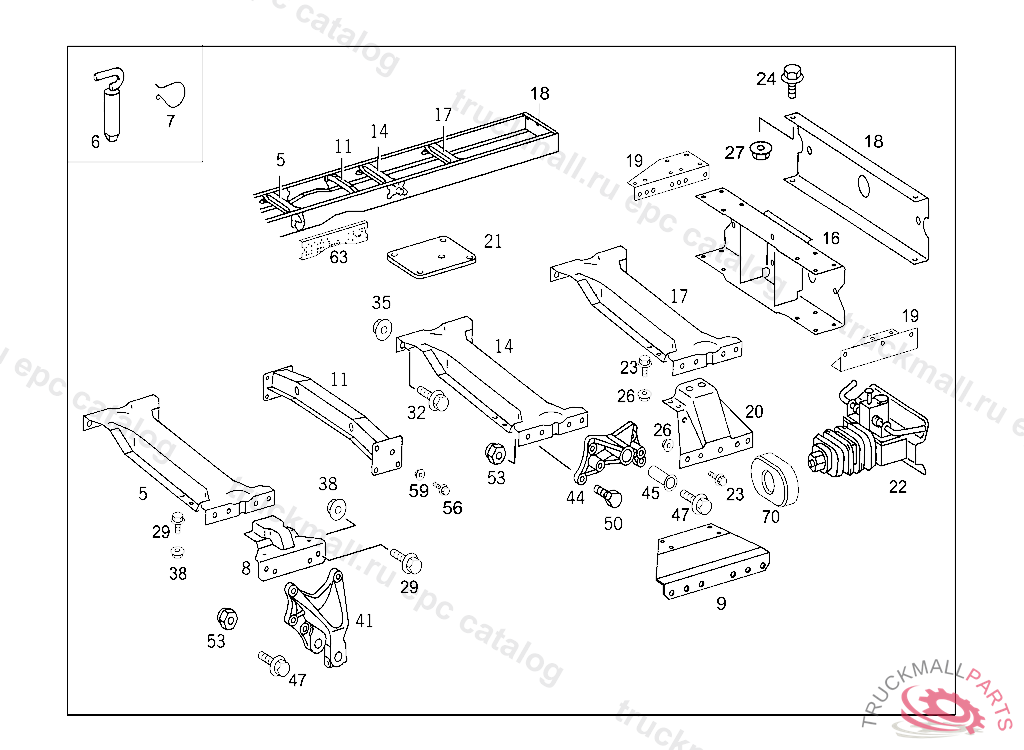

Поз.
Артикул
Описание
5
CROSS MEMBERNO.4
8
STRUTNO.4,5
9
11
14
CROSS MEMBERNO.4
17
CROSS MEMBERNO.4
18
CROSS MEMBER (REAR CROSS MEMBER)
20
REINFORCEMENT
21
MOUNTING PLATE CROSS MEMBER TO SIDE MEMBERS
23
HEXALOBULAR BOLT. SCREW OIL TANK TO STRAP M 10X30
23
SCREW BRACKET TO SIDE MEMBER M10X35
23
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
23
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
23
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
24
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
26
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
26
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
27
NUT BRACKET TO SIDE MEMBER M12X1.5
29
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
29
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
29
HEXALOBULAR BOLT. SCREW OIL TANK TO STRAP M 10X30
32
SCREW GUSSET PLATE TO SIDE MEMBER
35
NUT SUPPORT TO FRAME
38
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
41
REAR SPRING BRACKET (REAR SPRING BRACKET),FRONT
44
SPRING BRACKET (REAR SPRING BRACKET),REAR
45
BUSHING
45
BUSHING
47
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X60
47
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 55
47
HEXAGON HEAD BOLT BRACKET TO SPRING SADDLE M14X1.5X110
50
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 55
50
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X60
50
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M14X1.5X110
50
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
53
NUT STEERING SUPPORT TO FRAME
53
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
53
NUT SUPPORT TO FRAME
56
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
56
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X45
59
NUT SUPPORT TO FRAME
59
NUT BRACKET TO SIDE MEMBER M12X1.5
