Поз.
Артикул
Описание

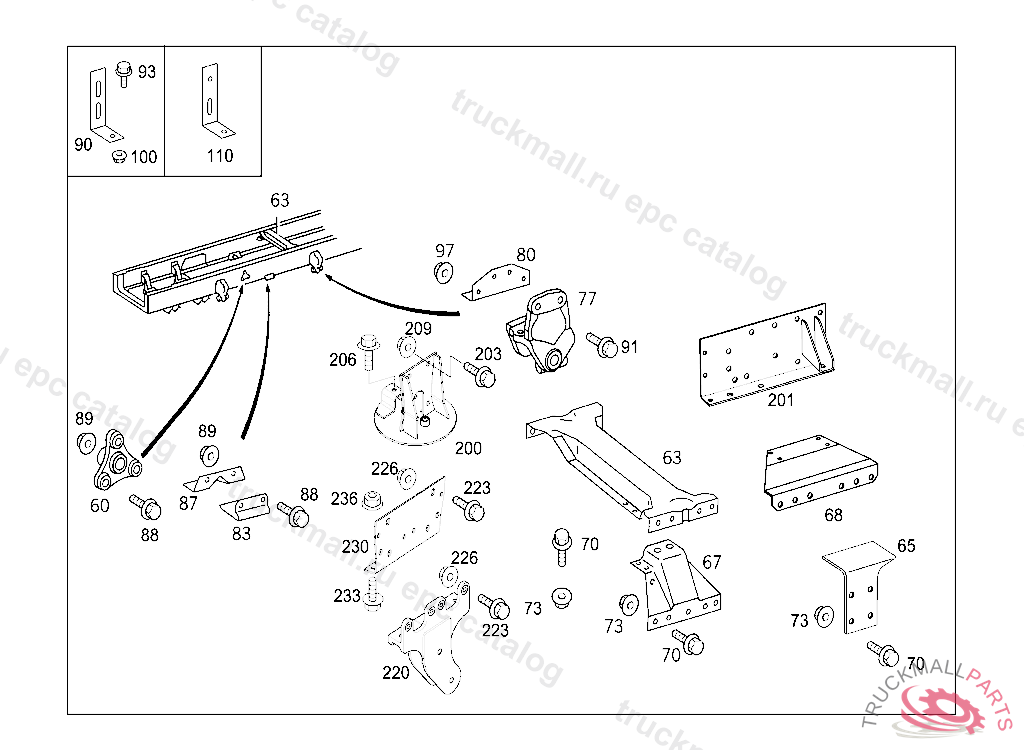

63
CROSS MEMBERNO.4
65
65
70
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
70
SCREW. HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X40
73
NUT SUPPORT TO FRAME
73
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
73
NUT STEERING SUPPORT TO FRAME
77
FRONT SPRING BRACKET FRONT SPRING,FRONT LEFT AND RIGHT, TO BE ADAPTED DURING ASSEMBLY
77
FRONT SPRING BRACKET FRONT AND REAR
80
ANGLE RIGHT REAR
80
ANGLE LEFT REAR
83
STAY FRONT SPRING STOP
87
STAY FRONT SPRING STOP
88
SCREW BRACKET TO SIDE MEMBER M10X35
89
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
91
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X50
91
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
91
SCREW BEARING BRACKET TO SIDE MEMBER
97
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE M16X1.5
97
HEXAGON NUT WHEEL CYLINDER TO BRAKE ANCHOR,DISC BRAKE
97
NUT SUPPORT TO FRAME
