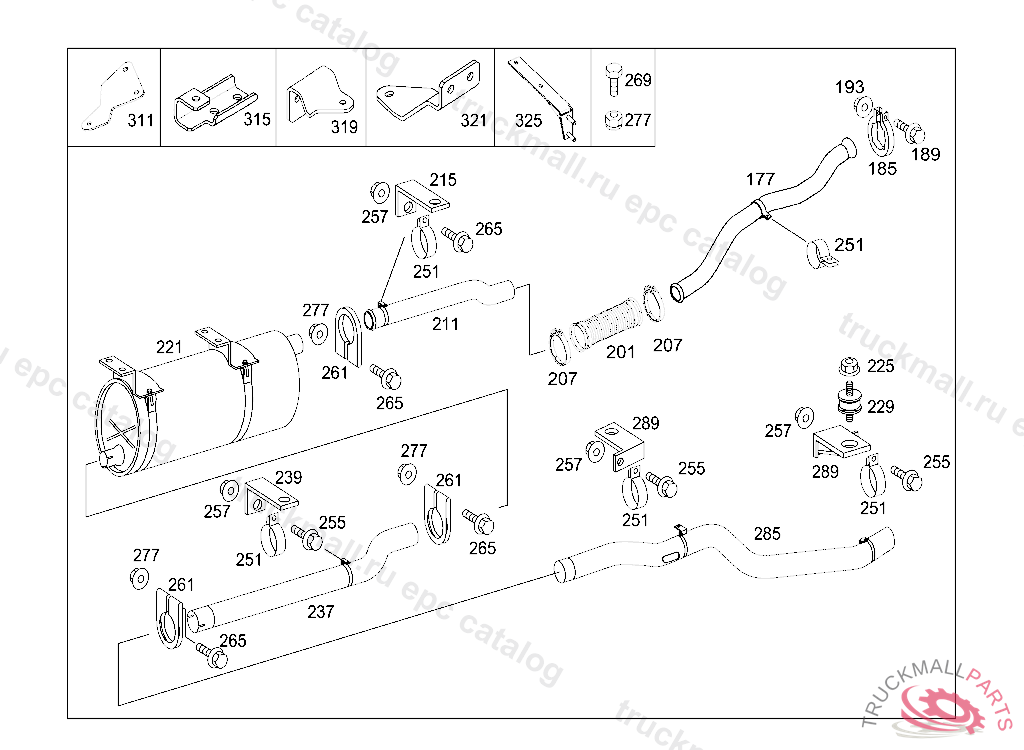

Поз.
Артикул
Описание
177
185
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
189
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
193
NUT HORN TO BRACKET M8
201
207
211
215
221
225
NUT , Replaced By: N913023010002
229
BUFFER
229
229
RUBBER BUFFER FUEL FILTER TO BRACKET
229
RUBBER BUFFER EXHAUST MUFFLER
237
239
251
CLAMP
255
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
255
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
255
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
257
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
257
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
257
NUT BRACKET TO SIDE MEMBER M12X1.5
261
CLAMP EXHAUST PIPE TO MUFFLER
265
HEXAGON HEAD BOLTM8X130,TO A 674 492 00 40
269
SCREWM 10X20
269
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
269
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
277
NUT HORN TO BRACKET M8
285
289
311
315
319
321
325
BRACKET AT MUFFLER
