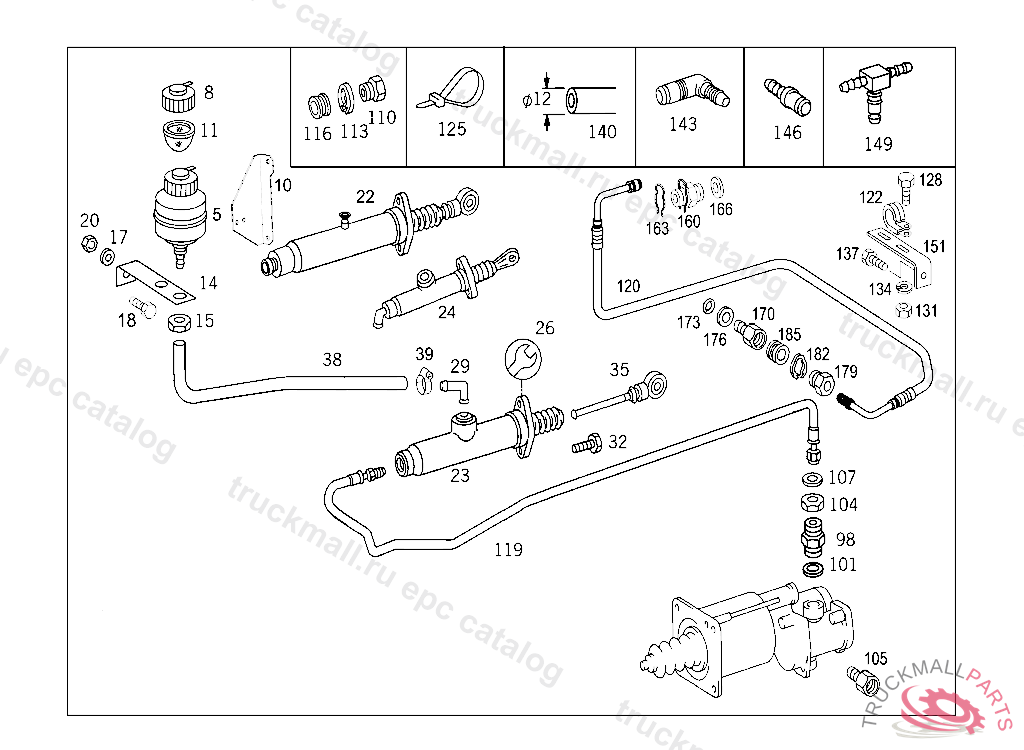

Поз.
Артикул
Описание
5
RESERVOIR FLUID RESERVOIR
8
FILLER CAPTO A 688 431 00 02
11
STRAINER
14
BRACKET
15
NUT BRACKET TO SIDE MEMBER
22
CLUTCH MASTER CYLINDER QUICK-RELEASE
23
MASTER CYLINDERM12X1
23
MASTER CYLINDER CLUTCH M14X1,D 561822
26
REPAIR KIT CLUTCH MASTER CYLINDER TO 388 295 72 06
32
HEXALOBULAR BOLT CLAMP ON BRACKET M6X30
32
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
35
ROD CLUTCH MASTER CYLINDER TO CLUTCH PEDAL,D 561822
35
ROD
35
ROD CLUTCH MASTER CYLINDER TO CLUTCH PEDAL,D 561822
35
ROD CLUTCH MASTER CYLINDER TO CLUTCH PEDAL,D 561821
35
ROD FROM CLUTCH PEDAL TO MASTER CYLINDER 96 MM
35
ROD CLUTCH MASTER CYLINDER TO CLUTCH PEDAL,D 561821
38
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
39
CLAMP LINE CONNECTION
107
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
107
THRUST RING LOCKING VALVE
107
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
116
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
119
119
119
119
120
120
125
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
125
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
140
HOSE , Replaced By: A0009872827
143
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 9 MM, VOSS 232
143
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 9 MM, VOSS 232
143
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
146
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
149
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
160
FITTING PARTS KIT
163
LOCK CLUTCH HOSE
166
SEAL RINGTO 000 553 03 05,000 553 18 05,
170
FITTING QUICK-RELEASE VALVE
173
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
