Поз.
Артикул
Описание

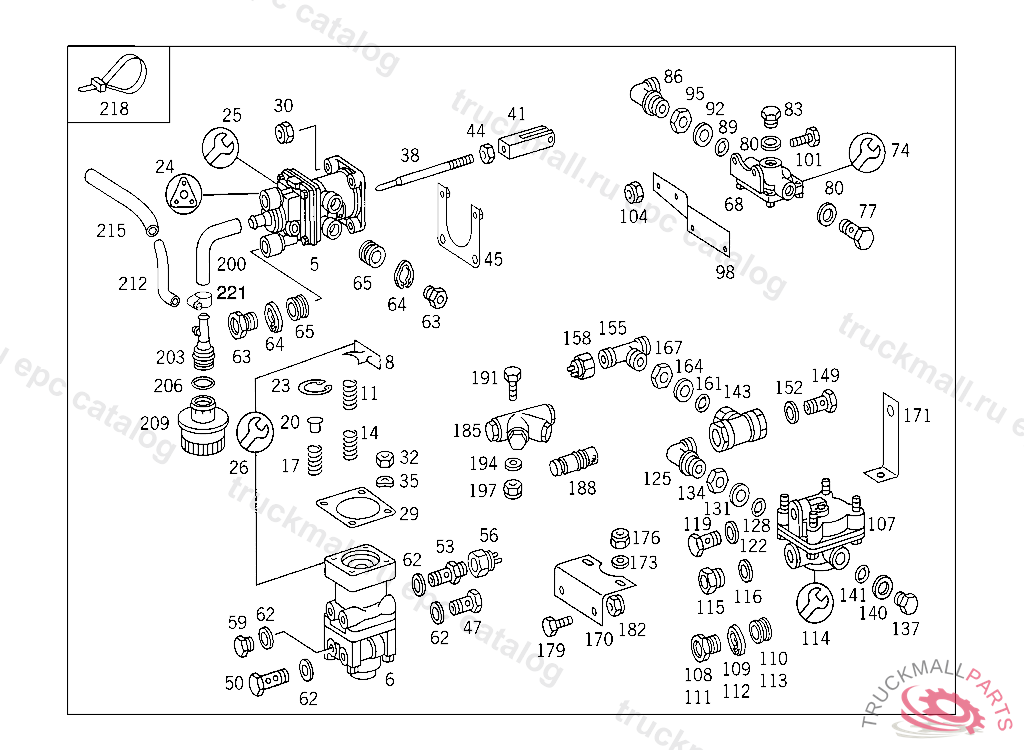

6
BRAKE VALVE SERVICE BRAKE WABCO
6
BRAKE VALVE SERVICE BRAKE KNORR
8
LOCKTO 345 431 70 05
11
SPRINGTO 345 431 70 05
14
SPRINGTO 345 431 70 05
17
SPRINGTO 345 431 71 05
20
PISTONTO 345 431 70 05
20
PISTONTO 345 431 71 05
23
LOCK RING
23
LOCK RING PLANETARY CARRIER
23
LOCK RINGTO 345 431 71 05
23
LOCK RINGTO 345 431 71 05
26
REPAIR KIT , Replaced By: A0014300460
26
REPAIR KIT LARGE SCOPE TO 345 431 70 05
26
REPAIR KIT SMALL SCOPE TO 345 431 70 05
26
REPAIR KIT SMALL SCOPE TO 345 431 71 05
29
GASKET BRAKE SHOE WITH LINING
32
NUT BATTERY CASE
35
SPRING WASHER BRAKE SHOE WITH LINING
38
ROD FROM FITTING TO CLUTCH BOOSTER
41
YOKE
44
NUT FUEL TANK TO SUPPORT
47
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
50
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
53
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
56
SWITCH TWO-CIRCUIT BRAKE VALVE
56
SWITCH EXHAUST BRAKE,K 251255
59
SCREW PLUG
62
SEAL RINGTO 006 997 00 72
68
VALVE QUICK-RELEASE VALVE KNORR
68
VALVE (QUICK BREATHER VALVE) VARGA
68
VALVE (QUICK BREATHER VALVE) WABCO
68
VALVE (QUICK BREATHER VALVE) VARGA
68
VALVE , Replaced By: A6934297144
74
REPAIR KITTO A 364 429 70 44
74
REPAIR KITTOA 382 429 70 44, A 693 429 71 44
77
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
80
SEAL RINGTO 006 997 00 72
83
SCREW PLUG AT TANK
83
SCREW PLUG
86
ELBOW FITTING DIAPHRAGM CYLINDER,CONNECTION: "1,11"
89
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
92
THRUST RING LOCKING VALVE
92
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
92
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
95
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
98
BRACKET QUICK-RELEASE VALVE
101
SCREW BRACKET TO INTAKE MANIFOLD
104
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
107
VALVE (RELAY VALVE),REAR AXLE
107
VALVE (RELAY VALVE) WABCO
114
REPAIR KITTO 003 429 30 44
114
REPAIR KIT SMALL SCOPE TO 001 429 68 44
114
REPAIR KITWABCO
114
REPAIR KITTO 003 429 30 44,KNORR
115
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
116
SEAL RING LINE CONNECTION
119
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
122
SEAL RINGTO 006 997 00 72
125
ELBOW FITTING RELAY VALVE,CONNECTION: "20"
128
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
131
THRUST RING LOCKING VALVE
131
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
131
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
134
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
137
SCREW PLUG
140
SEAL RINGTO 006 997 00 72
143
VALVE (TRAILER CONTROL VALVE) "KNORR"
143
VALVE TWO-WAY
143
VALVE (TRAILER CONTROL VALVE) "KNORR"
149
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
152
SEAL RINGTO 006 997 00 72
155
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
158
SWITCH RELAY VALVE,CONNECTION "2",RIGHT
158
SWITCH
158
SWITCH SUPPLY PRESSURE,5 966147
161
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
164
THRUST RING LOCKING VALVE
164
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
164
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
167
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
170
BRACKET REAR AXLE RELAY VALVE
173
WASHER TRAILER PLUG SOCKET TO BRACKET
176
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
179
SCREW , Replaced By: N304017010002
182
NUT BRACKET TO SIDE MEMBER,XB209706
999
VALVE BODYTO 002 429 95 44
999
DIAPHRAGM ,058011
999
SEAL RING ,058011
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
REPAIR KIT , Replaced By: A0005862842
