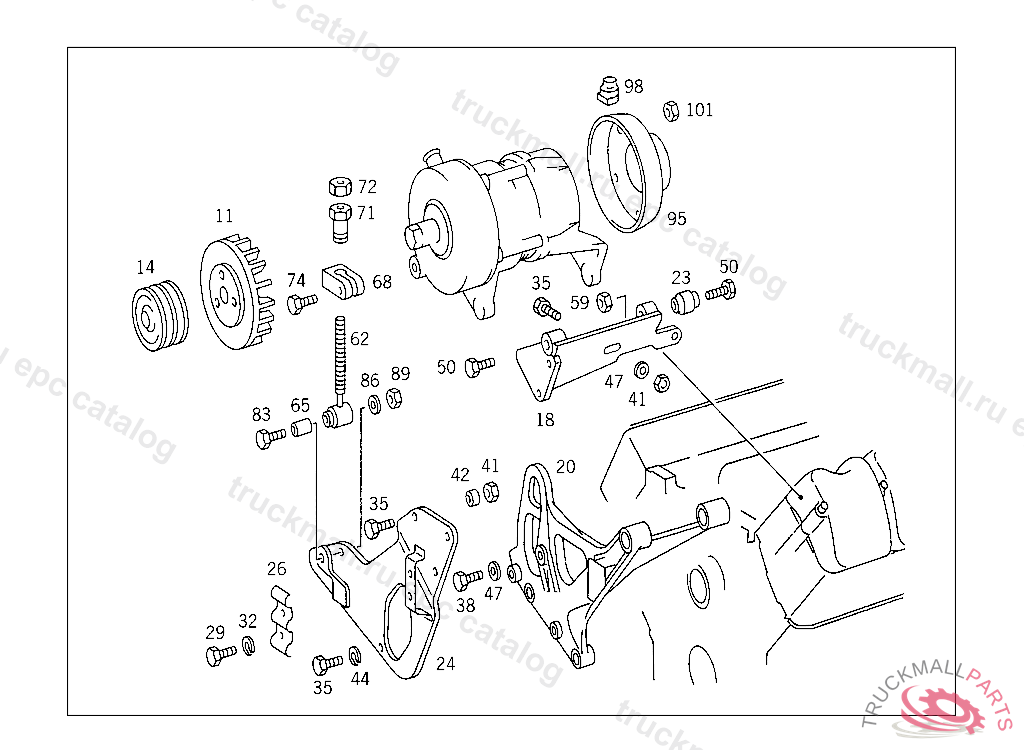

Поз.
Артикул
Описание
11
FAN
14
PULLEY TWO-GROOVE,061992
18
SUPPORT ALTERNATOR
20
SUPPORT ALTERNATOR
23
BUSHING
24
BRACKET ALTERNATOR MOUNTING PLATE, 401-403 263871 421-423 114639
26
CLAMP FUEL LINE, 741959
26
CLAMP FUEL LINE TO SUPPORT
29
SCREW , Replaced By: N000000001479
29
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
32
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
35
SCREW PLATE TO FRAME M 10X45
35
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
35
SCREW BRACKET TO FRAME SIDE MEMBER
35
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
35
HEXAGON HEAD BOLT. SCREW BRACKET TO AIR INTAKE PIPE M 10X45
35
SCREW STRUT TO CROSS MEMBER M 10X25
35
SCREW , Replaced By: N304017010040
35
SCREW , Replaced By: N910105010009
38
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
41
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
41
NUT , Replaced By: N913023010002
42
SPACER TUBE BATTERY POLE CONNECTION
44
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
47
WASHER RADIATOR TO RUBBER MOUNTING
50
HEXAGON HEAD BOLT. SCREW THROTTLE HOUSING TO FRONT EXHAUST PIPE M 12X70
50
HEXAGON HEAD BOLT AIR DEHYDRATOR TO BRACKET M12X55,V 207570
59
NUT PLATFORM MOUNTING
62
CLAMPING BOLT
65
BUSHING
68
CLAMPING PIECE TIGHTENER PULLEY
68
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
68
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
71
NUT ALTERNATOR
74
SCREW LEFT AND RIGHT CONSOLES TO CAB
74
SCREW , Replaced By: N308676012015
83
SCREW HOLLOW RUBBER SPRING TO CAB,5 956658
83
SCREW
83
SCREW , Replaced By: N304017010051
83
SCREW , Replaced By: N304017010049
86
WASHER RADIATOR TO RUBBER MOUNTING
89
NUT , Replaced By: N913023010002
89
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
95
COVER
98
GASKET
101
NUT BALL PIVOT TO LEVER
999
SPRING WASHER LICENSE PLATE TO BRACKET
