Mercedes A3604280243 - Кронштейн

OM 421 A 421.951 MANNHEIM

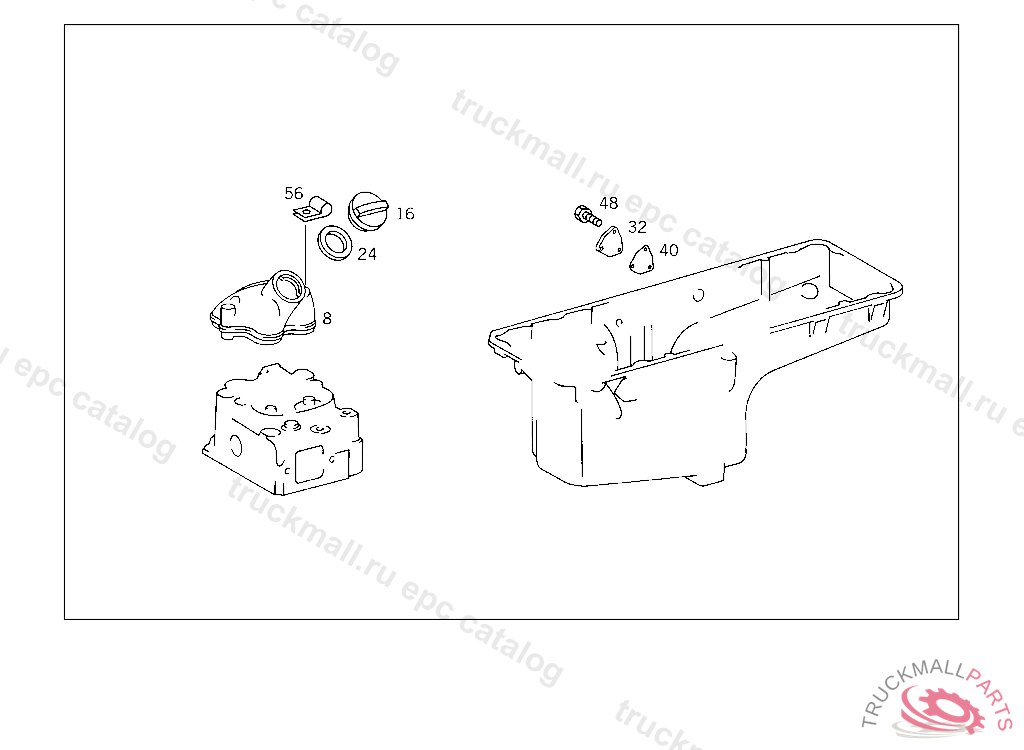

01 ENGINE HOUSING - 001 CYLINDER HEAD COVER WITH OIL FILLER NECK

Поз.
Артикул
Описание
8
A4420100030
CYLINDER HEAD COVER WITH CONNECTION PIPE SOCKET TO COVER
8
A4030160805
CYLINDER HEAD COVER WITH OIL FILLER,013688-076953
16
A0000180702
CAP OIL REFILLING
16
A0000181102
CAP OIL FILLING
16
A3520100168
CAP , Replaced By: A0000180702
24
A3520180180
GASKETTO 352 010 01 68
24
A1020180080
GASKET , Replaced By: A1020180380
24
A1020180380
GASKET
24
A0000180180
GASKET , Replaced By: A1020180080
32
A4030140345
FLANGE
40
A4420180080
GASKET OIL FILLER NECK
48
A0069909301
SCREW BRACKET TO APPARATUS SUPPORT
56
A1369950701
BEFESTIGUNGSSCHELLE. CLAMP OIL NOZZLE TO CYLINDER CRANKCASE
999
A5060100230
CYLINDER HEAD COVER WITH OIL FILLER NECK, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
A4420160505
CYLINDER HEAD COVER
999
A4420100064
OIL FILLER NECK
999
A3604280243
ANGLE LINE MOUNTING
999
A1020180080
GASKET , Replaced By: A1020180380
