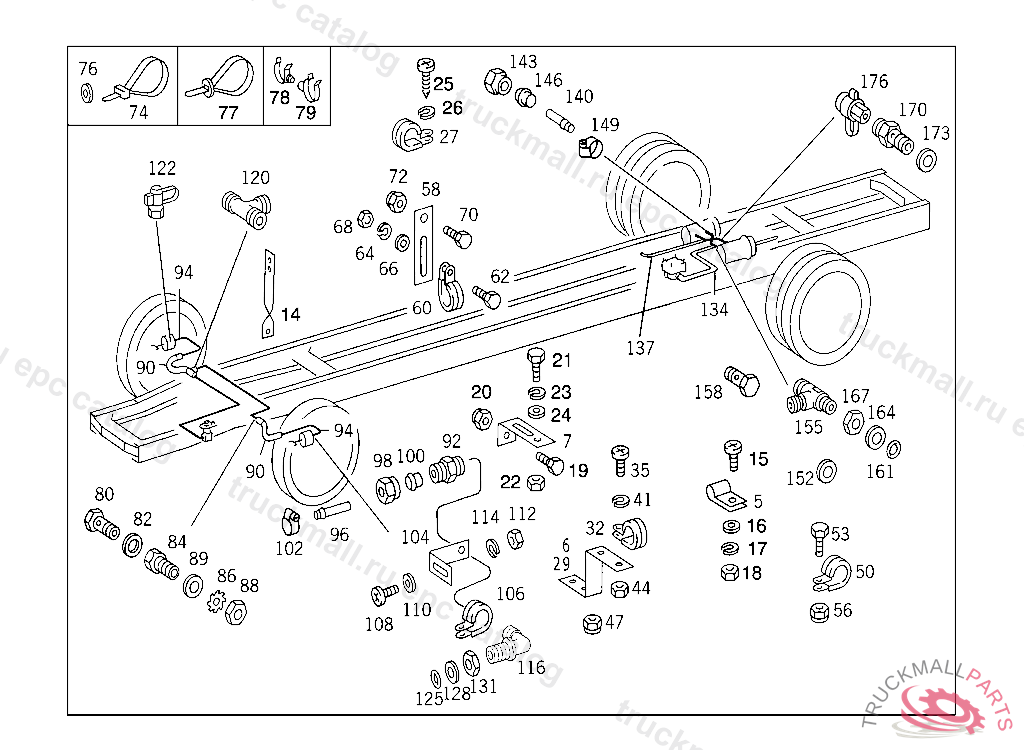

Поз.
Артикул
Описание
5
CLAMP , Replaced By: A3129952420
15
SCREW CAP TO BRACKET
16
WASHER PLUG SOCKET TO BRACKET
17
LOCK WASHER CABLE TO FUSE BOX
18
NUT
25
SHEET METAL SCREW6.3X16
26
LOCK WASHER CABLE TO FUSE BOX
27
CLAMP
27
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
74
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
74
LOOM TIE AIR INTAKE HOSE TO CLAMP
74
LOOM TIE ELECTRIC CABLE MOUNTING
74
LOOM TIE , Replaced By: A0019978490
76
WASHER BRACKET TO LEFT SIDE MEMBER
76
WASHER TRAILER PLUG SOCKET TO BRACKET
76
WASHER , Replaced By: A3609902340
77
LOOM TIE LINE MOUNTING
80
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
82
SEAL RINGTO 006 997 00 72
84
ADAPTER FITTING , Replaced By: A0004296934
86
TOOTHED WASHER SENDER UNIT TO BRACKET
88
NUT BRACKET TO SIDE MEMBER
90
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
90
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
90
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
90
BRAKE HOSE FROM QUICK-RELEASE VALVE TO COMBINATION CYLINDER,RIGHT
90
BRAKE HOSE , Replaced By: A3844207248
92
CONNECTION FITTING
92
FITTING BRAKE HOSE TO COMPRESSED AIR LINE
94
LINE RIGHT FRONT WHEEL BRAKE CYLINDER 12X1 MM
94
LINE FROM FITTING TO DIAPHRAGM CYLINDER,D 063242
94
LINE LEFT FRONT WHEEL BRAKE CYLINDER 12X1 MM
96
FITTING
96
FITTING
98
UNION NUT LINE CONNECTION, Replaced By: N000000006239
100
GLAND , Replaced By: A0019901967
102
CLAMP HOSE TO FITTING AND TO OIL TANK
104
BRACKET COMPRESSED AIR LINE TO BRAKE CYLINDER
104
BRACKET COMPRESSED AIR LINE, BRAKE
106
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
106
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
108
SCREW CAP TO BRACKET
110
WASHER PLUG SOCKET TO BRACKET
112
NUT
114
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
116
ELBOW FITTING DIAPHRAGM CYLINDER,CONNECTION: "1,11"
120
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
122
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
122
TEST CONNECTION TIRE INFLATING CONNECTION KNORR
125
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
128
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
128
THRUST RING LOCKING VALVE
128
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
131
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
134
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
134
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
134
BRAKE HOSE FROM QUICK-RELEASE VALVE TO COMBINATION CYLINDER,RIGHT
134
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
134
BRAKE HOSE , Replaced By: A3844207248
137
BRAKE HOSE FROM COMPRESSED AIR LINE TO REAR WHEEL BRAKE CYLINDER,D 030552
137
BRAKE HOSE FROM COMPRESSED AIR LINE TO REAR WHEEL BRAKE CYLINDER,D 030552
137
BRAKE HOSE FROM COMPRESSED AIR LINE TO REAR WHEEL BRAKE CYLINDER,D 030552
140
FITTING
143
UNION NUT LINE CONNECTION, Replaced By: N000000006239
146
GLAND , Replaced By: A0019901967
149
CLAMP , Replaced By: N916017011001
149
CLAMP HOSE TO FITTING AND TO OIL TANK
152
SEAL RINGTO 006 997 00 72
155
T-FITTING AIR RESERVOIR,CONNECTION: "31"
155
T-FITTING TRAILER CONTROL VALVE,CONNECTION: "1"
158
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
161
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
164
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
164
THRUST RING LOCKING VALVE
164
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
167
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
170
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
173
SEAL RINGTO 006 997 00 72
176
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
176
TEST CONNECTION
176
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
176
TEST CONNECTION TIRE INFLATING CONNECTION KNORR
