Поз.
Артикул
Описание

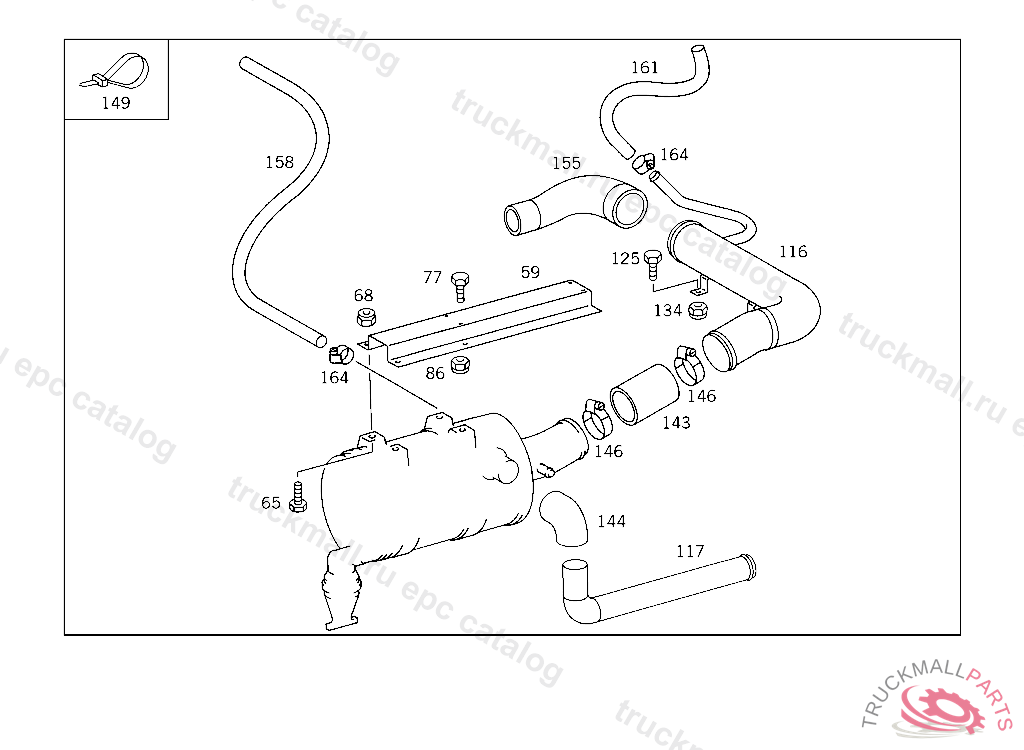

59
BRACKET AIR CLEANER TO SUPPORT
65
SCREW ANGLE TO CROSS MEMBER M 10X30
65
SCREW BRACKET TO SIDE MEMBER
65
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
68
NUT , Replaced By: N910113010000
68
NUT , Replaced By: N910113010000
77
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
77
SCREW COLD START SYSTEM TO BRACKET
86
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
116
AIR INTAKE PIPE
117
AIR INTAKE PIPE ,D 100906
125
SCREW STEERING SHAFT BEARING TO CAB M 8X20
134
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
143
HOSE
144
HOSE AIR INTAKE PIPE TO AIR CLEANER,D 100906
146
CLAMP
146
CLAMP100-120
149
LOOM TIE ELECTRIC CABLE MOUNTING
149
LOOM TIE , Replaced By: A3459977390
155
HOSE AIR INTAKE PIPE TO TURBOCHARGER
158
HOSE FROM AIR CLEANER TO AIR COMPRESSOR
161
HOSE FROM AIR INTAKE PIPE TO BREATHER VALVE, NOT USED
164
LOOM TIE AS REQUIRED
164
LOOM TIE AS REQUIRED
999
CLAMP HOSE TO FILLER NECK
999
CLAMP EXPANSION TANK
999
LOCKING CAP AIR COMPRESSOR
999
HOSE FROM AIR CLEANER TO AIR COMPRESSOR
