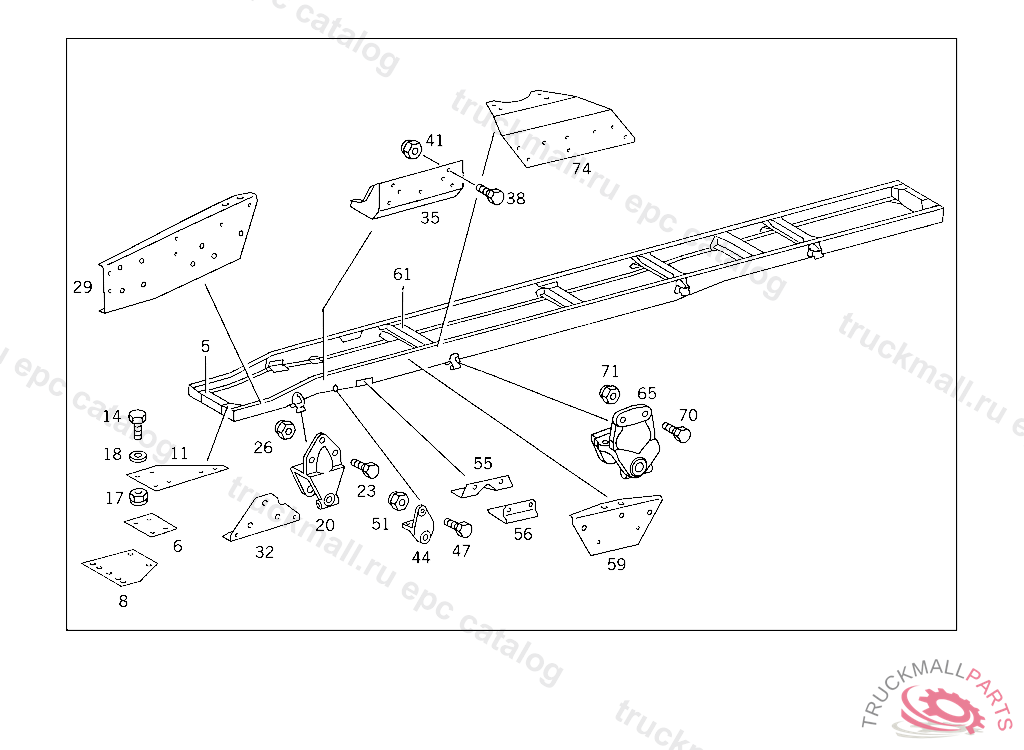

Поз.
Артикул
Описание
5
ENGINE CROSS MEMBERNO.1
11
GUSSET PLATE LEFT
11
GUSSET PLATE RIGHT
14
SCREW BRACKET TO SIDE MEMBER
14
SCREW , Replaced By: N308676014012
17
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
17
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
20
FRONT SPRING BRACKET
23
SCREWM 14X14X22X40
26
NUT BRACKET TO SIDE MEMBER
32
STAY
32
REINFORCEMENT (FRONT SPRING BRACKET),FRONT
35
CONSOLE , 390.001,031 A 099200 390.002,032 A 099381 390.012 A 099417 390.013 A 099300
38
SCREW SUPPORT TO FRAME M12X1,5X35,D 127794
41
NUT ALTERNATOR TO SUPPORT
55
STAY
56
STAY
61
CROSS MEMBER , Replaced By: A3843127225
61
CROSS MEMBERNO. 5+6
65
FRONT SPRING BRACKET FRONT AND REAR
74
REINFORCEMENT LEFT,FRONT SPRING REAR BRACKET
74
REINFORCEMENT RIGHT,FRONT SPRING REAR BRACKET
