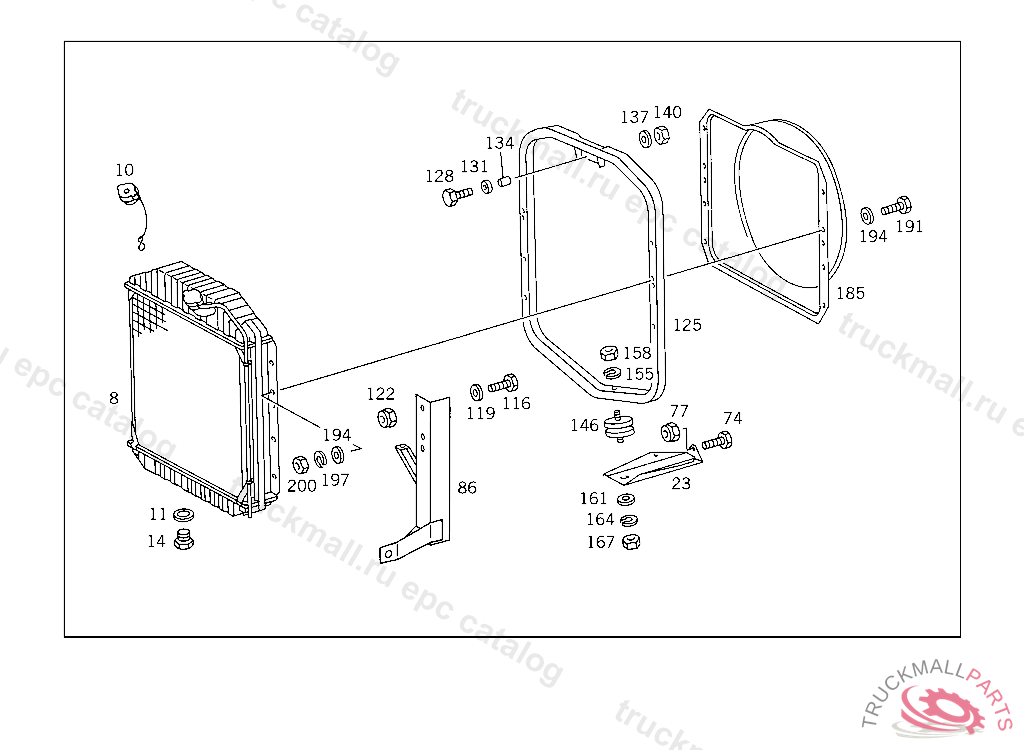

Поз.
Артикул
Описание
8
RADIATOR , Replaced By: A3445017001
8
RADIATOR , Replaced By: A3445017001
10
RADIATOR CAP
11
SEAL RING
14
SCREW PLUG WATER DRAIN
23
SUPPORT
74
SCREW BRACKET TO SIDE MEMBER
77
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
86
86
86
BRACKET RADIATOR,LEFT
116
SCREW 3/2-WAY VALVE TO BRACKET M8X55
116
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
116
SCREW DAMPING PAD TO SUPPORT M 8X45,B 884219
119
WASHER TRAILER PLUG SOCKET TO BRACKET
122
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
125
SUPPORT
125
128
SCREW STEERING SUPPORT TO FRAME M 10X75
131
RUBBER RING SHOCK ABSORBER MOUNTING
134
SPACER TUBE RADIATOR STRUT TO SUPPORT AND TO CAB
137
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
140
NUT OIL COOLER TO BRACKET,TOP
146
RUBBER MOUNTING TRANSMISSION TO INTERMEDIATE RING
155
LOCK WASHER , Replaced By: N912004010102
158
NUT BRACKET TO RETARDER
161
WASHER GROUND CABLE
164
LOCK WASHER , Replaced By: N912004010102
167
NUT BRACKET TO RETARDER
185
FAN SHROUD
191
SCREW , Replaced By: A4609900601
194
WASHER PULL ROD TO SHIFT LEVER
197
LOCK WASHER TAIL LAMP TO BRACKET
200
NUT
