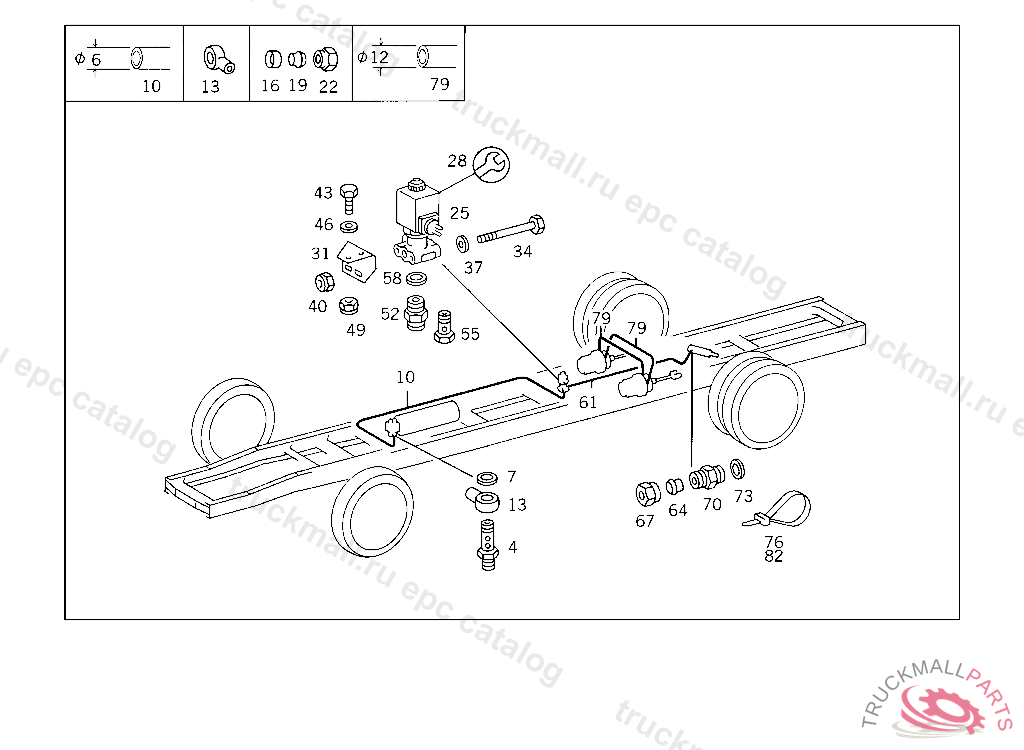

Поз.
Артикул
Описание
4
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
4
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
7
SEAL RINGTO 006 997 00 72
10
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
13
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
13
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM
16
SLEEVE LEAK LINE
19
GLAND , Replaced By: A0019901667
22
UNION NUT
25
VALVE 3/2-WAY VALVE
25
VALVE 3/2-WAY VALVE
25
VALVE (SOLENOID VALVE) WABCO
25
VALVE , Replaced By: A0029975836
28
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
31
BRACKET THREE-WAY VALVE
34
SCREW VALVE TO BRACKET
37
WASHER TRAILER PLUG SOCKET TO BRACKET
40
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
43
SCREW PLUG SOCKET TO FRAME
46
WASHER TRAILER PLUG SOCKET TO BRACKET
49
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
52
SCREW-IN FITTING ,D 091465
52
CONNECTOR SOLENOID VALVE,CONNECTION: "2" TOA388 997 81 36 / 88 36
55
HOLLOW SCREW HEATING CONNECTION
58
SEAL RING LINE CONNECTION
61
BRAKE HOSE , Replaced By: N071435006002
61
HOSE , Replaced By: N071435006002
61
HOSE (QUICK BREATHER VALVE)
61
BRAKE HOSE FROM FITTING TO VALVE
64
GLAND LINE CONNECTION
64
GLAND , Replaced By: A0019901667
67
UNION NUT LINE CONNECTION
67
UNION NUT
70
CONNECTOR SOLENOID VALVE,CONNECTION: "2" TOA388 997 81 36 / 88 36
70
FITTING LINE CONNECTION, Replaced By: N000000006446
70
SCREW-IN FITTING LINE CONNECTION
73
SEAL RING LINE CONNECTION
76
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
79
PLASTIC PIPE FRONT AXLE PNEUMATIC SUSPENSION 12X9 MM, ORDER BY THE METER
79
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
79
HOSE , Replaced By: A0009872827
82
LOOM TIE , Replaced By: A3459977390
82
LOOM TIE ELECTRIC CABLE MOUNTING
