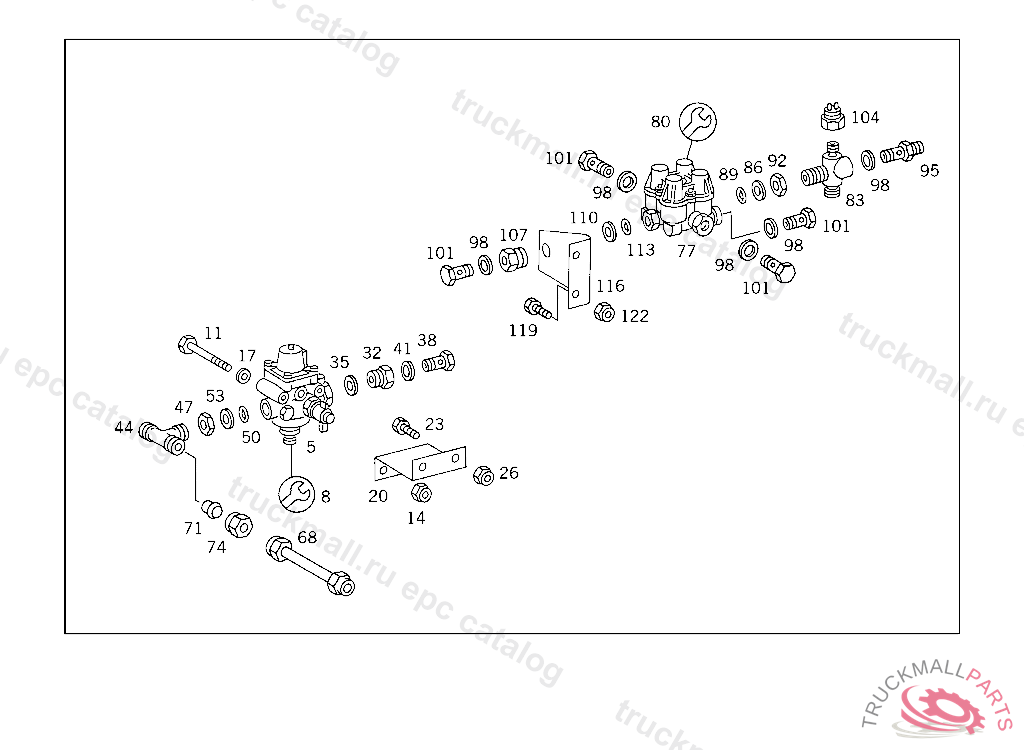

Поз.
Артикул
Описание
5
PRESSURE REGULATOR , Replaced By: A0024318306
5
PRESSURE REGULATOR , Replaced By: A0024314906
5
PRESSURE REGULATOR , Replaced By: A0024314306
5
PRESSURE REGULATORKNORR,5 7999995 800000 - 5 8127305 900000 - 5 936365
5
PRESSURE REGULATOR , Replaced By: A0024314906
8
REPAIR KITTO 001 431 98 06
8
REPAIR KIT , Replaced By: A0004301107
8
REPAIR KITTO 002 431 83 06
8
REPAIR KITTO 001 431 12 06, KNORR 3200
11
SCREW PRESSURE REGULATOR TO BRACKET M 8X75
14
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
17
WASHER TRAILER PLUG SOCKET TO BRACKET
20
BRACKET PRESSURE REGULATOR
20
BRACKET , Replaced By: A3944207086
23
SCREW , Replaced By: N304017010002
26
NUT BRACKET TO SIDE MEMBER,XB209706
32
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
35
SEAL RING LINE CONNECTION
38
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
38
HOLLOW SCREW FUEL LINE TO TANK,659794
41
SEAL RINGTO 006 997 00 72
44
T-FITTING PRESSURE REGULATOR,CONNECTION: "1"
47
NUT CHECK VALVE TO AIR RESERVOIR
50
O-RING CHECK VALVE TO AIR RESERVOIR
53
THRUST RING CHECK VALVE TO AIR RESERVOIR
53
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
68
LINE FROM PRESSURE REGULATOR TO T-FITTING
71
GLAND , Replaced By: A0019901667
74
UNION NUT
77
VALVE , Replaced By: A0024314006
77
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 087820, Replaced By: A0034315006
77
VALVE , Replaced By: A3454317406
77
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) KNORR
77
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) WABCO
80
REPAIR KITTO 345 431 74 06
80
REPAIR KITTO 002 431 01 06
80
REPAIR KITTO 002 431 01 06
80
REPAIR KITTO 001 431 30 06
80
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE
83
CONNECTOR FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
86
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
89
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
92
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
95
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
98
SEAL RINGTO 006 997 00 72
101
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
104
SWITCH RELAY VALVE,CONNECTION "2"
104
SWITCH SUPPLY PRESSURE,5 966147
104
SWITCH RELAY VALVE,CONNECTION "2",RIGHT
104
SWITCH FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "23"
107
FITTING AIR RESERVOIR,CONNECTION: "11"
110
THRUST RING CHECK VALVE TO AIR RESERVOIR
110
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
113
O-RING CHECK VALVE TO AIR RESERVOIR
116
BRACKET FOUR-CIRCUIT PROTECTIVE VALVE
119
SCREW SUPPORT TO FRAME M12X1,5X35,D 127794
122
NUT BRACKET TO SIDE MEMBER
999
REPAIR KIT VALVE KIT WABCO,5 148812
999
REPAIR KIT SEAL RING BOSCH,209
999
REPAIR KIT DIAPHRAGM PART BOSCH,209
