Поз.
Артикул
Описание

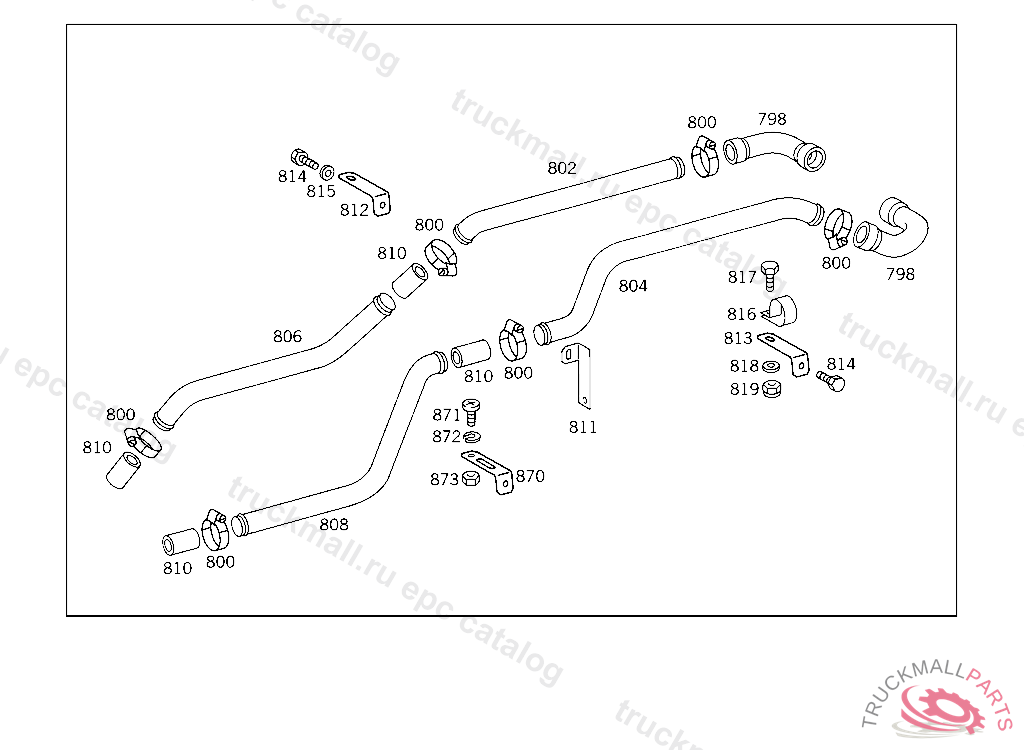

798
HOSE LINES TO ENGINE
800
LOOM TIE. CLAMP FEED, FROM ENGINE TO RETARDER
800
CLAMP HOSE FASTENING 50-70X13 MM
800
CLAMP , Replaced By: N000000000672
802
COOLING WATER PIPE FEED, FROM ENGINE TO RETARDER
804
COOLING WATER PIPE LINE TO RETARDER
806
COOLING WATER PIPE FEED LINE TO RETARDER
808
LINE LINE TO RETARDER
808
LINE LINE TO RETARDER
810
HOSE LINE TO RETARDER
810
HOSE LINE TO RETARDER
811
BRACKET LINE TO RETARDER
812
BRACKET LINE TO RETARDER
813
BRACKET LINE TO RETARDER
814
SCREW BRACKET TO CHARGING AIR INTERCOOLER
814
SCREW BRACKET TO INTAKE MANIFOLD
815
WASHER BRACKET TO INTAKE MANIFOLD
816
CLAMP LINE TO BRACKET
817
SCREW MOUNTING CLAMP TO BRACKET AND TO FRAME
818
WASHER TRAILER PLUG SOCKET TO BRACKET
819
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
870
BRACKET POS. CABLE,XB209706
871
SCREW CAP TO BRACKET
872
LOCK WASHER CABLE TO FUSE BOX
873
NUT
999
HOLLOW SCREW , Replaced By: N915036010108
999
BANJO UNION
999
NUT , Replaced By: N910113014000
999
SEAL RING FUEL LINE TO FEED PUMP
999
SCREW BATTERY CASE
999
NUT FUEL TANK TO SUPPORT
999
WASHER SUPPORT TO FRAME,D 127794
999
SENDER UNIT FUEL GAUGE
999
CAP STEERING WHEEL TO A 695 464 70 01, .......INO.9985I I I II I
999
FILLER CAP , Replaced By: A3888937003
999
BRACKET DISTRIBUTOR
999
PANELLING RADIATOR,FRONT,B 884220
999
EXHAUST PIPE FRONT EXHAUST PIPE TO MUFFLER,B 884219
999
LINE FROM OIL TANK TO SUCTION LINE
999
LINE FROM PUMP TO HIGH PRESSURE HOSE
999
BRACKET
999
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 15 MM
999
LINE , Replaced By: A6824208836
999
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 15 MM,B 936133
999
PROTECTIVE PLATE COMPRESSED AIR LINES
999
BUFFER REFRIGERANT LINE TO CAB
999
LOCK
999
SCREW , NOT USED
999
WASHER
999
SENDER UNIT
999
LINE
999
SCREW
999
LINE
999
HOLLOW SHAFT
999
HOSE
999
SHIFTING ROD AIR SPRING VALVE TO BRACKET
999
LINE SUCTION LINE TO OIL PUMP
999
SWITCH
999
FUEL TANK , Replaced By: A3884706901, +001A0004700605
999
BRACKET LINE TO REAR AXLE, NOT USED
999
PAD FUEL TANK TO CONSOLE
999
LINE FROM PUMP TO HIGH PRESSURE HOSE
999
LINE ,B 936133
999
LOCKING SPRING COUPLING PIN
999
BRACKET BREATHER LINE TO REAR AXLE
999
CONSOLE FUEL TANK,FRONT AND REAR
999
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 15 MM,1B 936133
999
SPRING LEAF CAB SUSPENSION
999
SNAP RING
999
SPACER RING
999
SCREW
999
COUPLER RETARDER
999
FLEXIBLE SHAFT RETARDER
999
SUPPORT
999
LINE
999
LINE
999
RET ELECTRONICS
999
SCREW
999
SCREW
999
VALVE
999
LINE FROM FITTING TO PRESSURE REGULATOR
999
LINE FROM FITTING TO CONNECTION FITTING
999
ROD
999
ROD
999
CROSS MEMBERNR.8, NOT USED
999
CROSS MEMBER
999
CROSS MEMBER
999
FRAME
999
THROTTLE HOUSING EXHAUST BRAKE
999
LOCKING CAP AIR COMPRESSOR
999
CLAMP , Replaced By: A6739950001
999
FITTING POWER STEERING PUMP M16X1,5/M22X1,5,D 084765
999
REINFORCEMENT BRACKET TO CROSS MEMBER,024208
999
FITTING SOLENOID VALVE,CONNECTION: "2"
999
LOOM TIE LINE TO BRACKET 508 MM
999
SHIM BRAKE ANCHOR
999
STRAP FUEL TANK TO SUPPORT
999
LINE FROM HOSE TO POWER STEERING PUMP
999
BRACKET COMPRESSED AIR LINE, BRAKE
999
CONNECTOR AIR RESERVOIR
999
CLAMP HOSE TO FILLER NECK
999
LINE FROM HOSE TO OIL PUMP
999
LINE FROM OIL PUMP TO HIGH PRESSURE HOSE
999
BRACKET AT CROSS MEMBER
999
CLAMP , Replaced By: A1109950401
999
BRACKET AT CROSS MEMBER,D 030553
999
CLAMP , Replaced By: A3129952420
999
SCREW AIR RESERVOIR
999
MUFFLER (INTAKE MUFFLER)
999
FITTING DELIVERY LINE TO PUMP
999
FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
BANJO UNION AIR RESERVOIR, NOT USED
999
TEST CONNECTION
999
DISTRIBUTOR EXHAUST BRAKE VALVE LINE CONNECTION
