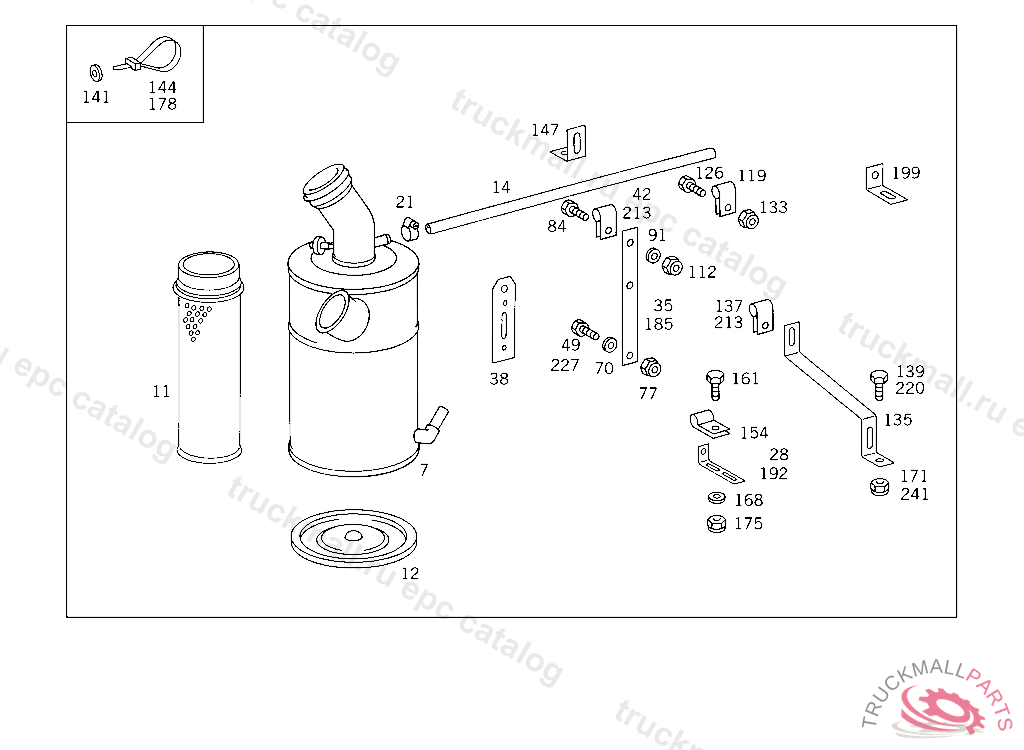

Поз.
Артикул
Описание
7
AIR CLEANER
7
AIR CLEANER , Replaced By: A4760907401
7
AIR CLEANER
7
AIR CLEANER
11
FILTER ELEMENT SAFETY CARTRIDGE
12
COVER AIR CLEANER
14
HOSE FROM AIR CLEANER TO REAR EXHAUST PIPE T-FITTING
14
HOSE , Replaced By: A3450947382
14
HOSE , Replaced By: A3885288982
14
HOSE FROM AIR CLEANER TO REAR EXHAUST PIPE T-FITTING
14
HOSE AIR CLEANER
14
HOSE FROM AIR CLEANER TO REAR EXHAUST PIPE T-FITTING, TO BE ADAPTED DURING ASSEMBLY
14
HOSE AIR CLEANER
14
HOSE FROM AIR CLEANER TO REAR EXHAUST PIPE T-FITTING, TO BE ADAPTED DURING ASSEMBLY
14
HOSE FROM AIR CLEANER TO REAR EXHAUST PIPE T-FITTING, NOT USED
14
HOSE , Replaced By: A3865289882
14
HOSE FROM AIR CLEANER TO REAR EXHAUST PIPE T-FITTING
14
HOSE FROM AIR CLEANER TO REAR EXHAUST PIPE T-FITTING, NOT USED
14
HOSE FROM AIR CLEANER TO REAR EXHAUST PIPE T-FITTING
14
HOSE FROM AIR CLEANER TO REAR EXHAUST PIPE T-FITTING, TO BE ADAPTED DURING ASSEMBLY
14
HOSE FROM AIR CLEANER TO REAR EXHAUST PIPE T-FITTING, TO BE ADAPTED DURING ASSEMBLY
21
LOOM TIE AS REQUIRED
21
LOOM TIE AS REQUIRED
21
CLAMP AS REQUIRED
28
BRACKET BRACKET TO CROSS MEMBER
35
BRACKET HOSE TO ENGINE SUPPORT
38
BRACKET HOSE TO ENGINE SUPPORT
42
CLAMP
42
CLAMP
42
CLAMP
49
SCREW CONSOLE TO BRACKET M 12X1.5X25,20 L
49
SCREW BATTERY CASE TO SIDE MEMBER
49
SCREW BRACKET TO FRAME
70
WASHER SUPPORT TO FRAME,D 127794
77
NUT ALTERNATOR TO SUPPORT
77
NUT , Replaced By: N910113014000
84
SCREW PLUG SOCKET TO FRAME
84
SCREW OVERLOAD PROTECTOR TO BRACKET
84
SCREW CLAMP TO BRACKET
91
WASHER PLUG SOCKET TO BRACKET
112
NUT PUMP TO BRACKET
112
NUT BRACKET TO SIDE MEMBER
119
CLAMP
126
SCREW CLAMP TO BRACKET
133
NUT PUMP TO BRACKET
135
BRACKET HOSE TO SIDE MEMBER
137
CLAMP
139
SCREW BRACKET TO SIDE MEMBER M 12X40
139
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
141
WASHER , Replaced By: A3609902340
144
LOOM TIE LINE MOUNTING
147
BRACKET FUEL LINE
154
CLAMP
154
CLAMP
161
SCREW CLAMP TO BRACKET
161
SCREW CLAMP TO BRACKET
168
WASHER PLUG SOCKET TO BRACKET
168
WASHER PLUG SOCKET TO BRACKET
171
NUT ALTERNATOR TO SUPPORT
175
NUT PUMP TO BRACKET
175
NUT PUMP TO BRACKET
178
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
185
BRACKET HOSE TO ENGINE SUPPORT
192
BRACKET BRACKET TO CROSS MEMBER
199
BRACKET , Replaced By: A3464296040
213
CLAMP
220
SCREW BRACKET TO SIDE MEMBER
227
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X35
227
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
241
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
999
AIR CLEANERPICLON MANN
999
AIR CLEANER , NOT USED
999
AIR CLEANERPICLON FRAM
999
BRACKET HOSE TO SIDE MEMBER, NOT USED
999
HOSE AIR CLEANER
