Поз.
Артикул
Описание
5

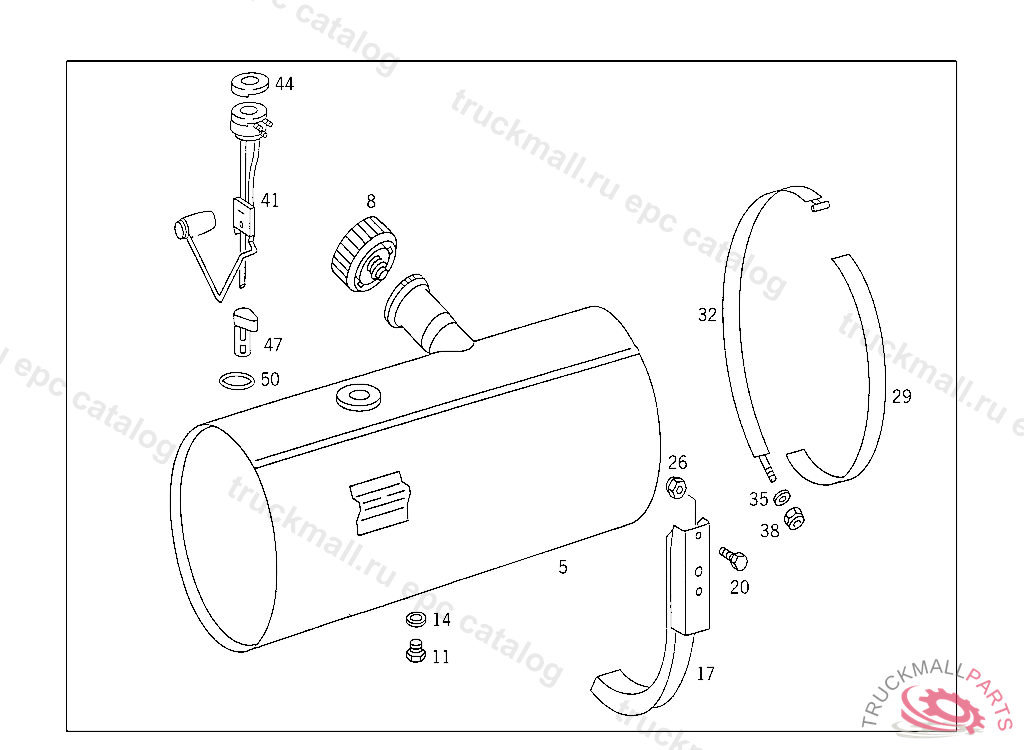

FUEL TANK210 L,B 899980
8
FILLER CAP LOCKABLE "TAMPAS CLICK",1B 901863
8
FILLER CAP KEY LOCKING
11
SCREW PLUG AT TANK
14
SEAL RING AT TANK
17
SUPPORT FUEL TANK
20
SCREW BATTERY CASE
20
SCREW BATTERY CASE TO SIDE MEMBER
26
NUT , Replaced By: N910113014000
29
PAD SUPPORT TO SIDE MEMBER
29
SHIM FUEL TANK TO CONSOLE 60 MM
32
STRAP FUEL TANK TO SUPPORT
32
STRAP , Replaced By: A3864707340, +002A6884757120
35
WASHER SUPPORT TO FRAME,D 127794
38
NUT FUEL TANK TO SUPPORT
41
SENDER UNIT"VDO"
41
SENDER UNIT
44
COVERING AT SENDER UNIT TO 386 542 78 17
44
COVERING AT SENDER UNIT TO 386 542 74 17
47
FUEL STRAINER FUEL TANK,K 169122
50
SEAL RING AT WATER PUMP
50
SEAL RING , Replaced By: A0249972848
50
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0209971148
999
FUEL STRAINERTO 386 542 78 17, 79 17
999
FUEL STRAINERTO 386 542 74 17
999
HOSE FEED LINE AND RETURN LINE
999
FILLER CAP
999
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
999
CLAMP , Replaced By: N916017011001
