Поз.
Артикул
Описание

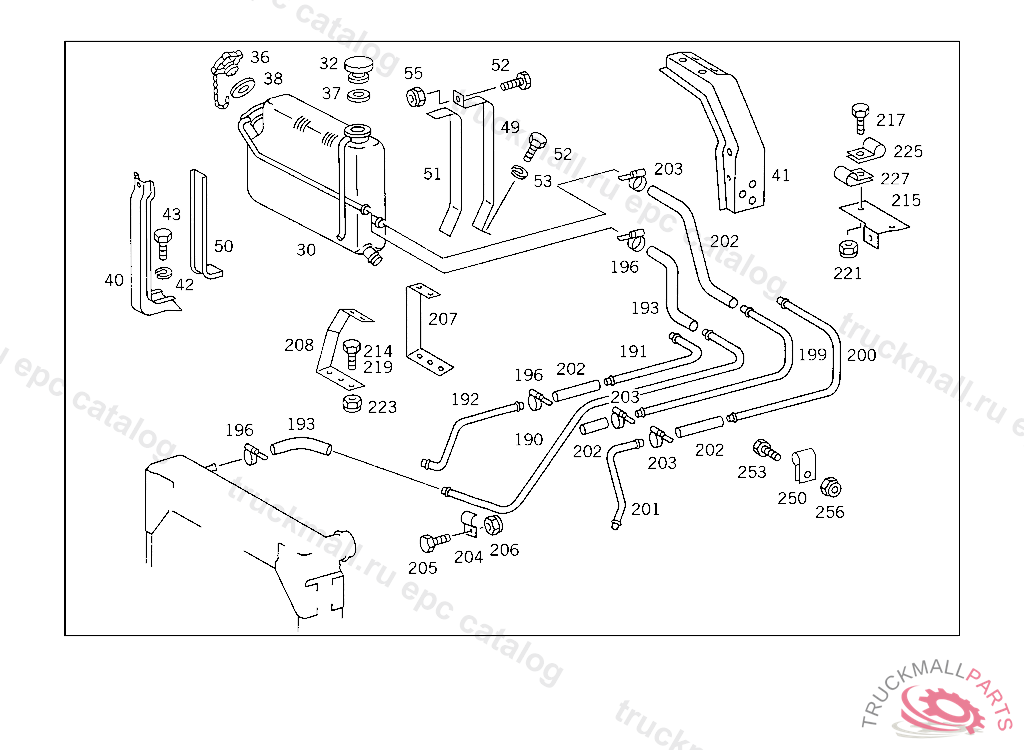

30
TANK
30
TANK , Replaced By: A3815000849
32
RADIATOR CAP FILLER NECK
32
RADIATOR CAP FILLER NECK
32
RADIATOR CAP
32
RADIATOR CAP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0005014215
32
RADIATOR CAP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0005014215
36
RADIATOR CAP
37
GASKET O.D., 52 MM
38
GASKET O.D., 37 MM
40
BRACKET EXPANSION TANK
40
BRACKET , Replaced By: A6155010020
42
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
43
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
43
SCREW , Replaced By: N304017010028
49
BRACKET EXPANSION TANK
49
BRACKET , Replaced By: A3815012720
50
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
50
PAD , Replaced By: A3634750220
51
SHIM STRAP, 415 5 014668 416 5 000515 417 4 972023
51
SHIM , Replaced By: A3815010495
51
SHIM , Replaced By: A3815010295
52
SCREW END PIECE TO EXHAUST PIPE M 10X25
53
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
55
NUT STRAP TO BRACKET
55
NUT , Replaced By: N910113010000
193
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
196
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
196
CLAMP , Replaced By: N000000000667
199
BREATHER PIPE FROM ENGINE TO EXPANSION TANK, 385.019 NOT FOR USE LESS MERCEDES-BENZ PLATFORM
202
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
202
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
203
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
203
CLAMP , Replaced By: N000000000667
204
MOUNTING CLAMP. CLAMP DE-AERATION LINE TO BRACKET,4 465189
205
SCREW COVER PLATE TO BRACKET
206
NUT PUMP TO BRACKET
206
NUT , Replaced By: N913004006001
214
SCREW LINES TO ENGINE
215
BRACKET RADIATOR AND ENGINE BREATHING,AT ENGINE,5 055226
217
SCREW CAB FLOOR COVERING M 6X25
217
SCREW CAB FLOOR COVERING M 6X25
219
SCREW LINES TO ENGINE
221
NUT PUMP TO BRACKET
221
NUT PUMP TO BRACKET
221
NUT , Replaced By: N913004006001
225
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
225
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
250
CLAMP FEED LINE TO THERMOSTAT
250
CLAMP DELIVERY AND SUCTION LINES TO STEERING
250
CLAMP DELIVERY AND SUCTION LINES TO STEERING
250
CLAMP , Replaced By: A6739950001
250
CLAMP LINE MOUNTING
253
SCREW CAB FLOOR COVERING M 6X25
253
SCREW COVER PLATE TO BRACKET
256
NUT PUMP TO BRACKET
256
NUT , Replaced By: N913004006001
999
SHIM RUBBER MOUNTING TO BRACKET
999
SHIM RUBBER MOUNTING TO BRACKET
999
SHIM RADIATOR TO RUBBER MOUNTING,4 428845
999
RUBBER PAD COOLING WATER LINE, NOT USED
