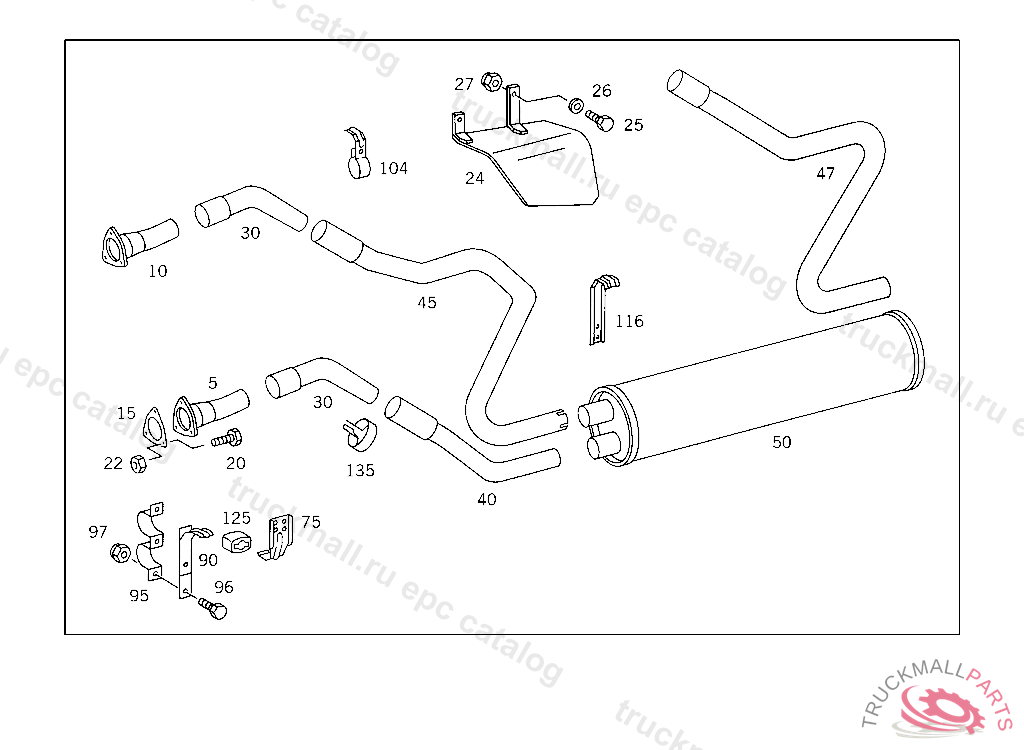

Поз.
Артикул
Описание
5
EXHAUST PIPE FRONT LEFT, 4 188089
5
EXHAUST PIPE FRONT LEFT
10
EXHAUST PIPE FRONT RIGHT, 4 188089
10
EXHAUST PIPE FRONT RIGHT
15
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, ELIMINATED - NO LONGER REQUIRED
15
FLANGE GASKET , Replaced By: A4424920080
20
SCREW CONNECTOR TO EXHAUST MANIFOLD
22
NUT STRAP TO SUPPORT,5 149419
30
CONNECTOR FRONT LEFT AND RIGHT
40
FRONT EXHAUST PIPE FRONT LEFT
45
FRONT EXHAUST PIPE RIGHT
50
EXHAUST MUFFLER
75
SUPPORT EXHAUST
90
BRACKET FRONT EXHAUST PIPE
95
CLAMP FRONT EXHAUST PIPE TO BRACKET
96
SCREW BRACKET TO CROSS CONNECTION STRUT
96
SCREW , Replaced By: N304017008034
97
NUT , Replaced By: N913004008001
97
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
104
BRACKET EXHAUST
125
DAMPING PAD PARTICLE FILTER
135
CLAMP REAR EXHAUST PIPE TO BRACKET
999
RUBBER BUFFER EXHAUST MUFFLER
999
SUPPORT , Replaced By: A3604910016
999
CONNECTOR , Replaced By: A3834920007
999
SCREW , Replaced By: N304017008034
