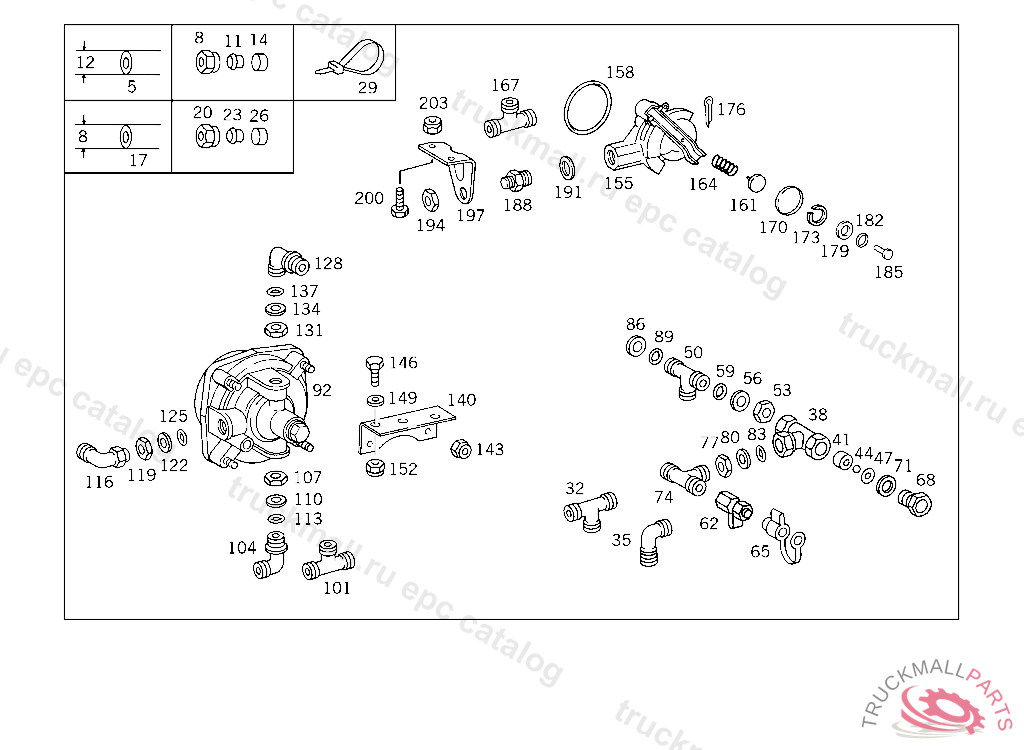

Поз.
Артикул
Описание
5
HOSE , Replaced By: A0009872827
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
8
UNION NUT , Replaced By: N915017012100
8
UNION NUT LINE CONNECTION, Replaced By: N000000006239
8
UNION NUT LINE CONNECTION
11
SEAL CONE LINE CONNECTION
11
GLAND , Replaced By: A0019901967
14
SLEEVE LINE CONNECTION
14
BUSHING , Replaced By: N915062009000
17
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
20
UNION NUT LINE CONNECTION
20
UNION NUT , Replaced By: N915017008100
23
GLAND LINE CONNECTION
26
SLEEVE LINE CONNECTION
26
SLEEVE , Replaced By: N915062006000
29
LOOM TIE LINE MOUNTING 280 MM
32
T-FITTING LOAD/NO-LOAD VALVE, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
32
T-FITTING LOAD/NO-LOAD VALVE, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
32
T-FITTING
32
T-FITTING LOAD/NO-LOAD VALVE, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
35
ELBOW FITTING DELIVERY LINE TO PUMP
35
FITTING , Replaced By: A0019902771
38
VALVE TWO-WAY VOSS
38
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0024299544
41
VALVE , Replaced By: A0004290782
41
VALVE , Replaced By: A0004291182
41
VALVE BODYTO 002 429 95 44
44
BALLTO 003 429 22 44
47
GASKETTO 003 429 22 44
50
T-FITTING RELAY VALVE,CONNECTION: "12"
53
NUT CHECK VALVE TO AIR RESERVOIR
53
NUT CHECK VALVE TO AIR RESERVOIR
56
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
56
THRUST RING CHECK VALVE TO AIR RESERVOIR
56
THRUST RING CHECK VALVE TO AIR RESERVOIR
59
O-RING CHECK VALVE TO AIR RESERVOIR
59
O-RING CHECK VALVE TO AIR RESERVOIR
62
TEST CONNECTION
62
TEST CONNECTION
62
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
62
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
62
TEST CONNECTION
62
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
62
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
62
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
62
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
62
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
65
PLUG
68
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
71
SEAL RING LINE CONNECTION
74
T-FITTING TWO-WAY VALVE,CONNECTION "1.2"
77
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
80
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
83
SEAL RING
83
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
86
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
86
THRUST RING CHECK VALVE TO AIR RESERVOIR
89
O-RING CHECK VALVE TO AIR RESERVOIR
92
BRAKE VALVE (TRAILER CONTROL VALVE) "BOSCH"
101
T-FITTING (SAFETY VALVE)
104
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
107
NUT CHECK VALVE TO AIR RESERVOIR
110
THRUST RING CHECK VALVE TO AIR RESERVOIR
110
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
113
O-RING CHECK VALVE TO AIR RESERVOIR
116
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
116
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
116
ELBOW FITTING , Replaced By: A0004294638
119
NUT CHECK VALVE TO AIR RESERVOIR
122
THRUST RING CHECK VALVE TO AIR RESERVOIR
122
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
125
O-RING CHECK VALVE TO AIR RESERVOIR
128
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
131
NUT CHECK VALVE TO AIR RESERVOIR
134
THRUST RING CHECK VALVE TO AIR RESERVOIR
134
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
137
O-RING CHECK VALVE TO AIR RESERVOIR
140
BRACKET TRAILER CONTROL VALVE
140
BRACKET TRAILER CONTROL VALVE
143
NUT STRAP TO BRACKET
143
NUT STRAP TO BRACKET
143
NUT , Replaced By: N910113010000
146
SCREW BRACKET TO SIDE MEMBER
149
WASHER
152
NUT SUPPORT TO SIDE MEMBER
155
BRAKE LINE COUPLING AT REAR CROSS MENBER
155
BRAKE LINE COUPLING , Replaced By: A0004297530
155
BRAKE LINE COUPLING AT REAR CROSS MENBER
155
BRAKE LINE COUPLING AT REAR CROSS MENBER
158
SEAL RINGTO 000 429 75 30
161
VALVE DISCTO 000 429 48 30
164
SPRINGTO 000 429 16 30
167
T-FITTING COMPRESSED AIR VALVE CONNECTION
170
GASKETTO 000 429 16 30
173
SNAP RINGTO 000 429 16 30
176
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
179
SEAL RINGTO 000 429 16 30
182
SEAL RINGTO 000 429 16 30
185
PIN
188
FITTING SHUTTLE VALVE
191
SEAL RING LINE CONNECTION
194
NUT BRACKET TO SIDE MEMBER
194
NUT BRACKET TO SIDE MEMBER
197
BRACKET AT BRAKE LINE COUPLING
197
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 686340, Replaced By: A3184291640
200
SCREW PIPE CLAMP
200
SCREW , Replaced By: N304017008021
203
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
203
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
203
NUT , Replaced By: N913004008001
999
REPAIR KITWABCO
999
SEAL RING TRAILER CONTROL VALVE
999
MUFFLER TRAILER CONTROL VALVE
999
SPRINGTO 000 429 16 30
999
VALVE DISCTO 000 429 48 30
999
VALVE TAPPETTO 000 429 16 30
999
VALVE PARTTO 000 429 16 30
999
NUTTO 000 429 16 30
999
SPRING CAPSULETO 000 429 16 30
999
COVERTO 000 429 16 30,BOSCH
999
REPAIR KITKNORR
999
COVERWABCO
999
COVERTO 000 429 48 30
999
VALVE CONEBOSCH
