Поз.
Артикул
Описание

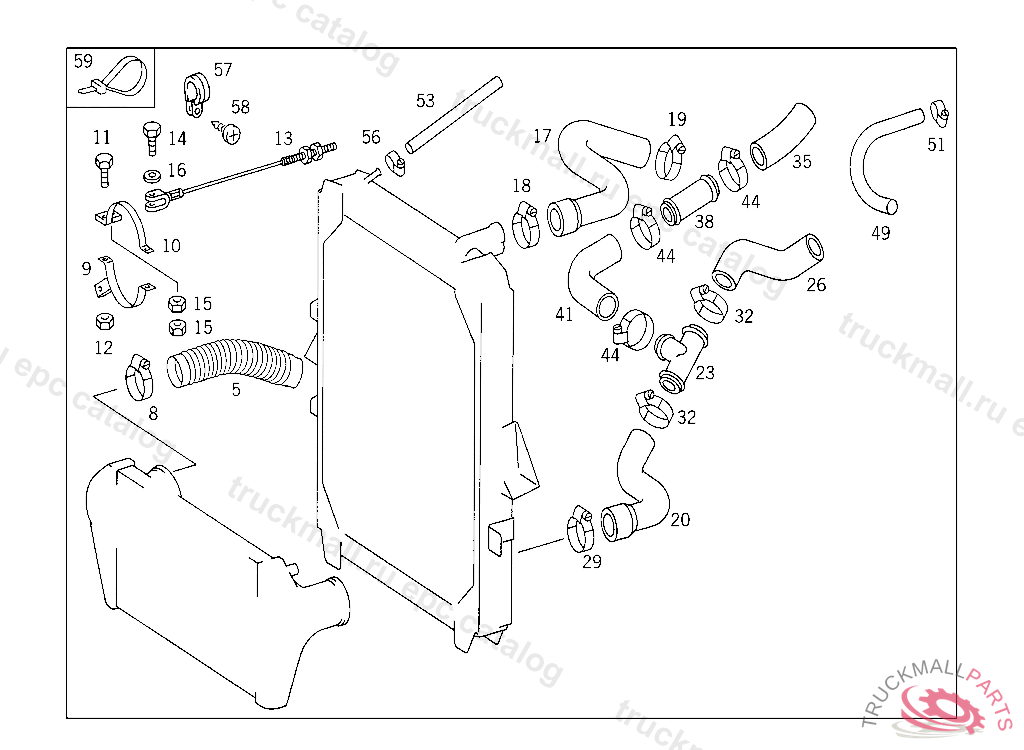

17
HOSE FROM RADIATOR TO THERMOSTAT
18
LOOM TIE (DRY FILTER)
18
CLAMP. LOOM TIE (DRY FILTER)
18
LOOM TIE (DRY FILTER)
19
LOOM TIE COOLING WATER HOSE TO THERMOSTAT 50-70
19
LOOM TIE COOLING WATER HOSE TO THERMOSTAT 51-64
20
HOSE FROM RADIATOR OUTLET TO WATER PUMP
23
FITTING FROM RADIATOR OUTLET TO WATER PUMP
26
HOSE FROM RADIATOR OUTLET TO WATER PUMP
29
LOOM TIE (DRY FILTER)
29
CLAMP. LOOM TIE (DRY FILTER)
29
LOOM TIE (DRY FILTER)
32
LOOM TIE COOLING WATER HOSE TO THERMOSTAT 51-64
32
LOOM TIE COOLING WATER HOSE TO THERMOSTAT 51-64
32
CLAMP MOLDED HOSE TO FITTING
32
CLAMP MOLDED HOSE TO FITTING
35
HOSE
38
PIPE ELBOW FROM EXPANSION TANK TO WATER PUMP
41
HOSE FROM FITTING TO T-FITTING
44
CLAMP EXPANSION TANK
44
LOOM TIE40-60
49
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
51
CLAMP AIR COMPRESSOR
51
CLAMP FROM EXPANSION TANK TO ENGINE
53
HOSE FROM EXPANSION TANK TO RADIATOR
56
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK 16-25
56
CLAMP FROM EXPANSION TANK TO ENGINE
57
CLAMP PIPE ON FAN SHROUD
57
CLAMP ELECTRIC CABLE TO BRACKET 20/15
58
SCREW ENGINE CABLE HARNESS
59
LOOM TIE ELECTRIC CABLE MOUNTING
59
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
