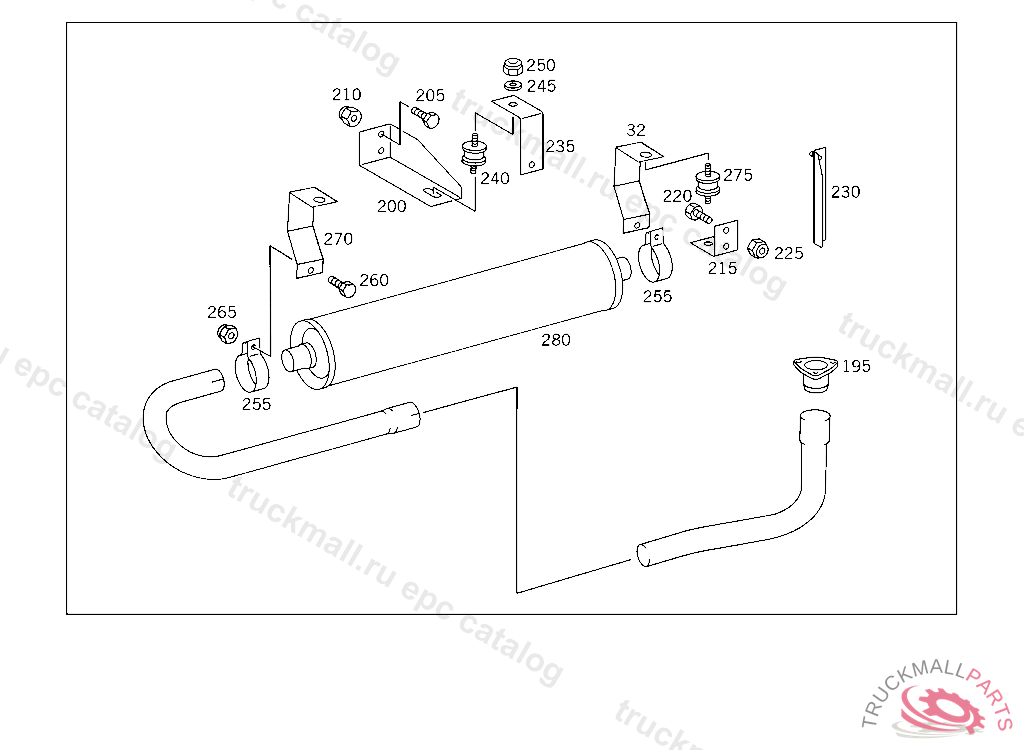

Поз.
Артикул
Описание
32
BRACKET REAR EXHAUST PIPE
195
EXHAUST PIPE FRONT
200
SUPPORT FRONT EXHAUST PIPE
205
SCREW POWER CYLINDER TO BEARING BRACKET
210
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
215
BRACKET FRONT EXHAUST PIPE
220
SCREW , Replaced By: N304017010040
225
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
230
BRACKET
235
BRACKET FRONT EXHAUST PIPE
240
RUBBER MOUNTING
245
WASHER GROUND CABLE
250
NUT BRACKET TO SIDE MEMBER,XB209706
250
NUT BRACKET TO SIDE MEMBER,XB209706
255
CLAMP FRONT EXHAUST PIPE TO BRACKET
255
CLAMP INTERMEDIATE PIECE
260
SCREW ANGLE TO CROSS MEMBER M 10X30
260
SCREW ANGLE TO CROSS MEMBER M 10X30
265
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
265
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
270
BRACKET FRONT EXHAUST PIPE
275
RUBBER MOUNTING
280
EXHAUST MUFFLER
999
FLANGE GASKET EXHAUST PIPE TO EXHAUST MANIFOLD
999
REAR EXHAUST PIPE (TAIL PIPE)
999
REAR EXHAUST PIPE
999
END PIECE , Replaced By: A3884927014
999
CLAMP REAR EXHAUST PIPE TO MUFFLER,B 884220
999
SUPPORT EXHAUST MUFFLER
999
EXHAUST PIPE FRONT, NOT USED
999
REAR EXHAUST PIPE (TAIL PIPE),T 083305
