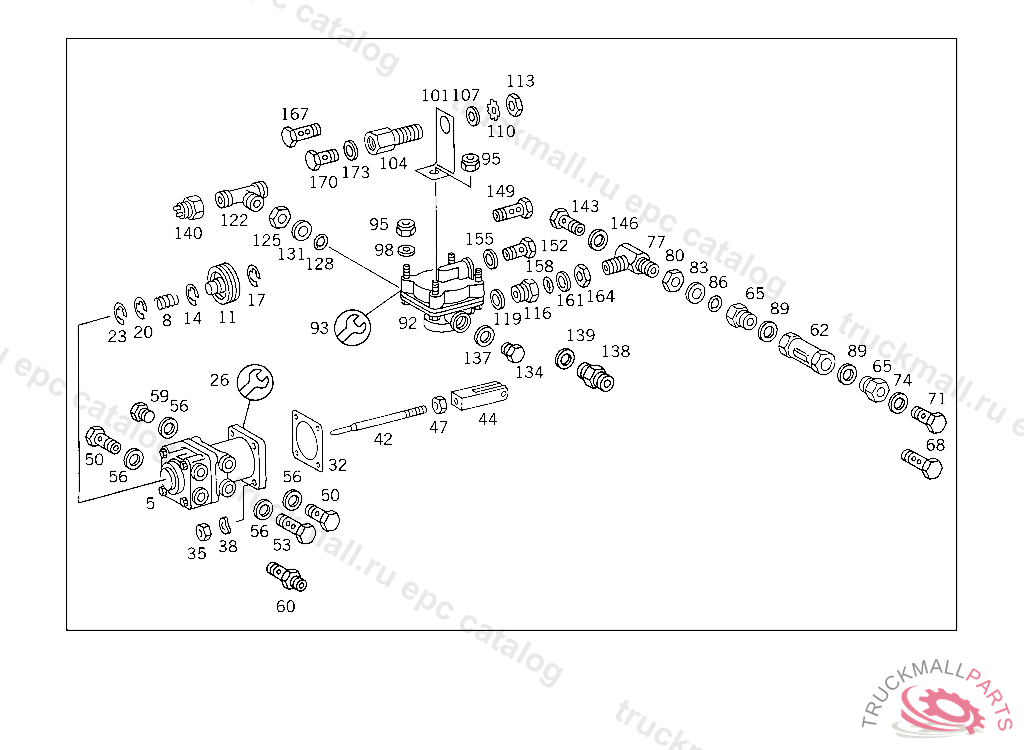

Поз.
Артикул
Описание
5
BRAKE VALVE SERVICE BRAKE WABCO
5
BRAKE VALVE SERVICE BRAKE KNORR
8
SPRINGTO 345 431 70 05
8
SPRINGTO 345 431 71 05
8
SPRINGTO 345 431 70 05
11
PISTONTO 345 431 70 05
11
PISTONTO 345 431 71 05
14
LOCK RINGTO 345 431 71 05
14
LOCKTO 345 431 70 05
17
LOCK RINGTO 345 431 71 05
20
LOCK RING
23
LOCK RING PLANETARY CARRIER
26
REPAIR KIT LARGE SCOPE TO 345 431 70 05
26
REPAIR KIT SMALL SCOPE TO 345 431 70 05
26
REPAIR KIT , Replaced By: A0014300460
26
REPAIR KIT SMALL SCOPE TO 345 431 71 05
32
GASKET BRAKE SHOE WITH LINING
35
NUT BATTERY CASE
38
SPRING WASHER BRAKE SHOE WITH LINING
42
ROD FROM FITTING TO CLUTCH BOOSTER
44
YOKE
47
NUT FUEL TANK TO SUPPORT
50
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
53
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
56
SEAL RINGTO 006 997 00 72
59
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
60
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
62
VALVE (CHECK VALVE)
62
VALVE (CHECK VALVE)
62
VALVE (CHECK VALVE)
65
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
65
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
68
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
74
SEAL RINGTO 006 997 00 72
77
T-FITTING FROM CHECK VALVE TO RELAY VALVE
77
T-FITTING FROM CHECK VALVE TO RELAY VALVE
80
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
80
NUT CHECK VALVE TO AIR RESERVOIR
83
THRUST RING CHECK VALVE TO AIR RESERVOIR
83
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
83
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
86
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
86
O-RING CHECK VALVE TO AIR RESERVOIR
89
SEAL RING LINE CONNECTION
92
VALVE (RELAY VALVE) KNORR
92
VALVE (RELAY VALVE) WABCO
92
VALVE (RELAY VALVE),REAR AXLE
93
REPAIR KITTO 003 429 30 44,KNORR
93
REPAIR KITWABCO
93
REPAIR KIT SMALL SCOPE TO 001 429 68 44
93
REPAIR KITKNORR
95
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
95
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
98
WASHER TRAILER PLUG SOCKET TO BRACKET
101
BRACKET RELAY VALVE
104
ADAPTER FITTING RELAY VALVE TO BRACKET
107
WASHER COVERING TO BEARING BRACKET
110
TOOTHED WASHER SENDER UNIT TO BRACKET
113
NUT BRACKET TO SIDE MEMBER
116
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
119
SEAL RING LINE CONNECTION
125
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
128
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
131
THRUST RING LOCKING VALVE
131
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
134
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
137
SEAL RINGTO 006 997 00 72
140
SWITCH FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "23"
140
SWITCH SUPPLY PRESSURE,5 966147
140
SWITCH RELAY VALVE,CONNECTION "2",RIGHT
140
SWITCH RELAY VALVE,CONNECTION "2"
143
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
146
SEAL RINGTO 006 997 00 72
149
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
155
SEAL RINGTO 006 997 00 72
158
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
161
THRUST RING LOCKING VALVE
161
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
164
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
167
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
173
SEAL RINGTO 006 997 00 72
999
ROD , Replaced By: A3842927032, +001A3849967001, +001N000934012009
