Поз.
Артикул
Описание

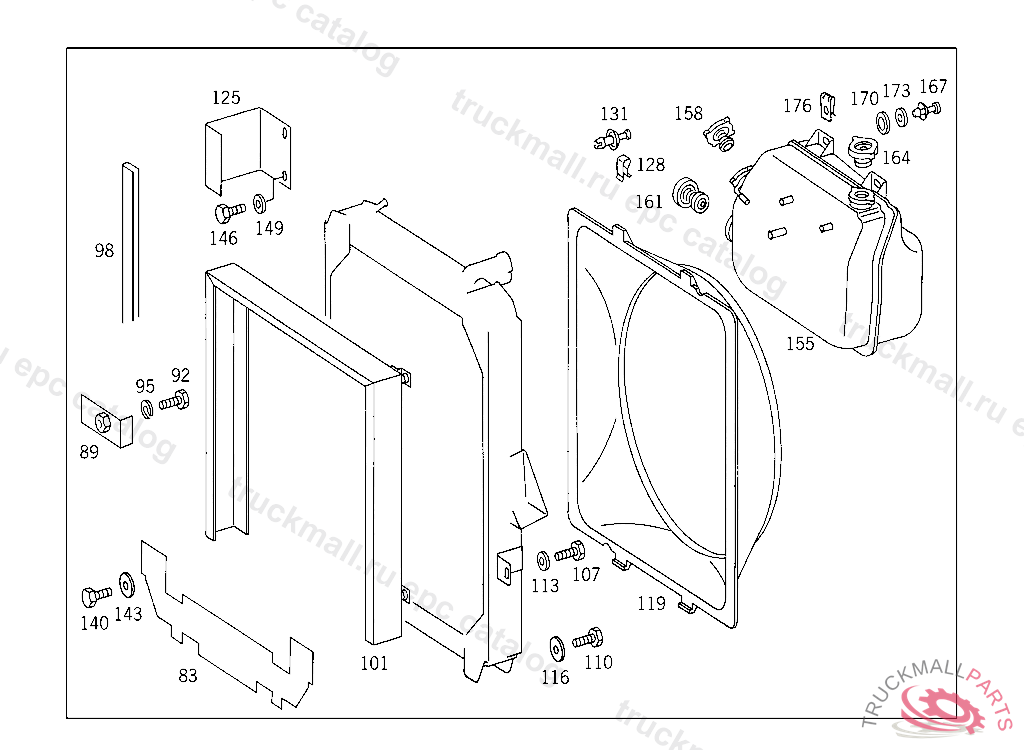

83
AIR BAFFLE ,D 023658
119
FAN SHROUD RADIATOR,D 023659
119
FAN SHROUD RADIATOR
119
FAN SHROUD RADIATOR
119
FAN SHROUD RADIATOR
119
FAN SHROUD RADIATOR
125
MOUNTING PLATE RADIATOR,D 022493
128
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
140
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
140
SCREW CLAMP TO BRACKET
143
WASHER , Replaced By: N009021006208
146
SCREW 3/2-WAY VALVE TO BRACKET
149
WASHER PLUG SOCKET TO BRACKET
155
TANK (EXPANSION TANK)
158
RADIATOR CAP FILLER NECK
161
RADIATOR CAP
164
RADIATOR CAP CENTRAL
167
RIVET COOLANT LINE ON FAN SHROUD
170
RUBBER MOUNTING EXPANSION TANK TO BRACKET
173
WASHER , Replaced By: N000125017016
176
LOCK AT WATER EXPANSION TANK
176
CLIP RESERVOIR TO CAB FRONT PANEL
