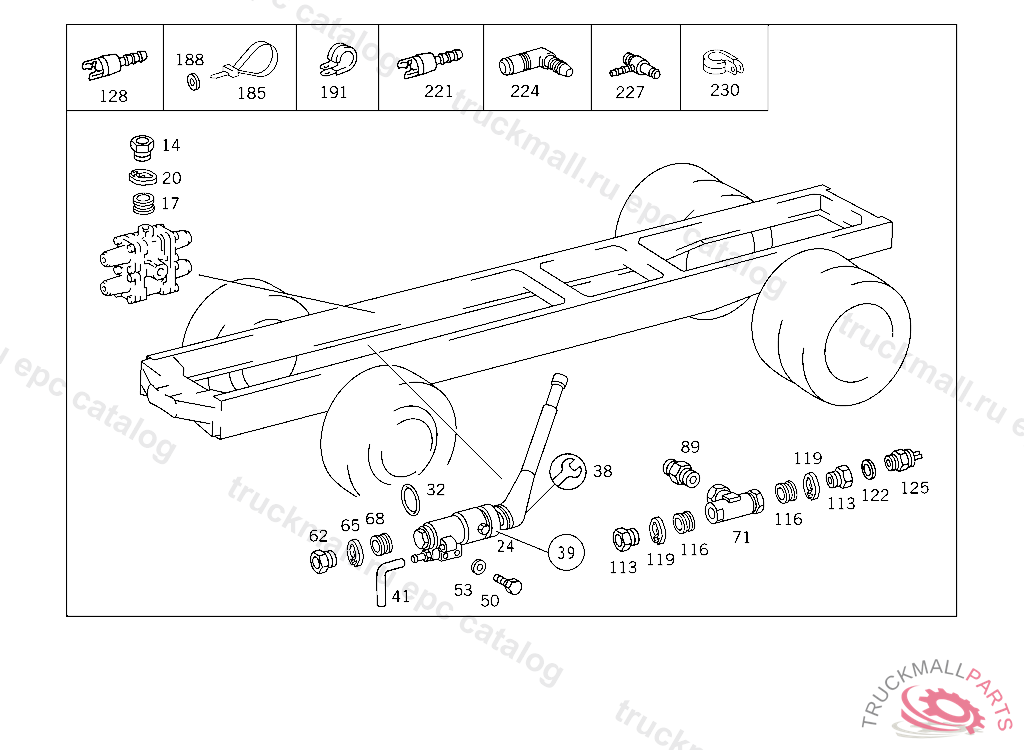

Поз.
Артикул
Описание
14
SCREW. UNION SCREW LINE CONNECTION
17
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
20
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
24
VALVE (PARKING BRAKE VALVE) WABCO
32
SEAL RING
38
REPAIR KIT REPAIR KIT TO 695 430 71 81
38
REPAIR KIT REPAIR KIT TO 695 430 71 81
38
REPAIR KIT REPAIR KIT TO 695 430 71 81
39
PROTECTIVE PLATE PARTS KIT TO 695 430 71 81
41
HOSE PARKING BRAKE VALVE
50
SCREW PLUG SOCKET TO FRAME
50
SCREW AIR DUCT TO CAB
50
SCREW PLUG SOCKET TO FRAME
53
WASHER TRAILER PLUG SOCKET TO BRACKET
62
SCREW. UNION SCREW , Replaced By: A0009973734
65
LOCK , Replaced By: A0009945448
68
SEAL RING , Replaced By: A0009940747
71
VALVE (LOCKING VALVE)
89
FITTING LOCKING VALVE,CONNECTION: "2"
113
SCREW. UNION SCREW LINE CONNECTION
116
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
119
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
122
THRUST RING LOCKING VALVE
125
SWITCH PRESSURE SWITCH
128
COUPLING COMPRESSED AIR PIPING,YB227219
185
LOOM TIE LINE MOUNTING
188
WASHER , Replaced By: A3609902340
191
CLAMP DELIVERY AND SUCTION LINES TO FRAME 22/15
191
CLAMP DELIVERY AND SUCTION LINES TO FRAME
191
CLAMP BATTERY POS. CABLE TO BRACKET
221
PLUG COMPRESSED AIR PIPING,YB227219
221
COUPLING COMPRESSED AIR PIPING,YB227219
224
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
224
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
227
ELBOW FITTING HOSE WIDTH, 6 MM,TO M 22
230
CLAMP COMPRESSED AIR LINE MOUNTING 38/20
230
CLAMP , Replaced By: A3829950701
230
CLAMP HOSE TO FLANGE AND TO VALVE
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
THRUST RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
999
ADAPTER FITTING EXTENSIBLE BRAKE VALVE,CONNECTIONS: "10,20"
999
VALVE
999
SPRING
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
CONNECTOR , Replaced By: A0029905478
999
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
ELBOW FITTING , Replaced By: A0049905371
999
FITTING LINE CONNECTION, Replaced By: N000000006446
999
VALVE TWO-WAY
999
VALVE (TRAILER CONTROL VALVE) "KNORR"
999
SEAL RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
999
CLAMP PEDAL BEARING BRACKET,1B 961216
999
VALVE (TRAILER CONTROL VALVE) "KNORR"
999
VALVE (PARKING BRAKE VALVE)
999
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
999
CONNECTOR6 MM,D 013038
999
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
999
PLUG BLEEDING,D 013038
999
BRACKET AT SHIFTING ROD
999
BRACKET ,D 091466
999
CLAMP BATTERY CABLE TO BRACKET
999
GLAND LINE CONNECTION
999
SCREW-IN FITTING ,D 091465
999
SEAL RING LINE CONNECTION
999
SEAL RING FUEL LINE TO FEED PUMP
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
TAPPING SCREW. SHEET METAL SCREW ,D 091466
999
INSULATING HOSE COLOR CODE BLUE,YB227219
999
INSULATING HOSE RED, ORDER BY THE METER
999
UNION NUT LINE CONNECTION
999
HOLLOW SCREW , Replaced By: N915036010108
999
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
SLEEVE LINE CONNECTION
