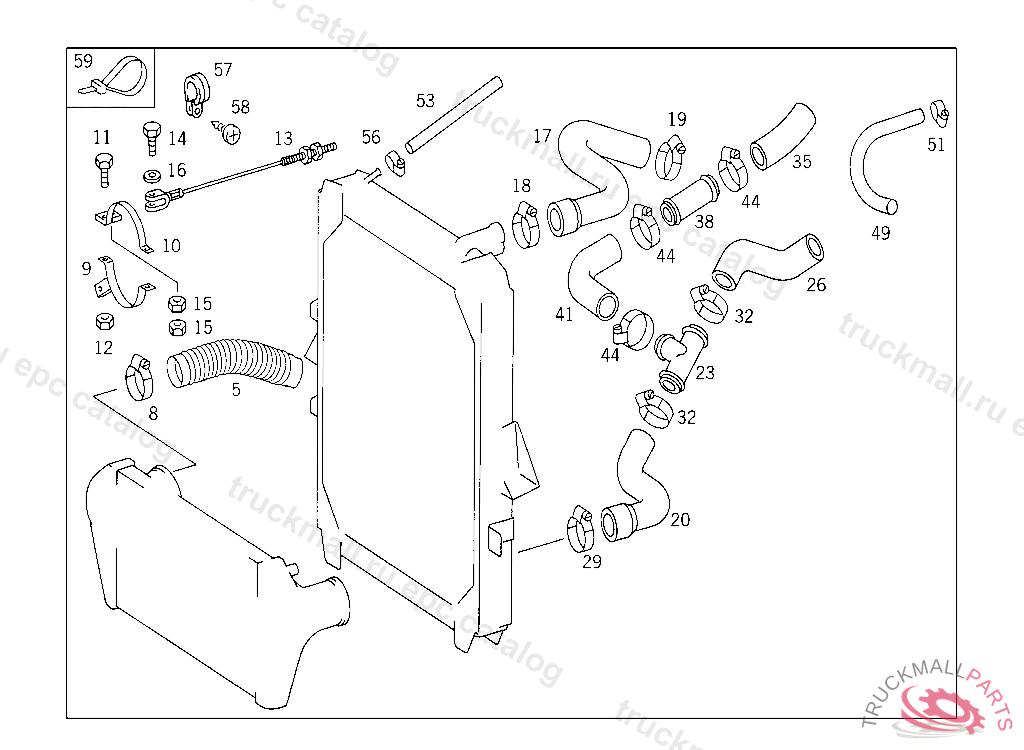

Поз.
Артикул
Описание
5
HOSE FROM CHARGING AIR INTERCOOLER TO CHARGING AIR ELBOW
5
HOSE CHARGING-AIR-INTERCOOLER/TURBOCHARGER CONNECTION
5
HOSE
8
CLAMP AIR INTAKE PIPE
8
CLAMP AS REQUIRED
8
LOOM TIE. CLAMP AS REQUIRED
9
LOOM TIE
10
LOOM TIE COMPRESSED AIR ELBOW TO CHARGING AIR ELBOW
11
SCREW ANGLE TO CROSS MEMBER M 10X30
11
SCREW , Replaced By: N304017010040
12
NUT OIL COOLER TO BRACKET,TOP
12
NUT OIL COOLER TO BRACKET,TOP
13
PULL COMPRESSED AIR ELBOW TO CHARGING AIR ELBOW
14
SCREW QUICK-RELEASE VALVE TO BRACKET
15
NUT
16
WASHER TRAILER PLUG SOCKET TO BRACKET
17
HOSE FROM RADIATOR TO THERMOSTAT
18
CLAMP. LOOM TIE (DRY FILTER)
18
LOOM TIE (DRY FILTER)
18
LOOM TIE (DRY FILTER)
19
LOOM TIE COOLING WATER HOSE TO THERMOSTAT 51-64
19
LOOM TIE COOLING WATER HOSE TO THERMOSTAT 50-70
20
HOSE FROM RADIATOR OUTLET TO WATER PUMP,D 023659
20
HOSE FROM RADIATOR OUTLET TO WATER PUMP
23
FITTING FROM RADIATOR OUTLET TO WATER PUMP
26
HOSE FROM RADIATOR OUTLET TO WATER PUMP
29
CLAMP. LOOM TIE (DRY FILTER)
29
LOOM TIE (DRY FILTER)
29
LOOM TIE (DRY FILTER)
32
LOOM TIE COOLING WATER HOSE TO THERMOSTAT 51-64
32
LOOM TIE COOLING WATER HOSE TO THERMOSTAT 51-64
32
CLAMP MOLDED HOSE TO FITTING
32
CLAMP MOLDED HOSE TO FITTING
35
HOSE
38
PIPE ELBOW FROM EXPANSION TANK TO WATER PUMP
41
HOSE FROM FITTING TO T-FITTING
44
LOOM TIE40-60
44
CLAMP EXPANSION TANK
49
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
51
CLAMP FROM EXPANSION TANK TO ENGINE
51
CLAMP AIR COMPRESSOR
53
HOSE FROM RADIATOR TO EXPANSION TANK 12X21X910
56
CLAMP FROM EXPANSION TANK TO ENGINE
56
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK 16-25
57
CLAMP ELECTRIC CABLE TO BRACKET 20/15
57
CLAMP PIPE ON FAN SHROUD
58
SCREW ENGINE CABLE HARNESS
59
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
59
LOOM TIE ELECTRIC CABLE MOUNTING
