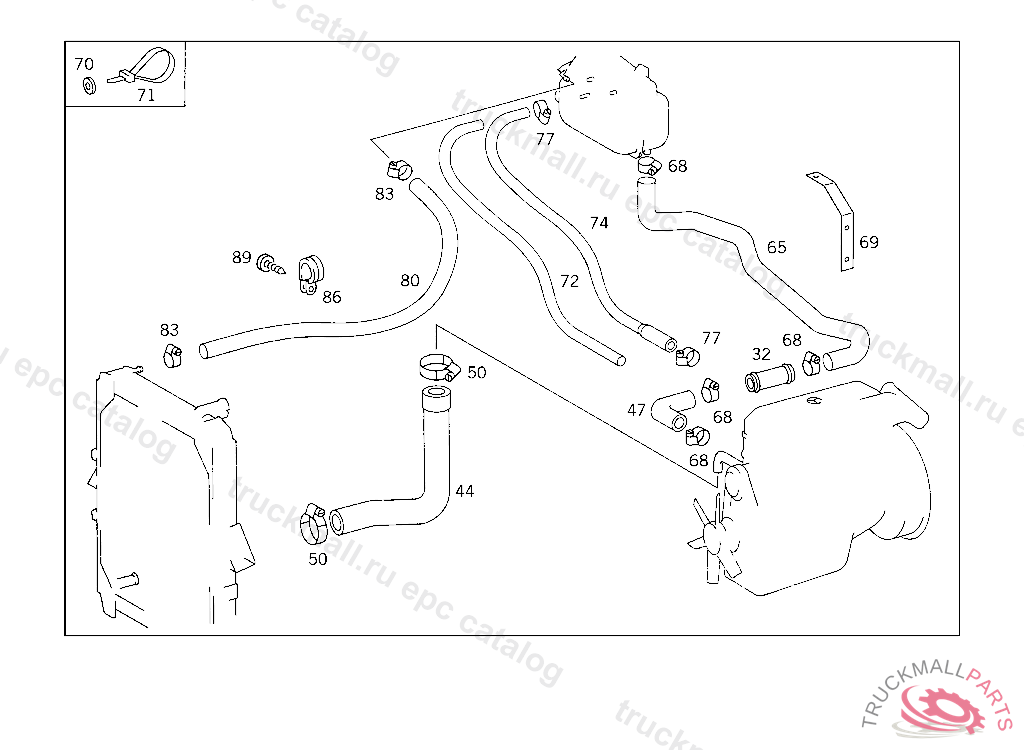

Поз.
Артикул
Описание
32
PIPE ELBOW FROM EXPANSION TANK TO WATER PUMP
44
HOSE FROM RADIATOR OUTLET TO WATER PUMP
47
HOSE FROM WATER PUMP TO INTERMEDIATE PIECE
50
LOOM TIE (DRY FILTER)
50
LOOM TIE (DRY FILTER)
50
CLAMP. LOOM TIE (DRY FILTER)
65
HOSE FROM EXPANSION TANK TO WATER PUMP 32X44X790,B 870316
65
HOSE FROM WATER PUMP TO EXPANSION TANK
68
LOOM TIE40-60
68
CLAMP EXPANSION TANK
69
BRACKET HOSE TO WATER PUMP
70
WASHER , Replaced By: A3609902340
71
LOOM TIE LINE MOUNTING
74
HOSE FROM ENGINE TO EXPANSION TANK
77
LOOM TIE. CLAMP HOSE TO HEATING PIPE
77
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK 16-25
77
CLAMP FROM EXPANSION TANK TO ENGINE
77
LOOM TIE. CLAMP COMPRESSED AIR LINE TO BRAKE CYLINDER
77
CLAMP AIR COMPRESSOR
80
HOSE FROM RADIATOR TO EXPANSION TANK 12X21X1090
83
CLAMP FROM EXPANSION TANK TO ENGINE
83
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK 16-25
86
CLAMP PIPE ON FAN SHROUD
89
SCREW ENGINE CABLE HARNESS
999
HOSE FROM EXPANSION TANK TO RADIATOR
