Mercedes A0009912422 - НАКОНЕЧНИК ТЯГИ
LK 2325,2425 386.389

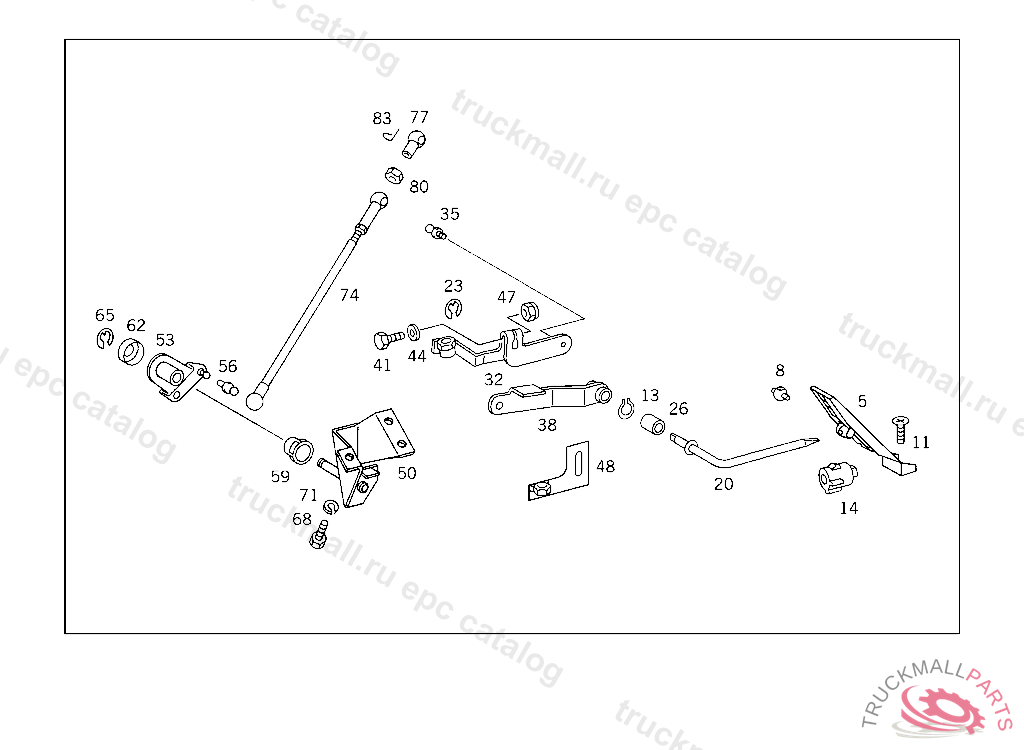

30 CONTROL - 060 ACCELERATOR PEDAL CONTROL
Поз.
Артикул
Описание
5
A3843007004
ACCELERATOR PEDAL
5
A6733000004
ACCELERATOR PEDAL
8
A3093010022
JOINT
11
N000963006010
SCREW ACCELERATOR PEDAL TO FLOOR PLATE
13
N900055010403
LOCK RING. RETAINING RING ACCELERATOR PEDAL TO LEVER
14
A1263010141
STOP FULL THROTTLE
20
A3763007325
LEVER (PEDAL LEVER)
23
N006799009002
LOCK PLATE
26
A3863017050
BUSHING ,B 892893
32
A3763007625
LEVER (CONTROL LEVER)
35
N071803010205
BALL PIVOT INTERMEDIATE LEVER
38
A3763007117
LEVER (CONTROL LEVER)
41
N000931006197
SCREW BRACKET TO FRAME
44
N000125006420
WASHER PLUG SOCKET TO BRACKET
47
N913004006001
NUT PUMP TO BRACKET
74
A3863008315
ROD310 MM
77
A0009912422
BALL SOCKET PULL ROD TO LEVER
80
N000934006006
NUT
83
N071805010402
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
