Поз.
Артикул
Описание

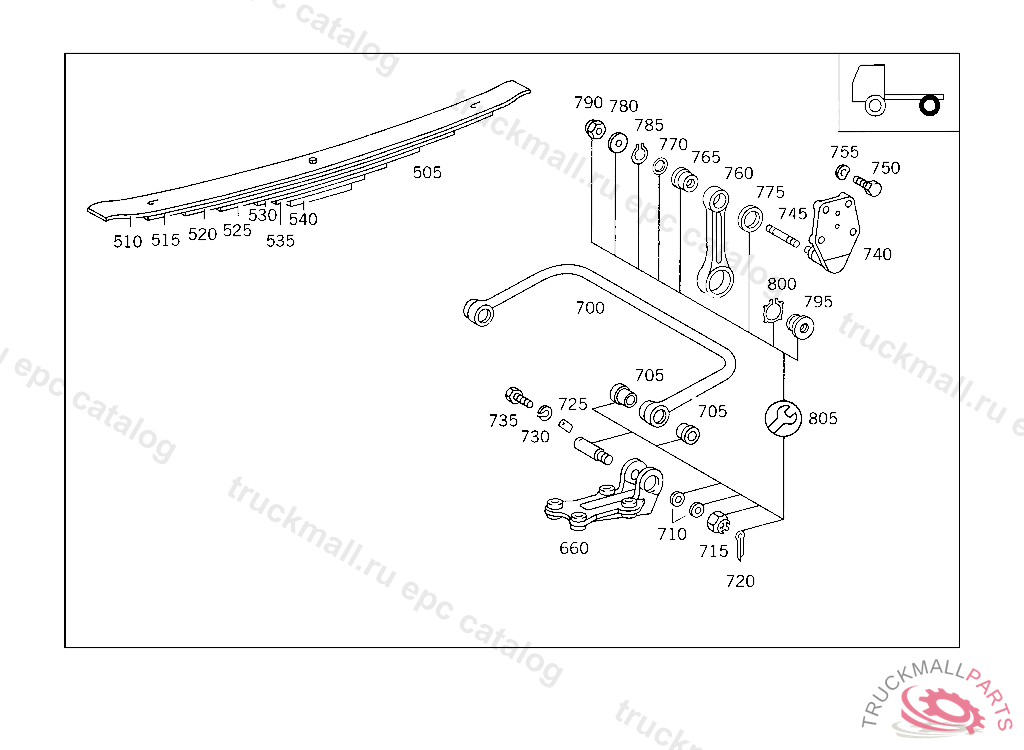

505
HELPER SPRING
510
SPRING LEAFNO.1
515
SPRING LEAFNO.2
520
SPRING LEAFNO.3
525
SPRING LEAF *** NO.4
530
SPRING LEAF *** NO.5
660
BEARING REAR AXLE TO TO REAR SPRINGS
660
BEARING BRACKET TO LEFT STABILIZER,4 114936
660
BEARING BRACKET TO RIGHT STABILIZER,4 114937
660
BEARING BRACKET TO RIGHT STABILIZER,4 114936
660
BEARING BRACKET TO LEFT STABILIZER,4 114937
700
TORSION BAR REAR AXLE
705
BUSHING TORSION BAR TO BEARING BRACKET
710
DISC SPRING TORSION BAR TO BEARING BRACKET
715
NUT TORSION BAR TO BEARING BRACKET
720
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
725
LOCK SPRING PIN LOCK
730
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
735
SCREW CLAMP TO BRACKET AND TO PIPE
740
BEARING BRACKET , Replaced By: A3933200678, +001A3933260152, +001N913004016004
740
CONSOLE , Replaced By: A3933261163, +001N000961016081
740
BEARING BRACKET SHACKLE TO FRAME,5 904660
740
CONSOLE , Replaced By: A3933200678
745
STUD BOLT
750
SCREW BRACKET TO SUPPORT
755
SPRING WASHER BRACKET TO TIMING CASE
760
SHACKLE ,9678464 707917, Replaced By: A3873260747, +001A3873260281
760
SHACKLE ,4 707917, Replaced By: A3933260547, +001A3873260281
760
SHACKLE TORSION BAR TO FRAME,4 707918
760
SHACKLE REAR SPRING TO REAR AXLE,4 707918
765
BUSHING SHACKLE TO BEARING BRACKET,5 904660
770
SPACER WASHER , Replaced By: A3873230252
770
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
775
WASHER SHACKLE TO CONSOLE,965965
780
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
785
LOCK RING SHACKLE TO CONSOLE TO 393 326 00 63,965965
790
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
790
NUT COMBINATION CYLINDER TO BEARING BRACKET
795
RUBBER MOUNTING SHACKLE TO TORSION BAR,5 904660
795
RUBBER MOUNTING TORSION BAR,4 707917
800
LOCK RING SHACKLE TO TORSION BAR,5 904660
805
REPAIR KIT TORSION BAR MOUNTING,4 707918
805
REPAIR KIT TORSION BAR MOUNTING,4 707917
805
REPAIR KIT , Replaced By: A3873200528
805
REPAIR KIT , Replaced By: A3873200128
999
SCREW SHACKLE TO CONSOLE
999
PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE4 707618, Replaced By: A3875860232
