Поз.
Артикул
Описание

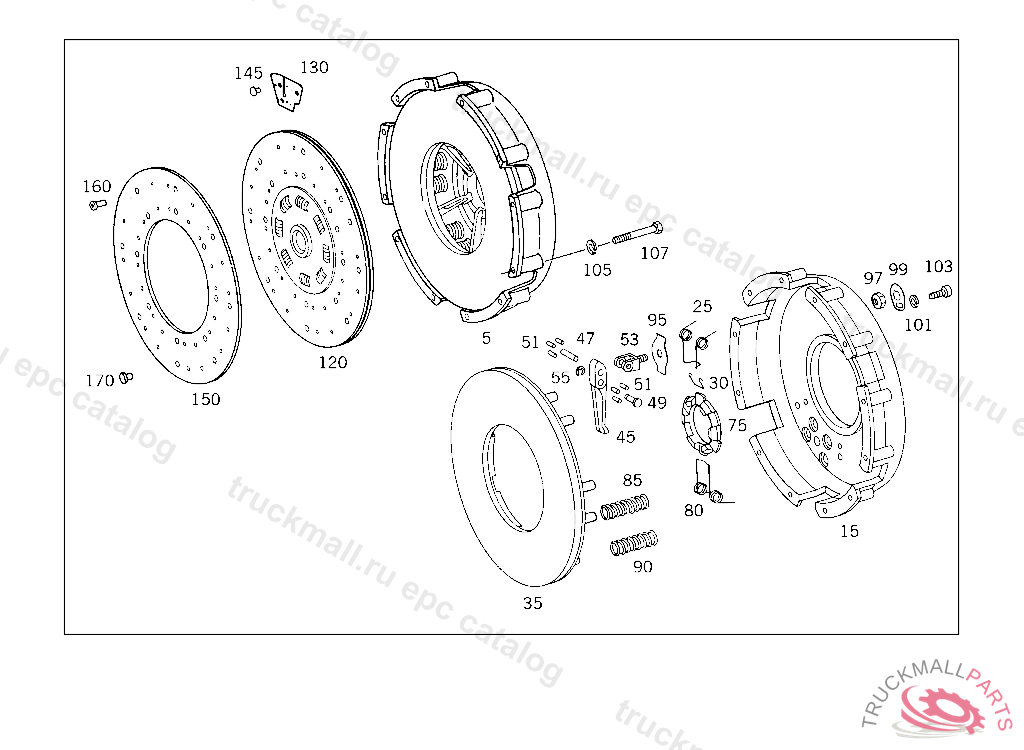

5
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
CLUTCH PRESSURE PLATE , Replaced By: A0032502504
15
HOUSING
25
SPRING SUSPENDED BELOW LEAF SPRING
25
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
30
CLAMP , Replaced By: A0002523227
30
CLAMP RELEASE FLANGE TO RELEASE LEVER
35
PRESSURE PLATE
45
RELEASE LEVER CLUTCH ACTUATION
47
SPINDLE FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
49
SPINDLE FOR BEDDING THE LEVERS IN BRACKETS
49
SPINDLE , Replaced By: A0002522816, +001A1249945241
51
ROLLER FOR BEDDING THE LEVERS IN BRACKETS
53
BRACKET RELEASE LEVER
55
LOCK PLATE LEVER TO BRACKET
55
LOCK PLATE RELEASE LEVER TO SHAFT
80
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
80
SPRING , Replaced By: A0002523227
80
SPRING SUSPENDED BELOW LEAF SPRING
85
PRESSURE SPRING SPRING STEEL WIRE DIA., 3.75 MM
90
PRESSURE SPRING SPRING STEEL WIRE DIA., 4.00 MM
95
LEAF SPRING THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
95
LEAF SPRING THIGH SPRING SUSPENDED BELOW LEAF SPRING
97
NUT FOR BRACKETS
97
NUT , Replaced By: A0002523072
99
LOCK FOR BRACKETS
101
LOCK WASHER BRACKET TO STEERING COLUMN END
103
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
103
SCREW RELEASE LEVER,BRACKET
105
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
107
SCREW , Replaced By: N304017010055
107
SCREW , Replaced By: N304017010050
120
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
120
CLUTCH DISC ASBESTOS-FREE LINING
120
CLUTCH DISC
120
CLUTCH DISC , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0072500803
120
CLUTCH DISC , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0062504503
120
CLUTCH DISC
120
CLUTCH DISC , Replaced By: A0022509803
120
CLUTCH DISC , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0062504603
120
CLUTCH DISC , Replaced By: A0052506403
130
LEAF SPRING
130
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 5.2MM TO 6.2MM, Replaced By: A0002523819, +002A0002523975
145
RIVET , Replaced By: A0002522075
145
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
145
RIVET LEAF SPRING TO CLUTCH DISC
150
CLUTCH LINING , Replaced By: A0012522910
150
CLUTCH LINING ASBESTOS-FREE
150
CLUTCH LINING , Replaced By: A0012522910
150
CLUTCH LINING
160
RIVET , Replaced By: A0002521275
160
RIVET LINING WITH INTERMEDIATE SPRING
160
RIVET LINING WITH INTERMEDIATE SPRING,5 563495
170
RIVET LINING WITH CLUTCH DISC,5 563495
170
RIVET LEAF SPRING TO CLUTCH DISC
999
PIN CLUTCH SLAVE CYLINDER
999
BOOT , Replaced By: A0005863129
999
BALL PIVOT CLUTCH ACTUATION,4 601609
999
COVER RELEASE SHAFT,TOP
999
GREASE NIPPLE (PARTS KIT) RELEASE BEARING LUBRICATION
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
SEAL RING COMPRESSED AIR LINE TO PARKING BRAKE VALVE
999
SCREW PLUG BELL HOUSING
999
SNAP RING LEVER TO RELEASE SHAFT,4 601609
999
SECURING CLIP CLUTCH SLAVE CYLINDER TO LEVER,4 601609
