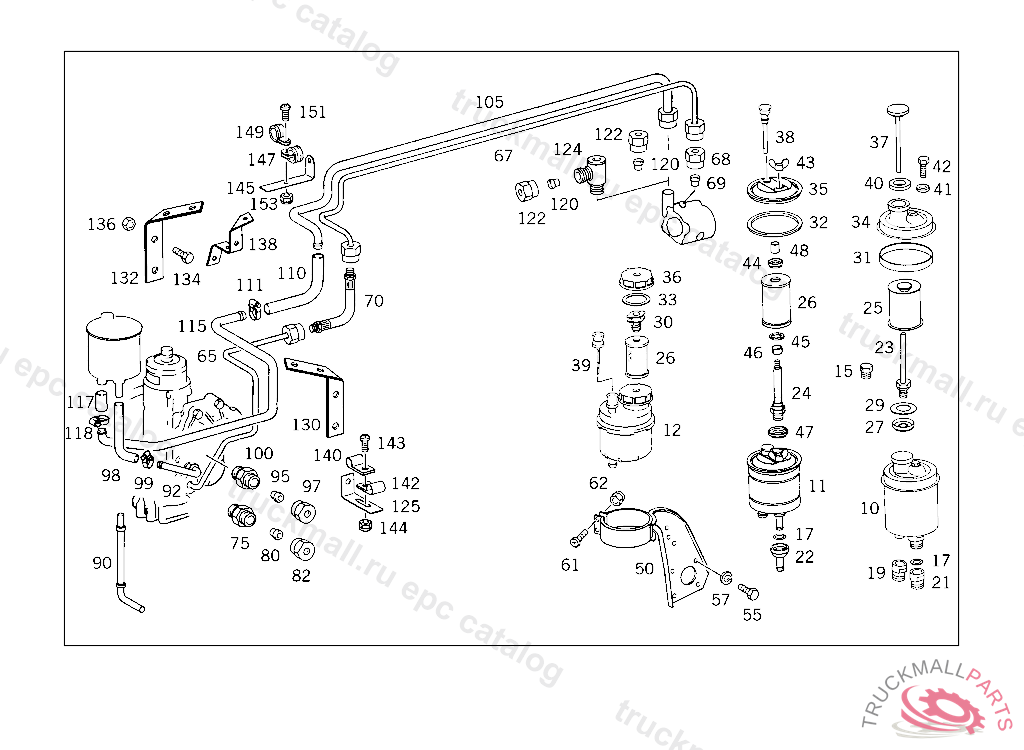

Поз.
Артикул
Описание
10
TANK , 993034
11
TANK , Replaced By: A0004664502
12
TANK OIL
15
FITTING , 993034
17
SEAL RING , Replaced By: A0059970848
17
SEALING CORD , Replaced By: A0059970848
19
CONNECTOR , 993034
21
CONNECTOR , 993034
22
CONNECTORTO 000 466 38 02
22
SEAL RINGTO 000 466 38 02
23
FILTER CARRIER , 993034
24
FILTER CARRIERTO 000 466 38 02
25
FILTER , 993034
26
FILTER , Replaced By: A0004660604
26
FILTER
27
VALVE DISC , 993034
29
SPRING , 993034
30
BRACKET
31
GASKET , Replaced By: A0004660580
31
GASKET , 993034
32
SEAL RINGTO 000 466 38 02
33
SEAL RING
34
COVER , 993034
35
COVERTO 000 466 38 02
36
FILLER CAP
37
COVER , 993034
38
PIPETO 000 466 38 02
39
OIL DIPSTICK , Replaced By: A0004660867
39
OIL DIPSTICK
40
GASKET , 993034
41
WASHER , 993034
42
SCREW , Replaced By: N304017008016
42
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
43
NUT , 993035
44
CENTERING RINGTO 000 466 38 02
45
SPACER WASHERTO 000 466 38 02
45
WASHER , Replaced By: A9402680552
46
SPACER TUBETO 000 466 38 02
47
COVER PLATETO 000 466 38 02
48
RUBBER SLEEVETO 000 466 38 02
50
BRACKET OIL TANK
50
BRACKET OIL TANK
55
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
55
SCREW , Replaced By: N304017010028
57
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
61
SCREW , Replaced By: N000000001149
61
SCREW , Replaced By: A0029903712
61
SCREW OIL TANK TO BRACKET
61
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
62
NUT PUMP TO BRACKET
62
NUT , Replaced By: N913004006001
62
NUT , Replaced By: N913002006009
62
NUT OIL TANK TO BRACKET
65
LINE , NOT USED
65
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
65
LINE FROM HIGH PRESSURE HOSE TO STEERING, 993034
65
LINE FROM HIGH PRESSURE HOSE TO STEERING, 993034
67
LINE FROM PUMP TO HIGH PRESSURE HOSE, 620.415 UP TO IDENT NO. 5 014668 620.416 UP TO IDENT NO. 5 000515 620.417 UP TO IDENT NO. 4 972023
67
LINE FROM POWER STEERING PUMP TO HOSE
68
UNION NUT LINE CONNECTION, Replaced By: N000000006239
69
SEAL CONE LINE CONNECTION
69
GLAND , Replaced By: A0019901967
70
HOSE , Replaced By: A0009978252
70
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
70
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
70
HOSE , Replaced By: A0009978252
70
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
70
HOSE , Replaced By: A0009978252
75
SCREW-IN FITTING DELIVERY LINE TO PUMP
80
GLAND , Replaced By: A0019901967
80
SEAL CONE LINE CONNECTION
82
UNION NUT LINE CONNECTION, Replaced By: N000000006239
90
LINE FROM STEERING TO OIL TANK, 993034
92
LINE FROM STEERING TO OIL TANK
95
GLAND LINE CONNECTION
97
UNION NUT LINE CONNECTION
98
HOSE , Replaced By: A3859971682
98
HOSE , Replaced By: A6999974082
98
HOSE , NOT USED
99
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
99
CLAMP HOSE TO FITTING AND TO OIL TANK
100
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
105
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
105
LINE , Replaced By: A0004291601
110
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
111
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
111
CLAMP , Replaced By: N000000000667
115
LINE FROM LINE TO OIL TANK, 993034
115
LINE FROM LINE TO OIL TANK, 993034
115
LINE FROM OIL TANK TO HOSE, NOT USED
115
LINE FROM RETURN LINE TO OIL TANK, 620.415 UP TO IDENT NO. 5 014668 620.416 UP TO IDENT NO. 5 000515 620.417 UP TO IDENT NO. 4 972023
117
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
118
CLAMP , Replaced By: N000000000667
118
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
120
SEAL CONE LINE CONNECTION
120
GLAND , Replaced By: A0019901267
122
UNION NUT LINE CONNECTION, Replaced By: N000000006243
124
ELBOW FITTING SUCTION LINE TO OIL PUMP
125
BRACKET , Replaced By: A3812950440
125
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
125
BRACKET , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 493018, Replaced By: A3812950440
130
BRACKET , Replaced By: A6564660040
130
BRACKET DELIVERY AND SUCTION LINES TO FRAME
132
BRACKET DELIVERY AND SUCTION LINES TO FRAME
134
SCREW , Replaced By: N308676012026
134
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
136
NUT SUPPORT TO SIDE MEMBER
138
BRACKET , Replaced By: A3604293140
138
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
140
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
140
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
142
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
143
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
144
NUT , Replaced By: N913004006001
144
NUT PUMP TO BRACKET
145
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
145
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
145
BRACKET , Replaced By: A6205244040
147
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
149
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
151
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
153
NUT PUMP TO BRACKET
153
NUT , Replaced By: N913004006001
999
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
999
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
999
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
999
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
999
PROTECTIVE CAP
999
STEERING SHAFT , USED WITH SHORT MERCEDES-BENZ CAB, Replaced By: A6504600209
999
THRUST PLATE STEERING WHEEL HEIGHT ADJUSTMENT,4 727154
999
LINE RETURN, FROM STEERING TO OIL TANK,5 593344
999
PROTECTIVE SLEEVE UNIVERSAL JOINT COVERING,4 188586
999
PROTECTIVE SLEEVE UNIVERSAL JOINT COVERING,4 188586
999
STEERING SHAFTLEMFOERDER, USED WITH SHORT MERCEDES-BENZ CAB
999
STEERING SHAFT , USED WITH SHORT MERCEDES-BENZ CAB
999
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
999
COTTER PINROCKINGER,TYP 260 G150,260 G140
999
WIRE STEERING BOX ASSEMBLY TO STEERING SUPPORT 600 MM
