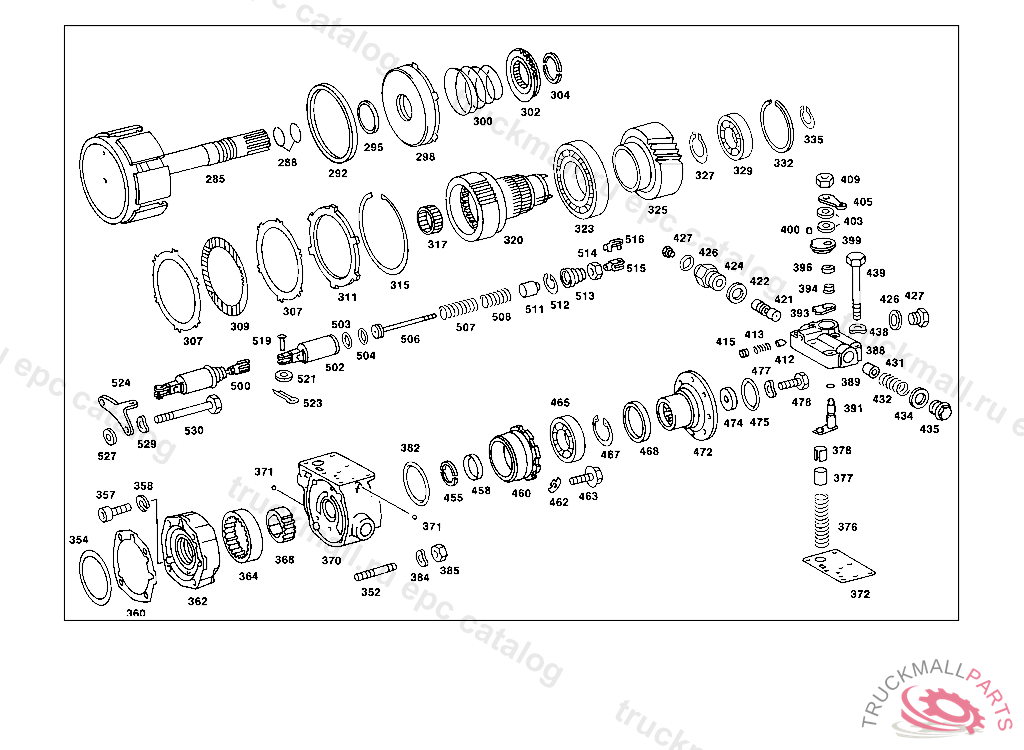

Поз.
Артикул
Описание
285
DRIVE SHAFT NMV OUTPUT
288
SEAL RING , Replaced By: A0002640860
288
SEAL RING OUTPUT SHAFT,REAR
292
SEAL RING ,124521, Replaced By: A0002641460, +001A0002640815, +001A0002641560
292
SEAL RING INSIDE PISTON 50.30 MM
295
SEAL RING , Replaced By: A0002641560, +001A0002640815, +001A0002641460
295
SEAL RING OUTSIDE PISTON 127.20 MM
298
PISTON , Replaced By: A0002640715
298
PISTON ,124521, Replaced By: A0002640815, +001A0002641460, +001A0002641560
298
PISTON NMV P.T.O. CLUTCH
300
SPRING NMV P.T.O. CLUTCH
302
SLIDING COLLAR
304
RING HALF
307
SHIM (OUTER DISC)
309
SHIM , Replaced By: A0002640647
309
SHIM , Replaced By: A0002641047
309
SHIM (INNER DISC)
311
THRUST WASHER NMV P.T.O. CLUTCH
315
LOCK NMV P.T.O. CLUTCH
317
ROLLER ASSEMBLY FRONT DRIVE SHAFT
320
DISC SUPPORT INSIDE
323
CYLINDR. ROLLER BEARING DISC SUPPORT
325
GEAR NMV OUTPUT
327
LOCK RING BEARING TO DRIVE SHAFT
329
CYLINDR. ROLLER BEARING DISC SUPPORT
332
SNAP RING BEARING TO P.T.O. CASE
335
LOCK RING P.T.O.
352
STUD OIL PUMP TO TRANSMISSION CASE
354
SPACER WASHER AS REQUIRED 1.10 MM
354
SPACER WASHER AS REQUIRED 1.00 MM
354
SPACER WASHER AS REQUIRED 0.90 MM
354
SPACER WASHER AS REQUIRED 0.80 MM
354
SPACER WASHER AS REQUIRED 0.70 MM
354
SPACER WASHER AS REQUIRED 0.60 MM
357
SCREW OIL PUMP HOUSING M6X35
358
LOCK WASHER BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
360
GASKET , Replaced By: A0012640780
360
GASKET OIL PUMP HOUSING
362
HOUSING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 434509, Replaced By: A0002690401
362
HOUSING PUMP
364
GEAR OUTSIDE
368
GEAR INSIDE
370
HOUSING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 434509, Replaced By: A0002645502
370
HOUSING , Replaced By: A0002645902, +001A0009971220
370
HOUSING , Replaced By: A0002647202
370
HOUSING (OIL DISTRIBUTOR BLOCK)
371
BALL P.T.O. SHAFT
372
GASKET , Replaced By: A0012645080
372
GASKET (OIL DISTRIBUTOR BLOCK)
376
SPRING , Replaced By: A0002641093, +001A0002640415
376
SPRING OIL DISTRIBUTOR BLOCK
377
PISTON , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 434509, Replaced By: A0002640415, +001A0002641093
377
PISTON OIL DISTRIBUTOR BLOCK
378
CLAMPING SLEEVE OIL DISTRIBUTOR BLOCK
382
SEAL RING FLANGE TO P.T.O.
382
SEAL RING
384
LOCK WASHER , Replaced By: N912006012000
384
LOCK WASHER OIL PUMP TO TRANSMISSION CASE
385
NUT
385
NUT COVER TO FLANGE
388
TRANSMISSION CASE COVER OIL DISTRIBUTOR BLOCK
389
SEAL RING CASE COVER
391
SHIFT LEVER INSIDE
393
PAWL CASE COVER
394
BUSHING CASE COVER
396
SEAL RING , Replaced By: A0049971647
396
SEAL RING SHIFT LEVER
399
GASKET , Replaced By: A0002642880
399
GASKET SHIFT LEVER
400
GROOVED PIN CASE COVER
403
WASHER , Replaced By: N000125010532
403
WASHER RADIATOR TO RUBBER MOUNTING
405
SHIFT LEVER P.T.O. CONTROL
409
NUT COVER PLATE
412
PIN SHIFTING FORK DETENT
413
SPRING SHIFTING FORK DETENT
415
SCREW PLUG STABILIZER
421
REGULATOR VALVE ACTUATING PISTON
422
SEAL RING LINE CONNECTION
424
SCREW PLUG CASE COVER
426
SEAL RING FUEL LINE TO FEED PUMP
427
SCREW PLUG 4/2-WAY VALVE
431
BUSHING CASE COVER
432
SPRING SHIFT CASE,FRONT
434
SEAL RING
435
SCREW PLUG , Replaced By: A3219970630
435
SCREW PLUG FUEL DISCHARGE
438
SPRING WASHER LICENSE PLATE TO BRACKET
439
SCREW CONNECTOR
455
RING HALF OIL DISTRIBUTOR BLOCK
455
RING HALF , Replaced By: A0012620930
458
BRACKET OIL DISTRIBUTOR BLOCK
460
BUSHING OIL DISTRIBUTOR BLOCK
462
LOCK OIL DISTRIBUTOR BLOCK
463
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
463
SCREW , Replaced By: N304017008016
465
BALL BEARING OIL DISTRIBUTOR BLOCK
467
LOCK RING DISC SUPPORT
468
SEAL RING OIL DISTRIBUTOR BLOCK
468
SEAL RING , Replaced By: A0229974147
468
SEAL RING , Replaced By: A0129979847
472
COUPLING FLANGE
474
SHIM FLANGE TO TRANSMISSION CASE COVER
475
SEAL RING FLANGE TO TRANSMISSION CASE COVER
475
SEAL RING , Replaced By: A0119979145
477
SPRING WASHER CAB FLOOR
478
SCREW END PIECE TO EXHAUST PIPE M 12X30
478
SCREW , Replaced By: N304017012020
500
SHIFTING CYLINDER NMV 110 P.T.O.
502
CYLINDER
503
SEAL RING SPEEDOMETER DRIVE, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
503
SEAL RING , Replaced By: A0109977248
504
RING ACTUATING PISTON
506
PISTON P.T.O. CONTROL
507
SPRING SHIFTING CYLINDER
508
SPRING SHIFTING CYLINDER
511
STOP RING SHIFTING CYLINDER
512
LOCK RING
513
BOOT SHIFTING CYLINDER
514
NUT
515
CLEVIS. YOKE SHIFTING CYLINDER TO SHIFT LEVER
516
PIN
519
PIN SHIFTING CYLINDER TO BRACKET
521
WASHER COMPRESSED AIR LINE TO BRACKET
521
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
523
COTTER PIN SHIFTING CYLINDER TO BRACKET
524
BRACKET SHIFTING CYLINDER TO CASE
527
SPACER WASHER SHIFTING CYLINDER TO CASE
529
SPRING WASHER STEERING COLUMN BRACKET TO CAB
530
SCREW EXHAUST PIPE TO BRACKET
999
RELEASE BEARING CLUTCH ACTUATION
999
DAMPER SPRING
999
RIVET , Replaced By: A0002522075
999
SPACER RING
999
NUT , Replaced By: A0002523072
999
SHIM CLUTCH PRESSURE PLATE TO FLYWHEEL
999
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
999
FLANGE
999
LEAF SPRING , Replaced By: A0002523319
999
SPRING RELEASE LEVER
999
NUT FOR BRACKETS
999
SPRING RELEASE FLANGE TO RELEASE LEVER
999
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 5.2MM TO 6.2MM, Replaced By: A0002523919, +002A0002523975
999
LEAF SPRING
999
RIVET LEAF SPRING TO CLUTCH DISC
999
LEAF SPRING ,5 563495
999
PRESSURE SPRING ,4 372223
999
PRESSURE SPRING
999
PRESSURE SPRING
999
BREATHER , Replaced By: A3432640089
999
NOZZLE OIL DISTRIBUTOR BLOCK TO 000 264 55 02
999
VALVE DISC , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
999
MAGNET , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
999
REPAIR KITHERION,94171034/0711/24V,94172034/0711
999
HOLLOW SCREW BREATHER
999
EXPANSION PLUG OIL DISTRIBUTOR BLOCK TO 000 264 59 02
999
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
999
REPAIR KITTO 001 997 34 36,002 997 58 36,
999
REPAIR KIT , Replaced By: A0012608357
999
T-FITTING EXHAUST-BRAKE POWER CYLINDER
999
VALVE 3/2-WAY BOSCH
999
VALVE 3/2-WAY WABCO
999
LOOM TIE LINE MOUNTING 280 MM
999
LOOM TIE LINE MOUNTING
999
BALL BEARING BELL HOUSING
999
LOCK
999
SEAL RING LEVER TO RELEASE SHAFT,5 285575
999
LOOM TIE
999
VALVE 3/2-WAY KNORR
999
VALVE 3/2-WAY VOSS
999
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
999
SEAL RING TOP WABCO
999
SPRING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
999
SPRING INSIDE WABCO
999
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
999
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
999
SEAL RING CASE COVER
999
SEAL RING INSIDE WABCO
999
CLUTCH DISC ASBESTOS-FREE LINING
999
CLUTCH DISC , Replaced By: A0072501303
999
CLUTCH DISC ASBESTOS-FREE LINING
999
SEAL CONE
999
LEVER CLUTCH ACTUATION,4 601610
999
SPRING RELEASE BEARING TO RELEASE LEVER
999
SEAL RING BOTTOM
999
SPACER WASHER RELEASE SHAFT,BOTTOM
999
ANGLE LINE MOUNTING
999
LINE , Replaced By: A3812901814
999
LINE , Replaced By: A3812901614
999
SHAFT , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IM REPAIR KIT, Replaced By: A3895860025
999
WASHER , Replaced By: A6202540176
999
HOSE RELEASE COLLAR LUBRICATION 220 MM
999
ENGINE SUPPORT REAR RIGHT
999
HOUSING , Replaced By: A3952500805, +001N007603012106, +001N007604012102
999
END COVER BELL HOUSING
999
SEAL RING DRIVE SHAFT
999
DRIVE SHAFT TO TRANSFER CASE,4 411810
999
BRACKET , Replaced By: A6454310740
999
ENGINE SUPPORT REAR RIGHT
999
P.T.O.NMV 110/1,4 434510
