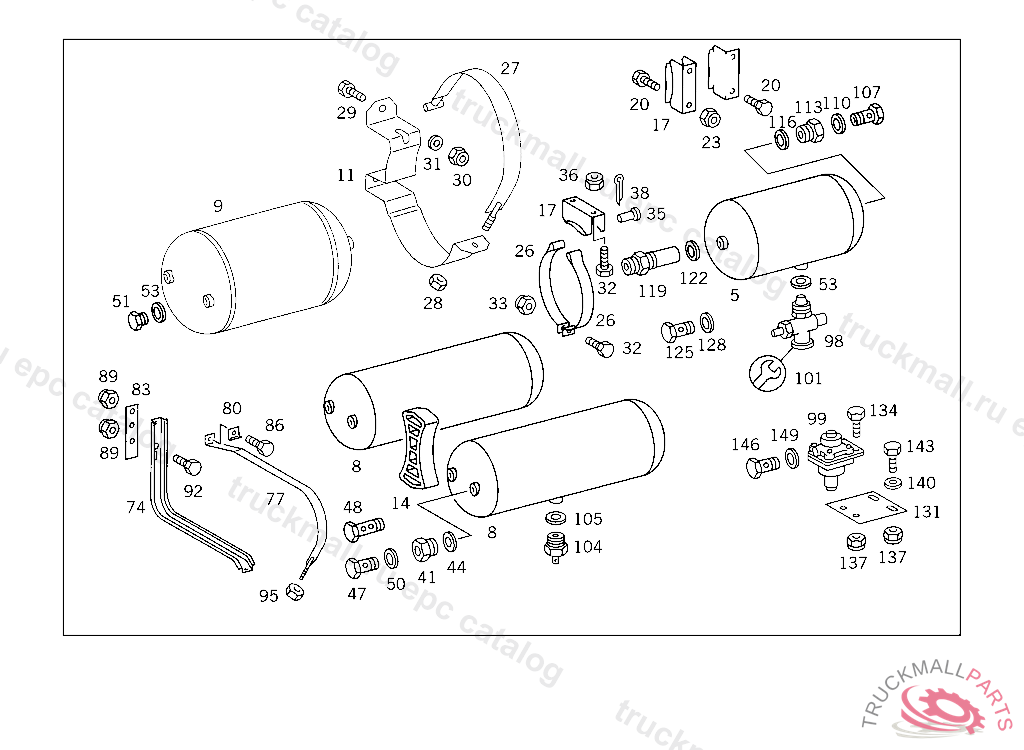

Поз.
Артикул
Описание
5
RESERVOIR AIR RESERVOIR III
8
RESERVOIR AIR RESERVOIRS I AND II 40 L
8
RESERVOIR
9
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
11
BRACKET , Replaced By: A9794300010
11
BRACKET AIR RESERVOIR
14
BASE AIR RESERVOIR TO CONSOLE
20
SCREW BRACKET TO FRAME
20
SCREW FUEL LINE TO SIDE MEMBER
20
SCREW BRACKET TO SIDE MEMBER
27
STRAP AIR RESERVOIR
28
NUT BRACKET TO RETARDER
29
SCREW BRACKET TO SIDE MEMBER
36
NUT BRACKET TO SIDE MEMBER,XB209706
41
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
44
SEAL RING LINE CONNECTION
47
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
48
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
50
SEAL RINGTO 006 997 00 72
51
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
53
SEAL RING LINE CONNECTION
74
CONSOLE AIR RESERVOIR
74
CONSOLE AIR RESERVOIR
77
STRAP
77
STRAP AIR RESERVOIR
80
BASE AIR RESERVOIR
80
BASE
83
PLATE
86
SCREW BRACKET TO FRAME
89
NUT , Replaced By: N910113014000
92
SCREW BATTERY CASE
92
SCREW , Replaced By: N308676014012
92
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
92
SCREW BRACKET TO FRAME
95
NUT BRACKET TO RETARDER
98
VALVE DRAIN 20 L
101
VALVE REPAIR KIT TO 384 432 72 07
104
VALVE DRAIN, Replaced By: A0004322407
104
VALVE
104
VALVE
104
VALVE. DRAIN VALVE DRAIN
104
VALVE DRAIN, Replaced By: A0004322107
105
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
107
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
110
SEAL RINGTO 006 997 00 72
113
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
116
SEAL RING LINE CONNECTION
119
CONNECTOR AIR RESERVOIR,CONNECTION: "10",1B 883558
119
FITTING VALVE TO VALVE
122
SEAL RING LINE CONNECTION
125
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
128
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
BRACKET AIR RESERVOIR III
999
RESERVOIRIII
