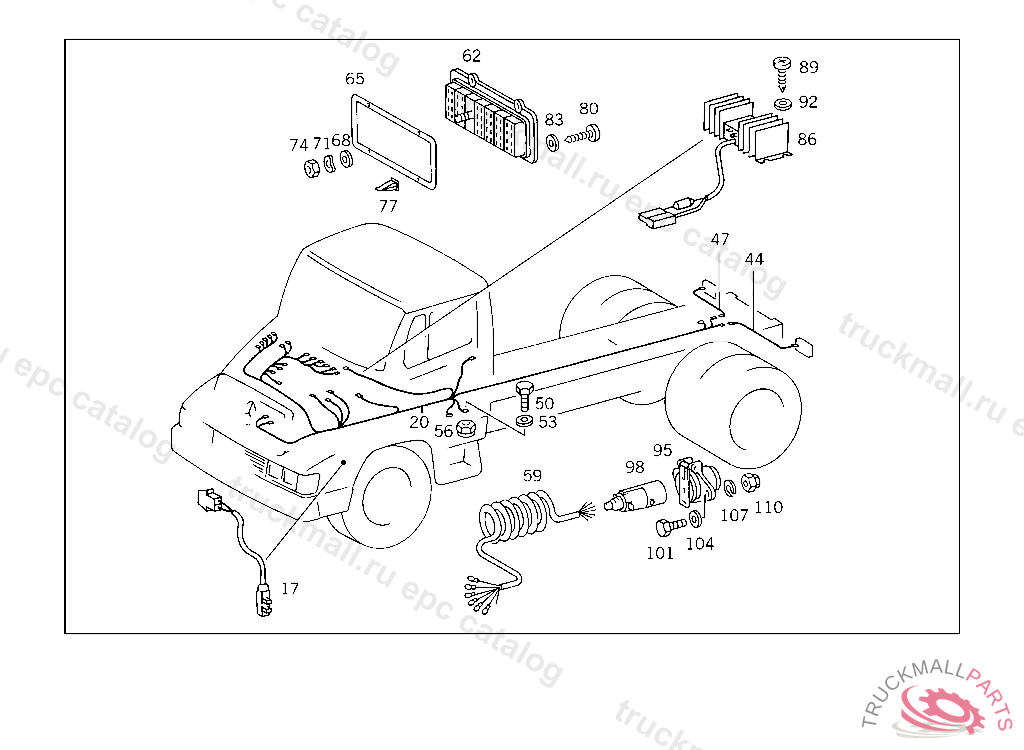

Поз.
Артикул
Описание
20
CABLE HARNESS FRAME MOUNTED CABLE HARNESS,V 141805
20
CABLE HARNESS FRAME MOUNTED CABLE HARNESS
44
CABLE HARNESS LEFT REAR
47
CABLE HARNESS RIGHT REAR
50
SCREW , Replaced By: N304017010040
50
SCREW GROUND CABLE
53
WASHER GROUND CABLE
56
NUT BRACKET TO SIDE MEMBER,XB209706
62
PLUG HOUSING. PLUG (PLUG HOUSING)
62
PLUG (PLUG HOUSING)
65
SEALING RING. SEAL RING PLUG HOUSING TO FIRE WALL
68
WASHER BRACKET TO LEFT SIDE MEMBER
71
SPRING WASHER CABLE TO ALTERNATOR
74
NUT
77
TREENAIL PLUG HOUSING TO FIRE WALL
80
SHEET METAL SCREW BRACKET TO ELECTRICAL APPARATUS COMPARTMENT 4,8X19
83
WASHER FUSE TO FUSE BOX
95
PLUG SOCKET FOR OPERATION WITH TRAILER
95
PLUG SOCKET FOR OPERATION WITH TRAILER
98
PLUG FOR OPERATION WITH TRAILER
98
PLUG TRAILER,7-POLE 12 V
101
SCREW PLUG SOCKET TO FRAME
104
WASHER , Replaced By: N000433005304
107
LOCK WASHER T-FITTING TO BRACKET
110
HEX. NUT M 5 DIN 934-5 S. NUT PLUG SOCKET TO FRAME
