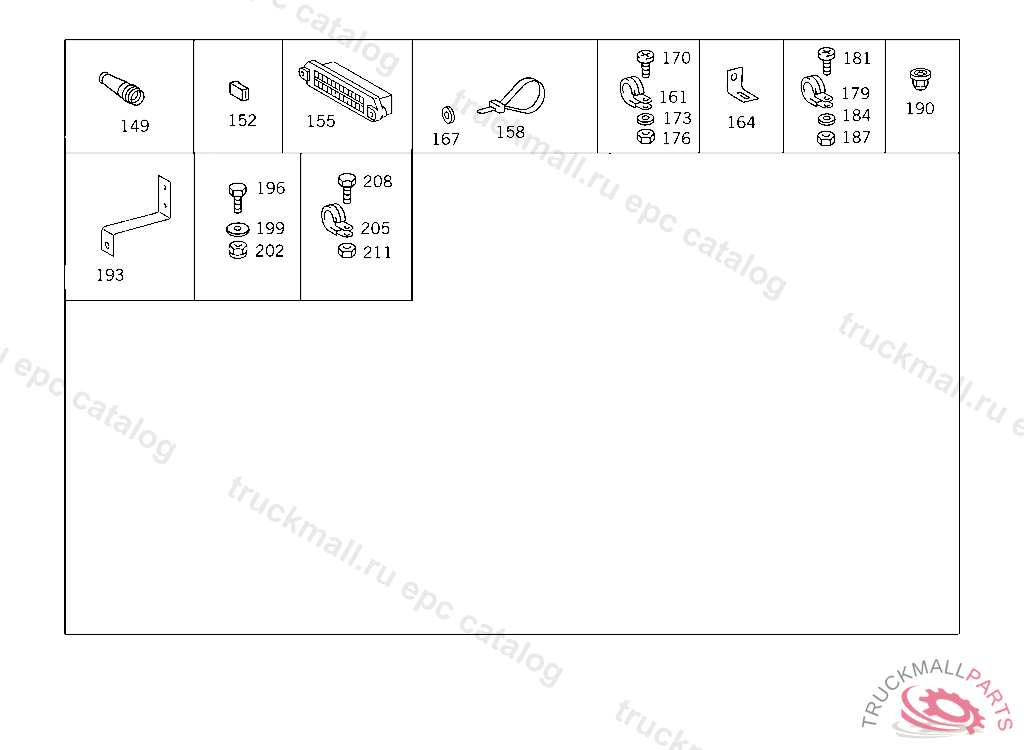

Поз.
Артикул
Описание
149
BOOT , Replaced By: A0005463335
152
BOOT PIN BUSHING
152
PIN BUSHING HOUSING PIN BUSHING 5.3 MM
155
FUSE BOX ,NB953481
158
LOOM TIE ELECTRIC CABLE MOUNTING
158
LOOM TIE160 MM
158
LOOM TIE
158
LOOM TIE , Replaced By: A3459977390
158
LOOM TIE LINE MOUNTING
161
CLAMP ELECTRIC CABLE TO SIDE MEMBER
164
BRACKET PIPING
167
WASHER BRACKET TO LEFT SIDE MEMBER
170
SCREW CABLE TO ALTERNATOR
173
WASHER PLUG SOCKET TO BRACKET
176
NUT
179
CLAMP CABLE HARNESS MOUNTING
179
CLAMP ELECTRIC CABLE TO FIRE WALL
179
CLAMP LINE MOUNTING
179
CLAMP ENGINE AND FRAME
179
CLAMP CABLE HARNESS TO BRACKET
179
CLAMP HOSE TO FLANGE AND TO VALVE
181
SCREW CABLE TO ALTERNATOR
184
WASHER PLUG SOCKET TO BRACKET
187
NUT
190
NUT COVERING TO CAB FIRE WALL
193
BRACKET PIPING
196
SCREW REAR EXHAUST PIPE TO MUFFLER
199
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
202
NUT BRACKET TO SIDE MEMBER,XB209706
205
CLAMP CABLE HARNESS MOUNTING 20/15
205
CLAMP STAY TO BRACKET
205
CLAMP ELECTRIC CABLE TO FRAME SIDE MEMBER
208
SCREW LINES TO BRACKET
211
NUT
