Поз.
Артикул
Описание

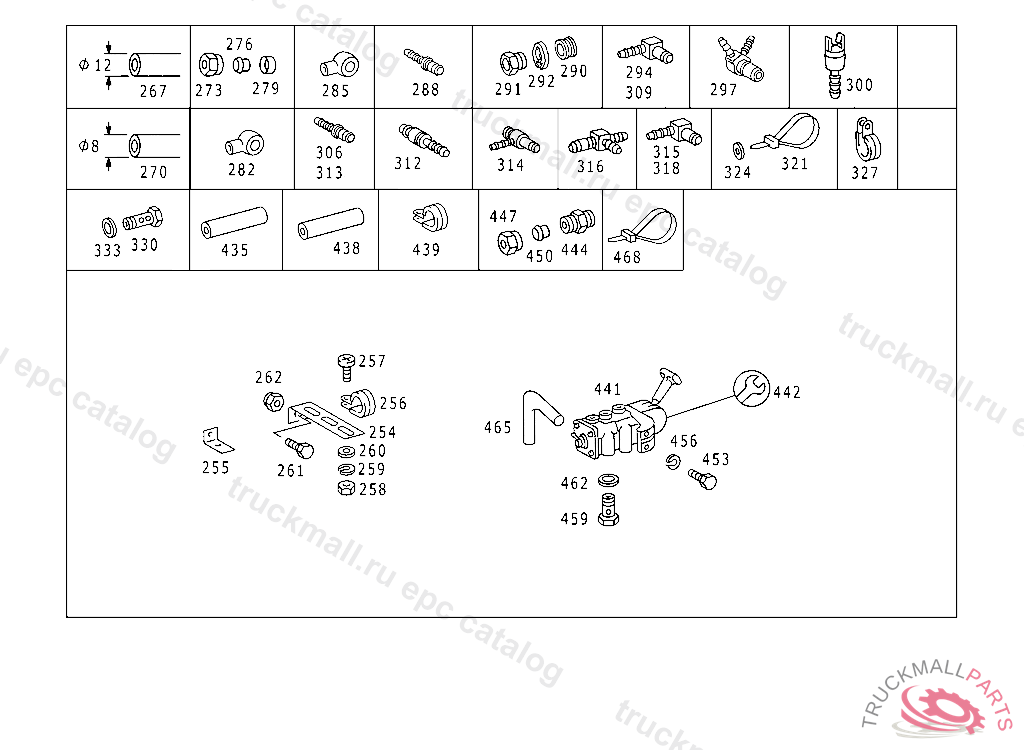

254
BRACKET BRACKET TO CROSS MEMBER
255
BRACKET , Replaced By: A3184280240
256
CLAMP FUEL LINES TO BRACKET
257
SCREW CONTROL UNIT
258
NUT
259
LOCK WASHER CABLE TO FUSE BOX
260
WASHER PLUG SOCKET TO BRACKET
261
SCREW PLUG SOCKET TO FRAME
262
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
262
NUT BRACKET TO SIDE MEMBER
267
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
267
PLASTIC PIPE FRONT AXLE PNEUMATIC SUSPENSION 12X9 MM, ORDER BY THE METER
267
HOSE , Replaced By: A0009872827
270
PLASTIC PIPE8X6 MM, ORDER BY THE METER
270
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
273
UNION NUT LINE CONNECTION, Replaced By: N000000006239
276
GLAND , Replaced By: A0019901967
279
SLEEVE LINE CONNECTION
279
SLEEVE LINE CONNECTION
282
BANJO UNION HEATING CONNECTION,K 169122
282
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
282
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
285
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
285
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM,026097
285
BANJO UNION COMPRESSED AIR LINE
288
CONNECTOR , Replaced By: A0029905478
290
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
291
SCREW. UNION SCREW LINE CONNECTION
292
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
294
ELBOW FITTING , Replaced By: A0049905371
297
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
300
COUPLING COMPRESSED AIR PIPING,YB227219
306
CONNECTOR COMPRESSED AIR PIPING TO M16 / 9MM / VOSS 230
306
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
309
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
312
PLUG COMPRESSED AIR PIPING,YB227219
313
CONNECTOR , Replaced By: A0029905478
314
ELBOW FITTING HOSE WIDTH, 6 MM,TO M 22
315
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
316
CONNECTOR COMPRESSED AIR PIPING,YB227219
318
ELBOW FITTING COMPRESSED AIR PIPING,YB227219
321
LOOM TIE LINE MOUNTING
321
LOOM TIE LINE MOUNTING 280 MM
321
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
321
LOOM TIE ELECTRIC CABLE MOUNTING
324
WASHER , Replaced By: A3609902340
327
CLAMP , Replaced By: A3829950701
327
CLAMP CLAMP TO CROSS MEMBER 42/20
327
CLAMP , Replaced By: A3829950101
327
CLAMP
327
CLAMP COMPRESSED AIR LINE MOUNTING 38/20
330
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
333
SEAL RINGTO 006 997 00 72
333
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
435
INSULATING HOSE COLOR CODE BROWN
435
INSULATING HOSE COLOR CODE ORANGE 12X0.8 MM, ORDER BY THE METER
435
INSULATING HOSE COLOR CODE GREY,YB227219
435
INSULATING HOSE , ORDER BY THE METER
435
INSULATING HOSE , ORDER BY THE METER
438
INSULATING HOSE
438
INSULATING HOSE COLOR CODE BLUE,YB227219
438
INSULATING HOSE , ORDER BY THE METER
438
INSULATING HOSE
438
INSULATING HOSE COLOR CODE GREY,YB227219
438
INSULATING HOSE COLOR CODE BROWN
438
INSULATING HOSE COLOR CODE ORANGE 12X0.8 MM, ORDER BY THE METER
438
INSULATING HOSE , ORDER BY THE METER
439
CLAMP PUMP TO BRACKET
439
CLAMP
439
CLAMP STAY TO BRACKET
441
VALVE PARKING BRAKE,TB108828
442
REPAIR KITTO 388 430 77 09,TB108828
444
CONNECTION FITTING ,TB108828
447
UNION NUT LINE CONNECTION
450
GLAND LINE CONNECTION
453
SCREW PARKING BRAKE VALVE TO INSTRUMENT PANEL,TB108828
456
LOCK WASHER RAIL TO BATTERY SUPPORT
459
HOLLOW SCREW , Replaced By: N915036010108
462
SEAL RING FUEL LINE TO FEED PUMP
465
HOSE WATER SEPARATOR
468
LOOM TIE ELECTRIC CABLE MOUNTING
999
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
SEAL RING LINE CONNECTION
999
SCREW-IN FITTING ,D 091465
999
SCREW MOUNTING CLAMP TO BRACKET AND TO FRAME
999
PLUG SOCKET SEE GROUP 54,FIG.NO.:
999
BRAKE VALVE (SERVICE BRAKE VALVE) WABCO
999
BRAKE VALVE (SERVICE BRAKE VALVE) KNORR
999
PLUG TO PLUG THE FREE CONNECTIONS,K 063043
999
CONNECTOR9MM / M22X1,5 / VOSS 230, Replaced By: A0019909571, +001A0009940147, +001A0009941448, +001A0009970934
999
T-FITTING COMBINATION CYLINDER,CONNECTION: "12"
999
VALVE (PARKING BRAKE VALVE)
999
REPAIR KIT REPAIR KIT TO 695 430 71 81
999
VALVE (PARKING BRAKE VALVE)
999
VALVE (PARKING BRAKE VALVE)
999
FITTING LINE CONNECTION
999
BRAKE VALVE (TRAILER CONTROL VALVE) "WABCO", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
TRAILER CONTROL VALVE (TRAILER CONTROL VALVE) "KNORR"
999
ELECTRIC CABLE PARTS KIT TO A 693 431 72 05
999
VALVE (PARKING BRAKE VALVE) WABCO
999
FITTING LINE CONNECTION, Replaced By: N000000006446
999
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
VALVE
999
REPAIR KIT TRAILER CONTROL VALVE "WABCO"
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
999
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
REPAIR KITTO 003 431 35 05,TB108828
