LK 2635/6X4/40
›
388.366
›
50 RADIATOR
›

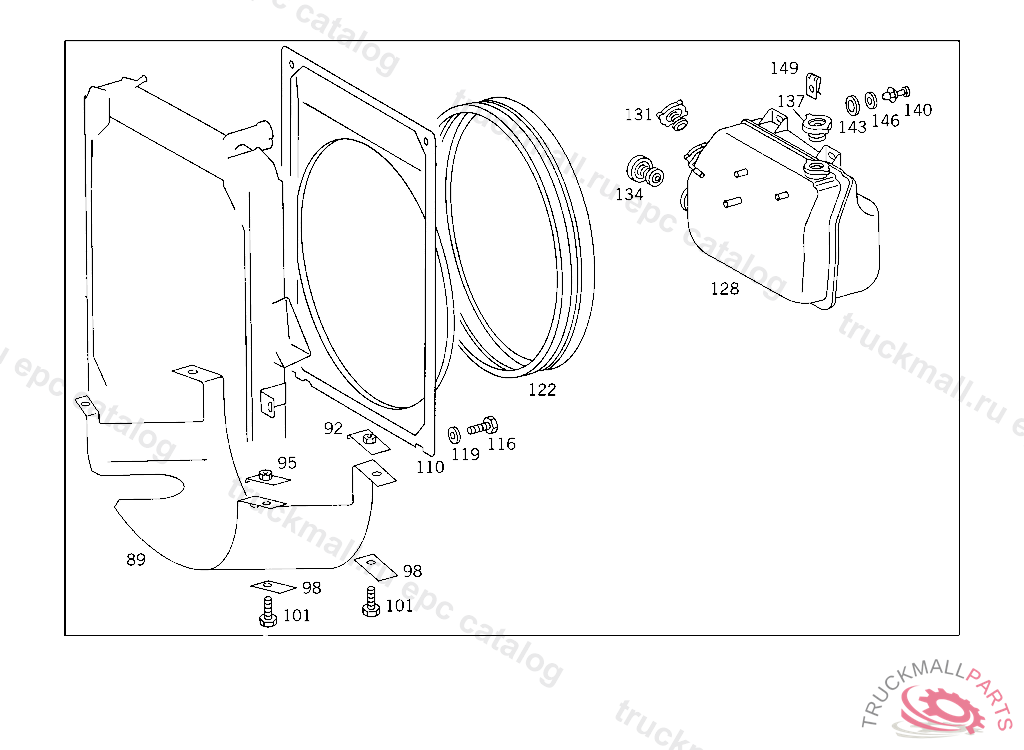

210 RADIATOR,TANK,AIR BAFFLE & FAN SHROUD IL. 2
Mercedes N009021006103 - SCHEIBE DIN 9021-6,4
LK 2635/6X4/40 388.366
50 RADIATOR - 210 RADIATOR,TANK,AIR BAFFLE & FAN SHROUD IL. 2
Поз.
Артикул
Описание
89
A3885057330
AIR BAFFLE ,D 008205D 147395
89
A3885057430
AIR BAFFLE ,D 147396
92
A3885007331
BRACKET AIR BAFFLE,D 008205
95
A3885007531
BRACKET AIR BAFFLE,D 008205
98
A3885047084
SHIM ,D 008205
101
N000933008279
SCREW COLD START SYSTEM TO BRACKET
110
A3885057055
FAN SHROUD
110
A3885057155
FAN SHROUD RADIATOR
116
N000933006230
SCREW OVERLOAD PROTECTOR TO BRACKET
119
N009021006103
WASHER , Replaced By: N009021006208
122
A3885057086
BOOT FAN SHROUD
128
A3845007149
TANK (EXPANSION TANK)
131
A0005014615
RADIATOR CAP FILLER NECK
134
A0005014515
RADIATOR CAP
137
A0005013715
RADIATOR CAP CENTRAL
140
A6739900192
RIVET COOLANT LINE ON FAN SHROUD
143
A3845047012
RUBBER MOUNTING EXPANSION TANK TO BRACKET
146
N000125017010
WASHER , Replaced By: N000125017016
149
A0009941151
LOCK AT WATER EXPANSION TANK
149
N912007016001
CLIP RESERVOIR TO CAB FRONT PANEL
