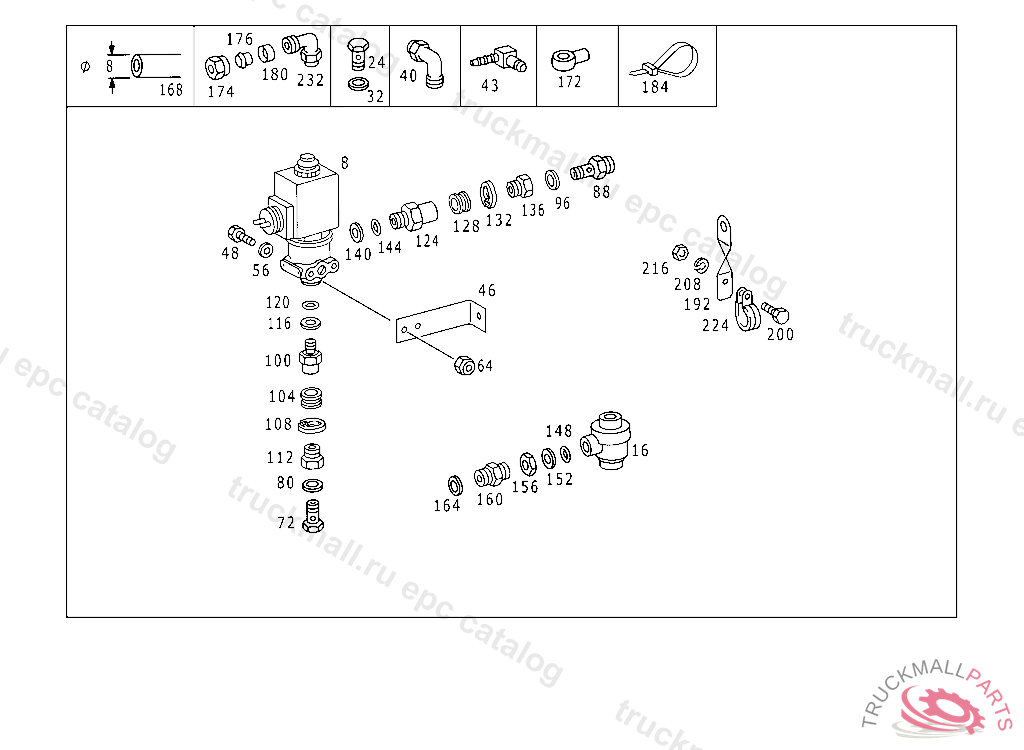

Поз.
Артикул
Описание
8
VALVE CONSTANT THROTTLE
8
VALVE , Replaced By: A0049975736
16
VALVE (QUICK-RELEASE VALVE)
16
VALVE (QUICK-RELEASE VALVE)
16
VALVE , Replaced By: A6964310065
24
HOLLOW SCREW LINE CONNECTION
32
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
40
ELBOW FITTING SINGLE CIRCUIT PISTON CYLINDER, CONNECTION:
43
ELBOW FITTING , Replaced By: A0049905371
46
BRACKET 3/2-WAY VALVE
48
SCREW 3/2-WAY VALVE TO BRACKET M8X55
56
WASHER TRAILER PLUG SOCKET TO BRACKET
64
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
72
HOLLOW SCREW HEATING CONNECTION
80
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
88
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
96
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
100
FITTING LINE CONNECTION
104
SEAL RING , Replaced By: A0009940747
108
LOCK , Replaced By: A0009945448
112
SCREW. UNION SCREW , Replaced By: A0009973734
116
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
116
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
120
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
124
FITTING LINE CONNECTION
128
SEAL RING , Replaced By: A0009940747
132
LOCK , Replaced By: A0009945448
136
SCREW. UNION SCREW , Replaced By: A0009973734
140
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
140
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
144
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
148
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
152
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
152
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
152
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
156
NUT ,D 091466
160
CONNECTOR SOLENOID VALVE,CONNECTION: "2" TOA388 997 81 36 / 88 36
164
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
164
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
168
PLASTIC PIPE8X6 MM, ORDER BY THE METER
168
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
172
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
174
UNION NUT LINE CONNECTION
176
GLAND LINE CONNECTION
180
SLEEVE LINE CONNECTION
184
LOOM TIE ELECTRIC CABLE MOUNTING
184
LOOM TIE , Replaced By: A3459977390
192
BRACKET LINE MOUNTING
200
SCREW CLAMP TO BRACKET
208
LOCK WASHER CABLE TO FUSE BOX
216
NUT
224
CLAMP ,K 147121, Replaced By: N000000000319
232
FITTING TWO-WAY VALVE,CONNECTIONS: "1","2"
999
FITTING LINE CONNECTION, Replaced By: N000000006446
999
SCREW-IN FITTING ,D 091465
