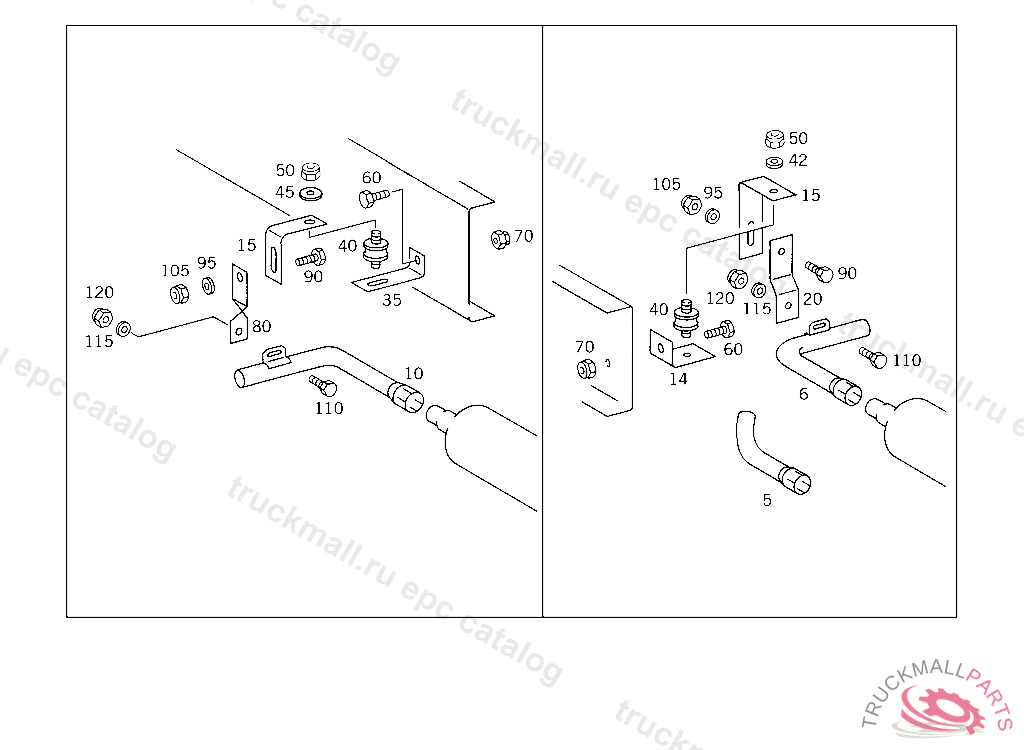

Поз.
Артикул
Описание
5
REAR EXHAUST PIPE (TAIL PIPE)
6
EXHAUST PIPE REAR
6
REAR EXHAUST PIPE REAR
6
EXHAUST PIPE REAR
6
EXHAUST PIPE REAR
10
EXHAUST PIPE REAR
14
BRACKET FRONT EXHAUST PIPE
14
BRACKET TAIL PIPE TO BRACKET
15
BRACKET EXHAUST MUFFLER
20
BRACKET REAR EXHAUST PIPE
35
BRACKET REAR EXHAUST PIPE
40
RUBBER BUFFER EXHAUST MUFFLER
42
WASHER GROUND CABLE
45
WASHER BRACKET TO BRACKET
50
NUT BRACKET TO SIDE MEMBER,XB209706
50
NUT BRACKET TO BRACKET
50
NUT BRACKET TO RETARDER
60
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
60
SCREW BATTERY CASE
70
NUT , Replaced By: N910113014000
70
NUT , Replaced By: N910113014000
80
SUPPORT EXHAUST MUFFLER
90
SCREW , Replaced By: N304017010002
90
SCREW , Replaced By: N304017010002
90
SCREW , Replaced By: N304017010002
95
WASHER GROUND CABLE
105
NUT BRACKET TO SIDE MEMBER,XB209706
110
SCREW , Replaced By: N304017010002
115
WASHER GROUND CABLE
120
NUT BRACKET TO SIDE MEMBER,XB209706
999
REAR EXHAUST PIPE (TAIL PIPE),T 083305
999
EXHAUST PIPE FRONT, NOT USED
999
CLAMP REAR EXHAUST PIPE TO MUFFLER,B 884220
999
END PIECE , Replaced By: A3884927014
999
REAR EXHAUST PIPE
999
FLANGE GASKET EXHAUST PIPE TO EXHAUST MANIFOLD
