Поз.
Артикул
Описание

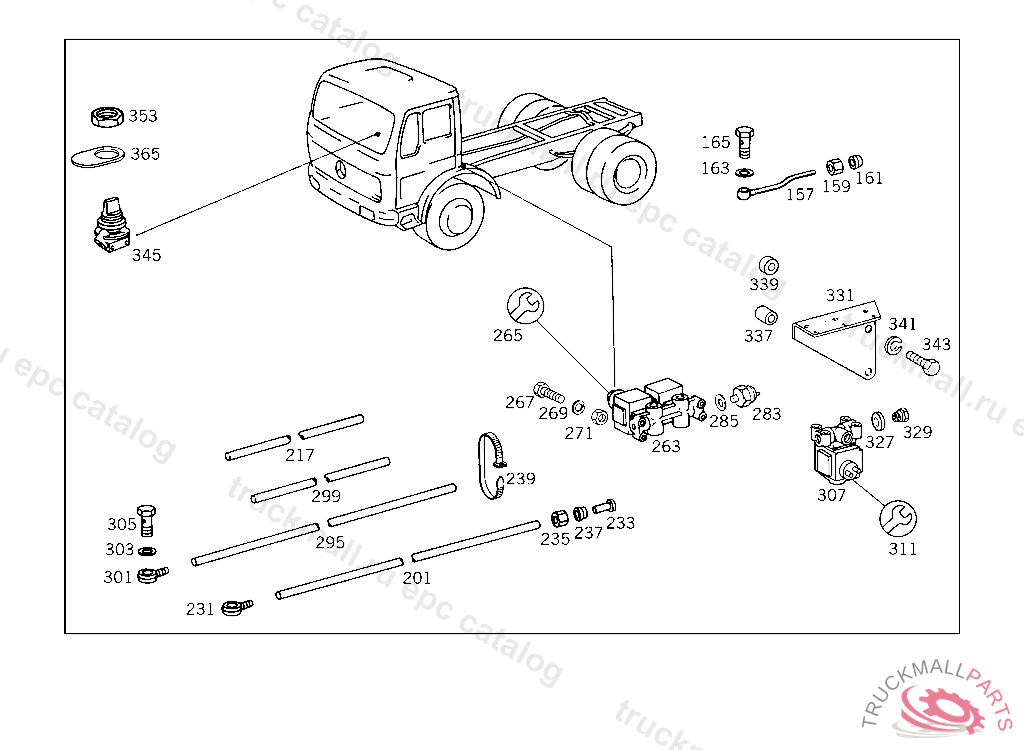

201
INSULATING HOSE COLOR CODE BLUE 2X0,01 MM
217
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
231
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
231
BANJO UNION , Replaced By: N915052006013
233
SLEEVE LINE CONNECTION
233
SLEEVE , Replaced By: N915062006000
235
UNION NUT LINE CONNECTION
237
GLAND LINE CONNECTION
239
LOOM TIE LINE MOUNTING
263
VALVE GEAR-CLUSTER/SHIFT-PATH INTERLOCK, 002,006 FROM CHASSIS 4 263014-4 422632, 034,134 FROM CHASSIS 4 276784-4 422632, 033 FROM CHASSIS 4 422632
265
REPAIR KIT SOLENOID VALVE HERION,9417237/0734/12V
265
REPAIR KIT SOLENOID VALVE HERION,9417232/0711/12V
267
SCREW , Replaced By: N304017006026
267
SCREW , Replaced By: N304017006026
269
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
271
NUT BALL PIVOT TO LEVER
283
SWITCH NEUTRAL POSITION
283
SWITCH , Replaced By: A0015455314
285
SEAL RING PNEUMATIC VALVE
285
SEAL RING , Replaced By: N007603010110
295
PLASTIC PIPE RISING PIPE 4X6 MM
295
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
299
INSULATING HOSE8X0,01 MM
299
INSULATING HOSE RED, ORDER BY THE METER
301
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
301
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
301
BANJO UNION , Replaced By: N915052004006
303
SEAL RING LINE CONNECTION
305
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
307
VALVE P.T.O.
307
VALVE , Replaced By: A0002607957
311
REPAIR KITTO 001 997 34 36,002 997 58 36,
311
REPAIR KITHERION,94171034/0711/24V,94172034/0711
327
SEAL RING LINE CONNECTION
329
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
329
SCREW PLUG , Replaced By: N000908012009
331
BRACKET RIGHT,4 195521
331
BRACKET LEFT
337
BUSHING BRACKET TO TRANSMISSION
339
SPACER TUBE BRACKET TO TRANSMISSION
341
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
343
SCREW CLUTCH TO FLYWHEEL
345
VALVE 3/2-WAY VOSS
345
VALVE 3/2-WAY KNORR
345
VALVE 3/2-WAY BOSCH
345
VALVE 3/2-WAY WABCO
353
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
365
SYMBOL PLATE P.T.O. I
365
UNIT IDENTIFICATION PLATE SYMBOL FOR P.T.O. DUMPER PUMP
999
VALVE , Replaced By: A0002608157
999
CAP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6202680157
999
VALVE DISC , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
999
MAGNET , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
999
LENS AUTOMATIC TRANSMISSION
999
HOLLOW SCREW , Replaced By: N915047008100
999
BUSHING , Replaced By: N915062004000
999
BUSHING , Replaced By: N915062002000
999
BUSHING , Replaced By: A0007630043
999
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
999
REPAIR KIT SHIFT LEVER VALVE
999
REPAIR KIT , Replaced By: A0012608357
999
SCREW SHIFTING ROD TO SHIFT LEVER
999
FITTING NEUTRAL POSITION 3/2-WAY VALVE, CONNECTION: "2"
999
LOOM TIE LINE MOUNTING 280 MM
999
FITTING (PARTS KIT),LINE RUPTURE
999
FITTING , Replaced By: A0029905971
999
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
999
SEAL RING TOP WABCO
999
SPRING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
999
SPRING INSIDE WABCO
999
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
999
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
999
SEAL RING ,4 411810
999
SEAL RING
999
SEAL RING INSIDE WABCO
999
SCREW SHIFTING ROD TO TRANSMISSION
999
BUSHING PAWL TO ROD END,5 443047
999
JOINT , Replaced By: A3832680489
999
FITTING , Replaced By: N915039008100
999
BRACKET SHIFTING ROD,4 291252
999
BRACKET FRONT SHIFTING ROD TO REAR SHIFTING ROD
999
SHIFT LEVER , 002,006 EXHAUST STOCK OF OLD PART NUMBER FIRST UP TO CHASSIS 4 263013,034,134 EXHAUST STOCK OF OLD PART NUMBER FIRST UP TO CHA SSIS 4 276783, Replaced By: A3852603639
999
BRACKET SENSOR CABLE TO FRONT AXLE
999
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
999
WASHER BETWEEN THE SHIFTING RODS
999
YOKE CONNECTOR,4 2630144 366027
999
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
999
WASHER 3/2-WAY VALVE TO BRACKET
999
RUBBER RING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3852681950
999
COVER SHIFT LEVER KNOB LESS GEARSHIFT DIAGRAM
999
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
SCREW CONNECTOR
999
SCREW SOLENOID VALVE TO TRANSMISSION CASE TOP COVER M 6X32,002,003,006-009 4 263014-4 422632,034,134 4 276784-4 422632
999
SCREW , Replaced By: N304017008018
999
SCREW , Replaced By: N000933010192
999
SCREW COVER PLATE TO BRACKET
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
GLAND LINE MOUNTING
999
GLAND BLEEDING, FROM IDENT NO. 5 033767,EXCEPT FOR 5 039977
999
UNION NUT LINE CONNECTIONS
999
SERRATED WASHER BRACKET TO CAB FLOOR,4 411811
999
SHEET METAL SCREW BRACKET TO CAB
999
SCREW SUPPORT TO FENDER
999
NUT
999
SCREW BRACKET TO ENGINE MOUNTING
999
SPRING WASHER SHIFTING ROD TO SHIFT LEVER
999
NUT STRAP TO BRACKET
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHERROCKINGER TYP 59 G140,59 G150
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT , Replaced By: N910113010000
999
UNION NUT LINE MOUNTING, Replaced By: N000000006521
999
HOLLOW SCREW LINE CONNECTION
999
HOLLOW SCREW HEATING CONNECTION
999
HOLLOW SCREW LINE CONNECTION
999
SLEEVE LINE MOUNTING
999
SLEEVE LEAK LINE
