Поз.
Артикул
Описание

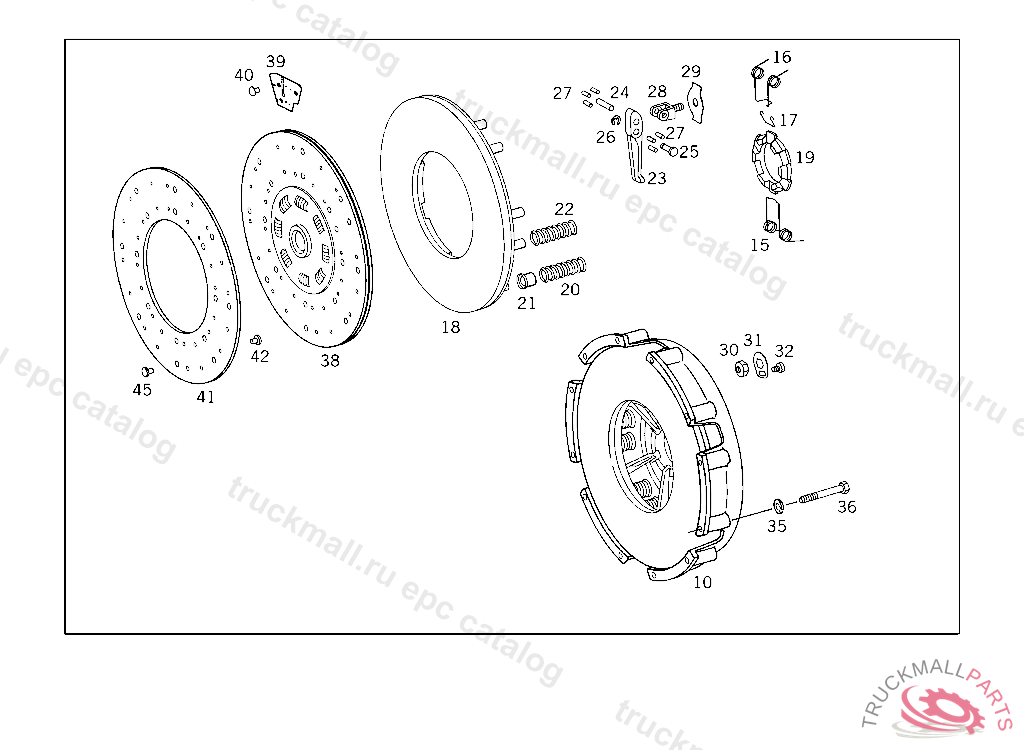

10
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
15
SPRING SUSPENDED BELOW LEAF SPRING
15
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
16
CLAMP RELEASE FLANGE TO RELEASE LEVER
16
SPRING , Replaced By: A0002523227
17
SPRING SUSPENDED BELOW LEAF SPRING
17
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
18
PRESSURE PLATE
19
FLANGE
20
PRESSURE SPRING SPRING STEEL WIRE DIA., 3.75 MM
21
SLEEVE CLUTCH PRESSURE PLATE
22
PRESSURE SPRING SPRING STEEL WIRE DIA., 4.00 MM
23
RELEASE LEVER CLUTCH ACTUATION
24
SPINDLE FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
25
SPINDLE FOR BEDDING THE LEVERS IN BRACKETS
26
LOCK PLATE RELEASE LEVER TO SHAFT
27
ROLLER FOR BEDDING THE LEVERS IN BRACKETS
28
BRACKET RELEASE LEVER
29
LEAF SPRING THIGH SPRING SUSPENDED BELOW LEAF SPRING
29
LEAF SPRING THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
30
NUT FOR BRACKETS
31
LOCK FOR BRACKETS
32
SCREW RELEASE LEVER,BRACKET
35
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
36
SCREW , Replaced By: N304017010055
36
SCREW , Replaced By: N304017010050
38
CLUTCH DISC , Replaced By: A0052506403
38
CLUTCH DISC , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0062504503
38
CLUTCH DISC , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0062504603
38
CLUTCH DISC , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0072500803
38
CLUTCH DISC
38
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
38
CLUTCH DISC
38
CLUTCH DISC ASBESTOS-FREE LINING
39
LEAF SPRING
39
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 5.2MM TO 6.2MM, Replaced By: A0002523819, +002A0002523975
40
RIVET , Replaced By: A0002522075
40
RIVET LEAF SPRING TO CLUTCH DISC
40
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
41
CLUTCH LINING
41
CLUTCH LINING ASBESTOS-FREE
41
CLUTCH LINING , Replaced By: A0012522910
42
RIVET , Replaced By: A0002521275
42
RIVET LINING WITH INTERMEDIATE SPRING
42
RIVET LINING WITH INTERMEDIATE SPRING,5 563495
45
RIVET LINING WITH CLUTCH DISC,5 563495
45
RIVET LEAF SPRING TO CLUTCH DISC
999
PLUG BELL HOUSING
999
SLAVE CYLINDER ,4 601609, Replaced By: A0012950307, +001A6202900534, +001A0009966440
999
VALVE , Replaced By: A3075530107
999
VALVE CLUTCH SLAVE CYLINDER
999
SHAFT (PARTS KIT),RELEASE SHAFT
999
BUSHING ,4 401411, Replaced By: A3852510450, +001A0119978846
999
SHAFT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 285575, Replaced By: A3852500014
999
REPAIR KIT , Replaced By: A3892500014
999
LEVER (PARTS KIT),CLUTCH ACTUATION
999
GREASE NIPPLE (PARTS KIT) RELEASE BEARING LUBRICATION
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
