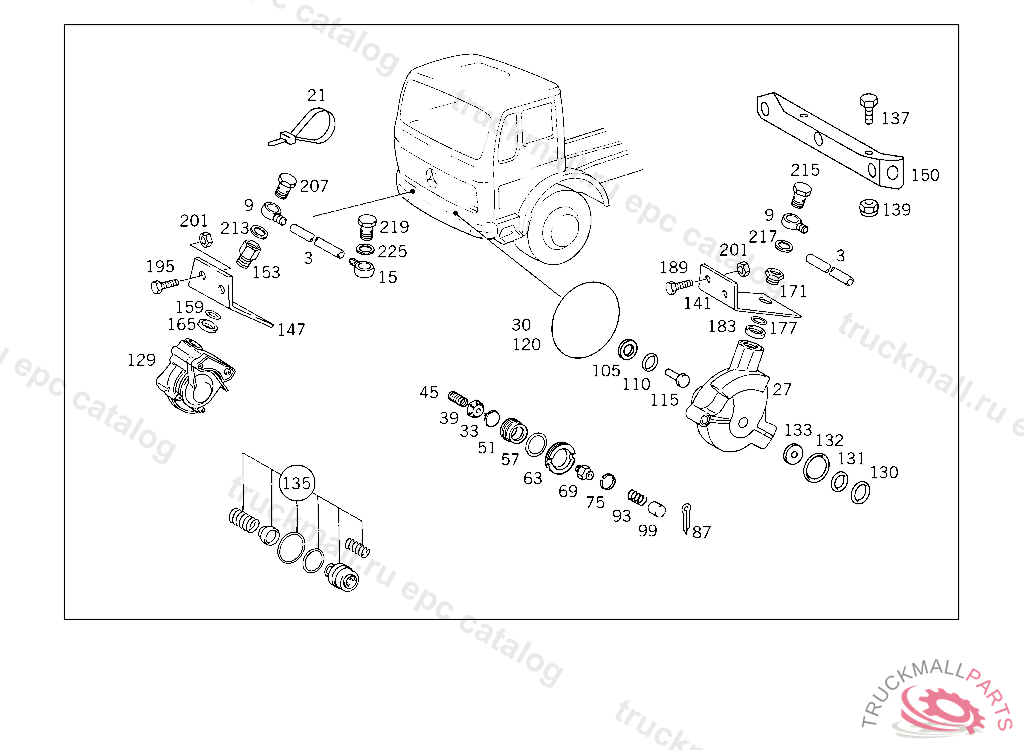

Поз.
Артикул
Описание
3
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
9
BANJO UNION HEATING CONNECTION,K 169122
15
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
21
LOOM TIE LINE MOUNTING
27
BRAKE LINE COUPLING AT REAR CROSS MENBER
27
BRAKE LINE COUPLING AT REAR CROSS MENBER
27
BRAKE LINE COUPLING AT REAR CROSS MENBER
27
BRAKE LINE COUPLING AT REAR CROSS MENBER
30
SEAL RINGTO 000 429 75 30
33
VALVE DISCTO 000 429 48 30
33
VALVE DISCTO 000 429 48 30
39
VALVE DISCTO 000 429 48 30
39
VALVE DISCTO 000 429 48 30
45
SPRINGTO 000 429 16 30
51
SPRINGTO 000 429 16 30
51
VALVE PARTTO 000 429 16 30
57
GASKETTO 000 429 16 30
63
NUTTO 000 429 16 30
69
VALVE TAPPETTO 000 429 16 30
75
SNAP RINGTO 000 429 16 30
87
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
93
SPRINGTO 000 429 16 30
99
SPRING CAPSULETO 000 429 16 30
105
SEAL RINGTO 000 429 16 30
110
SEAL RINGTO 000 429 16 30
110
SEAL RINGTO 000 429 16 30
115
PIN
115
PIN
115
COVERTO 000 429 48 30
115
VALVE CONEBOSCH
115
COVERWABCO
115
SEAL RINGBOSCH
115
REPAIR KITKNORR
120
SEAL RINGTO 000 429 75 30
120
REPAIR KITWABCO
129
BRAKE LINE COUPLING SUPPLY, RED "KNORR"
129
BRAKE LINE COUPLING SUPPLY, RED "WABCO"
129
BRAKE LINE COUPLINGWESTINGHOUSE
129
BRAKE LINE COUPLING SUPPLY, RED "BOSCH"
129
BRAKE LINE COUPLING SUPPLY, RED "GRAU"
129
BRAKE LINE COUPLING , Replaced By: A0004299630
130
SEAL RING30X2 MM,BOSCH
130
SEAL RING"GRAU"
131
SEAL RING25X2 MM,BOSCH
131
SEAL RING25X2 MM,BOSCH
132
SEAL RING33X2.5 MM,BOSCH
133
VALVE TAPPET22X4 MM,BOSCH
133
SEAL RING22X4 MM,BOSCH
135
REPAIR KIT BRAKE LINE COUPLING "WABCO"
137
SCREW PIPE CLAMP
137
SCREW , Replaced By: N304017008021
139
NUT , Replaced By: N913004008001
139
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
141
BRACKET LEFT
147
BRACKET , Replaced By: A3934291440
147
BRACKET INSIDE RIGHT
147
BRACKET INSIDE RIGHT
150
BRACKET
153
ADAPTER FITTING BRAKE LINE COUPLING TO BRACKET
159
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
165
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
171
FITTING BRAKE LINE COUPLING TO BRACKET
177
O-RING CHECK VALVE TO AIR RESERVOIR
183
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
183
THRUST RING CHECK VALVE TO AIR RESERVOIR
189
SCREW , Replaced By: N304017008021
189
SCREW PIPE CLAMP
195
SCREW , Replaced By: N304017008034
195
SCREW BRACKET TO CROSS CONNECTION STRUT
201
NUT , Replaced By: N913004008001
201
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
207
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
207
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
213
SEAL RING FUEL LINE TO FEED PUMP
213
SEAL RING FUEL LINE TO FEED PUMP
215
HOLLOW SCREW , Replaced By: N915036010108
215
HOLLOW SCREW FUEL LINE TO FEED PUMP
217
SEAL RING FUEL LINE TO FEED PUMP
219
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
219
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
225
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
225
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SEAL RING , Replaced By: A0049978240, +001A0004290483
999
COVERTO 000 429 16 30,BOSCH
999
BRAKE LINE COUPLING , Replaced By: A0004297530
