Поз.
Артикул
Описание
5

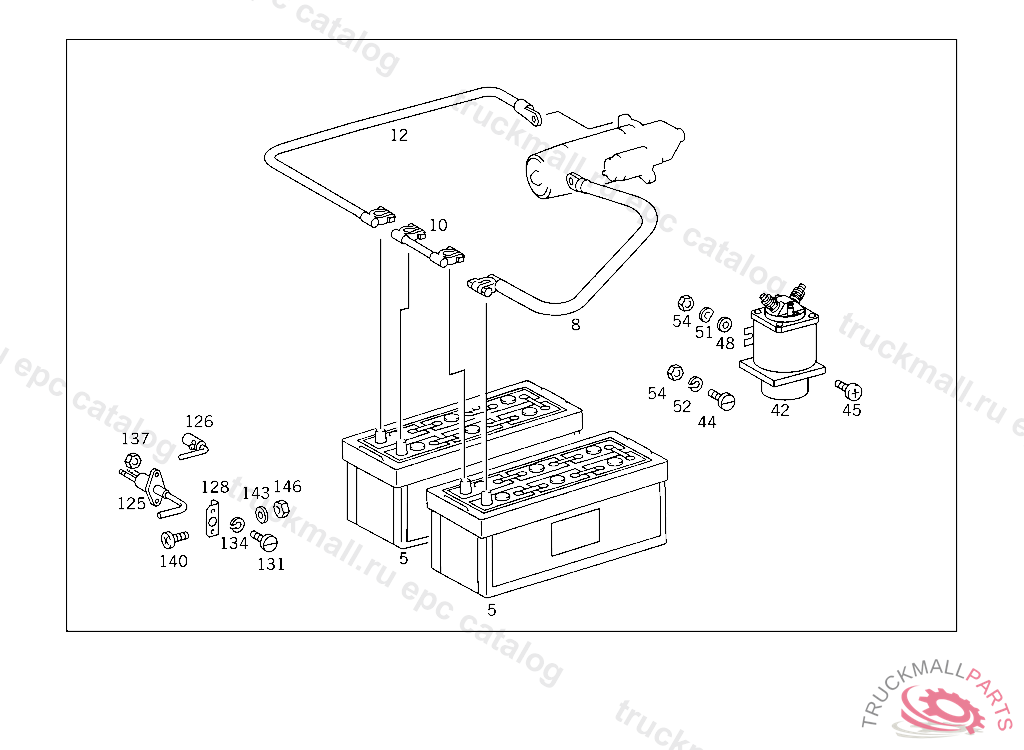

BATTERY LESS ACID 12 V 135 A
5
BATTERY LESS ACID 12V-180A
8
POSITIVE CABLE FROM BATTERY TO STARTING MOTOR
8
POSITIVE CABLE FROM BATTERY TO STARTING MOTOR
10
POSITIVE CABLE FROM BATTERY I TO BATTERY II
12
NEG. CABLE FROM BATTERY TO SWITCH, 390.001,031 A 099200 390.002,032 A 099381 390.012 A 099417 390.013 A 099300
12
NEG. CABLE , Replaced By: A3905407231
12
NEG. CABLE FROM BATTERY TO SWITCH
42
CONTACTOR , Replaced By: A3885457067
42
CONTACTOR STARTING MOTOR RELAY
44
SCREW FUEL LINE TO BRACKET
45
SCREW SIDE MARKER LAMP
48
WASHER , Replaced By: N000433005304
51
SPRING WASHER CABLE TO ALTERNATOR
54
NUT MODULE TO HOUSING
125
SWITCH BATTERY CUT-OFF
126
KEY
128
BRACKET SWITCH TO BATTERY SUPPORT
131
SCREW COMPRESSED AIR LINE TO ENGINE MOUNTING SUPPORTING ARM
134
LOCK WASHER CABLE TO FUSE BOX
137
NUT
140
SCREW ELECTRICAL COMPARTMENT
143
WASHER , Replaced By: N009021006208
146
NUT
999
CABLE SHOE
