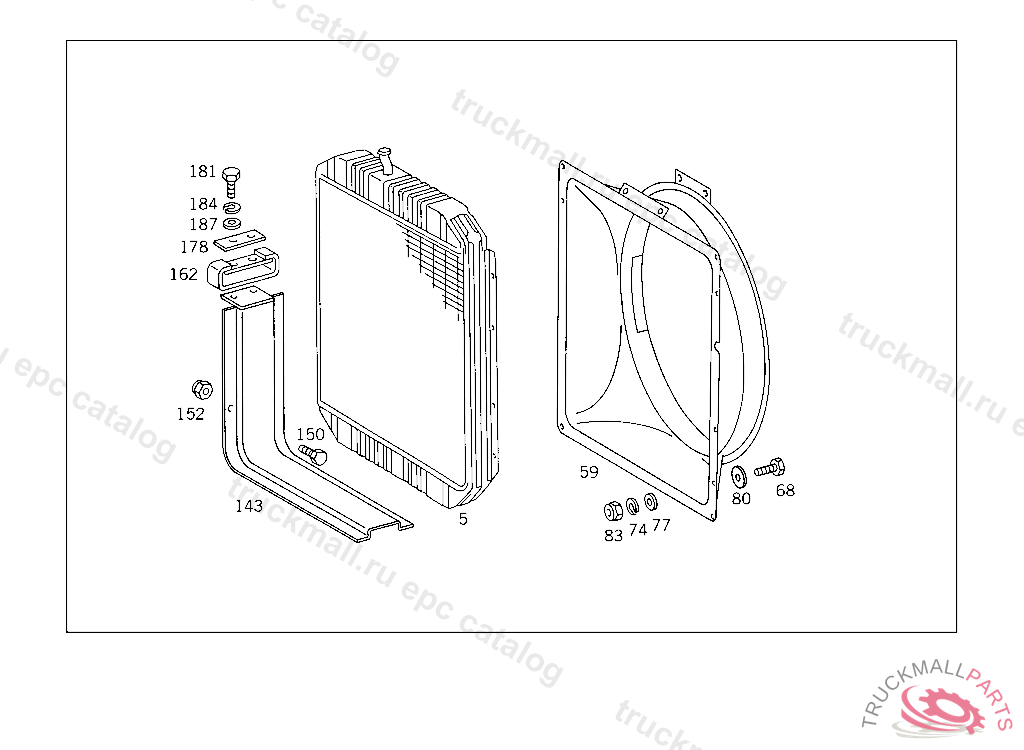

Поз.
Артикул
Описание
5
RADIATOR WATER
5
RADIATOR
5
RADIATOR
5
RADIATOR , Replaced By: A3905007601
5
RADIATOR , Replaced By: A3905007801
5
RADIATOR WATER
59
FAN SHROUD FAN SHROUD TO RADIATOR
59
FAN SHROUD RADIATOR
68
SCREW STEERING SHAFT BEARING TO CAB M 8X20
74
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
77
WASHER TRAILER PLUG SOCKET TO BRACKET
80
WASHER BRACKET TO SIDE MEMBER
83
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
143
SUPPORT RADIATOR MOUNTING, 390.001,031 A 099200 390.002,032 A 099381 390.012 A 099417 390.013 A 099300
143
SUPPORT
150
SCREW BEARING BRACKET TO SIDE MEMBER
152
NUT BRACKET TO LEFT SIDE MEMBER
162
RUBBER MOUNTING RADIATOR
162
RUBBER MOUNTING RADIATOR
162
RUBBER MOUNTING RADIATOR
178
SHIM RADIATOR TO SUPPORT
181
SCREW , Replaced By: N304017010002
181
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
184
LOCK WASHER , Replaced By: N912004010102
187
WASHER
