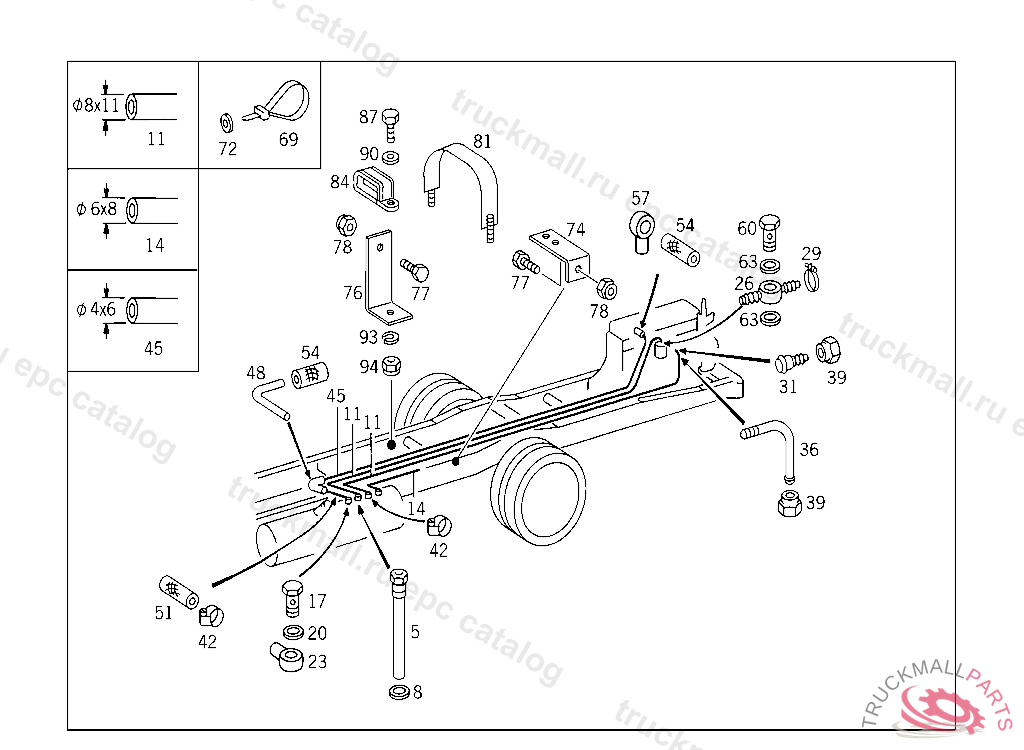

Поз.
Артикул
Описание
5
RISING PIPE ,A 069205
8
SEAL RING CONNECTION: 1,4 719029
11
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
14
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
17
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
17
HOLLOW SCREW
20
SEAL RING AT TANK
20
SEAL RING14X18
23
BANJO UNION
23
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
26
BANJO UNION FEED
26
BANJO UNION FROM HOSE TO FEED PUMP
29
CLAMP LINE MOUNTING
31
FITTING RETURN
36
LINE RETURN LINE
36
CONNECTOR
39
NUT. UNION NUT RETURN
42
CLAMP LINE MOUNTING
45
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
48
HOSE CONNECTION FLANGE "PIGNANELLI",VB112577
48
HOSE , Replaced By: A3849977082, +001A3829907088
54
SLEEVE LEAK LINE
57
BANJO UNION FROM INJECTION PUMP TO VALVE
69
LOOM TIE LINE MOUNTING
72
WASHER BRACKET TO LEFT SIDE MEMBER
74
BRACKET POS. AND NEG. CABLES
77
SCREW HAND PUMP TO BRACKET
78
NUT BRACKET TO SIDE MEMBER,XB209706
