Поз.
Артикул
Описание

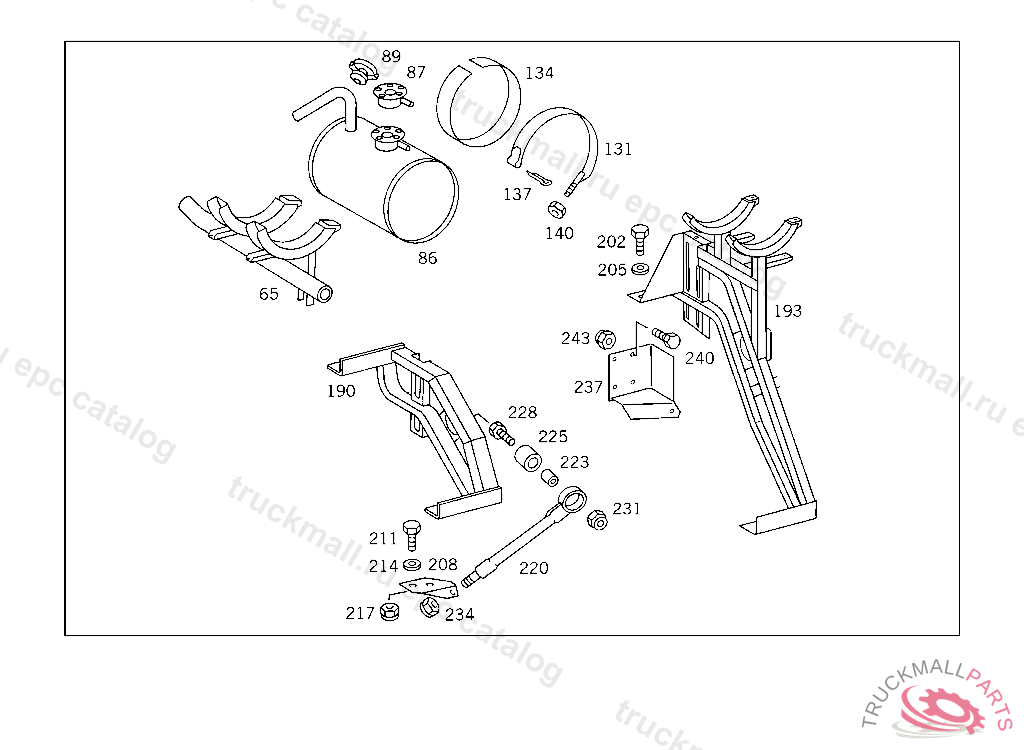

86
TANK EXPANSION TANK
86
TANK COOLING WATER EXPANSION,C 069707
86
TANK EXPANSION TANK
87
VALVE
89
RADIATOR CAP EXPANSION TANK TO 390 500 72 49
89
RADIATOR CAP EXPANSION TANK TO 390 500 71 49
89
RADIATOR CAP
131
STRAP
134
RUBBER STRIP EXPANSION TANK TO SUPPORT
137
COTTER PIN LEVER TO TORSION BAR
140
NUT LEVER TO SHIFTING SHAFT
190
SUPPORT
193
SUPPORT FAN SUPPORT,A 112537
202
SCREW RUBBER MOUNTING TO CONSOLE
205
WASHER GROUND CABLE
220
RADIATOR STRUT FAN SUPPORT
223
SPACER TUBE
225
JOINT RUBBER BRACKET TO SUBSTRUCTURE
228
SCREW BEARING BRACKET TO CAB
231
NUT SUPPORT TO SIDE MEMBER
234
NUT STRAP TO SUPPORT,5 149419
237
SUPPORT , 390.001,031 A 099200 390.002,032 A 099381 390.012 A 099417 390.013 A 099300
240
SCREW , Replaced By: N304017010002
243
NUT , Replaced By: N910113010000
