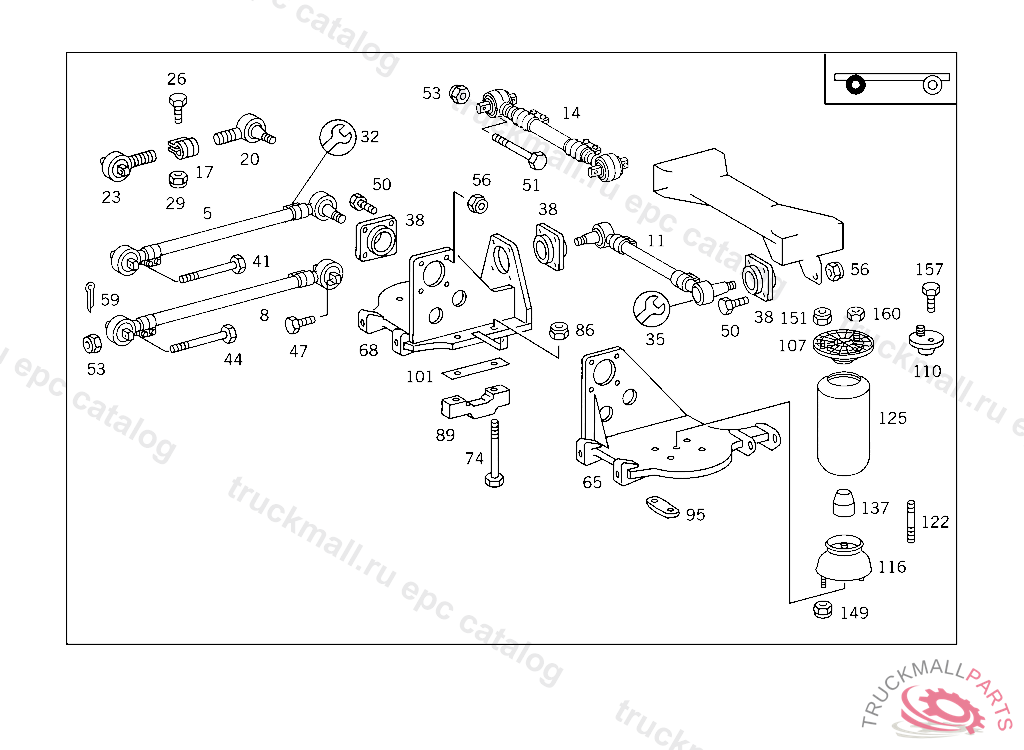

Поз.
Артикул
Описание
5
THRUST ARM AT CROSS MEMBER "NAKATA"
8
THRUST ARM AT CROSS MEMBER "NAKATA"
11
THRUST ARM AT CROSS MEMBER "5"
17
CLAMP
20
JOINT LEFT, L.H. THREAD TO 390 330 71 11
20
JOINT LEFT, L.H. THREAD TO 390 330 70 11,72 11
20
JOINT R.H. THREAD TO 390 330 72 11
23
JOINTTO 390 330 70 11,71 11
26
SCREW RIGHT BRACKET TO RIGHT BEARING BRACKET
29
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
32
THRUST ARM REPAIR KIT TO 390 330 70 11,71 11
35
THRUST ARM REPAIR KIT TO 390 330 70 11,72 11
38
FLANGE AT CROSS MEMBER
41
SCREW THRUST ROD TO CROSS MEMBER M 18X60
44
SCREW LONGITUDINAL CONTROL ARM TO SUBSTRUCTURE
47
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
50
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 12X1.5X50
53
NUT TORSION BAR TO BEARING BRACKET,5 904661
56
NUT , Replaced By: N910113012003
59
COTTER PIN PISTON ROD TO LIFTING ARM
65
SUPPORT LEFT
68
SUPPORT RIGHT
74
SCREW BELL HOUSING TO TRANSMISSION M 18X1,5X170
74
SCREW SHOCK ABSORBER TO RAIL
74
SCREW LONGITUDINAL CONTROL ARM TO SUBSTRUCTURE
86
NUT TORSION BAR TO BEARING BRACKET,5 904661
89
BRACKET SUPPORT TO FRONT AXLE
95
SHIM SUPPORT TO FRONT AXLE
101
SHIM SUPPORT TO FRONT AXLE
107
STOP AIR SPRING BELLOWS,TOP,A 111555
110
STOP AIR SPRING BELLOWS,TOP,A 111556
116
PISTON AIR SPRING BELLOWS,BOTTOM
122
STUD BOLTTO 390 320 72 29,70 18
125
AIR SPRING BELLOWS AIR SPRING BELLOWS
125
AIR SPRING BELLOWS FRONT AXLE,A 111555
137
HELPER SPRING FRONT AXLE,A 111555
137
HELPER SPRING FRONT AXLE,A 111556
149
NUT , Replaced By: N910113012003
151
NUT SUPPORT TO SIDE MEMBER
157
SCREW RUBBER BUFFER TO FRAME
160
NUT , Replaced By: N308675020003
999
SCREW
999
FITTING
