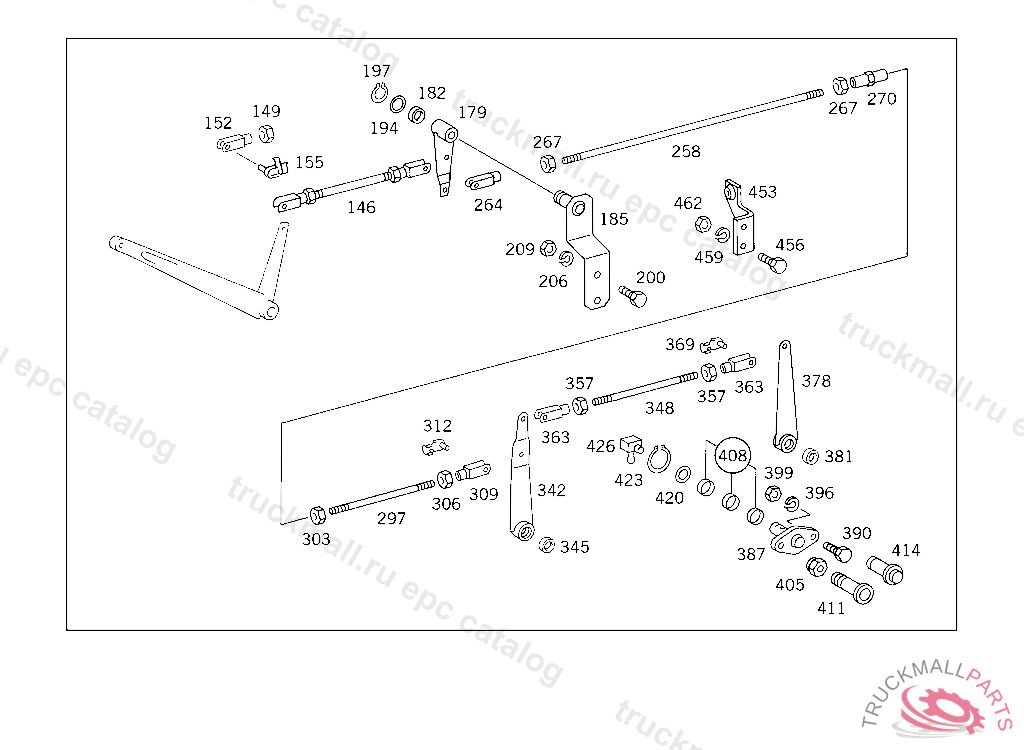

Поз.
Артикул
Описание
146
ROD FROM CONTROL LEVER TO REVERSING LEVER,A 093356
149
NUT BALL PIVOT TO LEVER
152
YOKE PULL ROD TO INTERMEDIATE LEVERS I & II
152
YOKE ACCELERATOR CONTROL
155
PIN OPERATING ROD TO BRACKET
179
LEVER REVERSING LEVER,A 093356
182
BUSHING , USED WITH AIR BRAKE
185
BRACKET AT LEFT SIDE MEMBER
194
FITTED WASHER , USED WITH AIR BRAKE
197
LOCK RING PIN TO BEARING BRACKET, 380.017,080,081,180,181 ONLY FOR SHORT CAB MERCEDES-BENZ
200
SCREW ENGINE CROSS MEMBER TO SIDE MEMBERS M 10X25
206
LOCK WASHER , Replaced By: N912004010102
209
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
258
PULL ROD FROM CONTROL REVERSING LEVER I TO TURNBUCKLE 6X4900X50/50
264
YOKE PULL ROD TO INTERMEDIATE LEVERS I & II
264
YOKE ACCELERATOR CONTROL
267
NUT , Replaced By: N304032006004
270
NUT FRONT SHIFTING ROD
297
PULL ROD FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER 6X930,793543
303
NUT FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER
306
NUT , Replaced By: N304032006004
309
YOKE ACCELERATOR CONTROL
309
YOKE PULL ROD TO INTERMEDIATE LEVERS I & II
312
PIN OPERATING ROD TO BRACKET
342
LEVER (INTERMEDIATE LEVER)
345
BUSHING MANUAL CONTROL,D 249954
348
PULL ROD PULL ROD TO LEVER II
357
NUT , Replaced By: N304032006004
363
YOKE ACCELERATOR CONTROL
363
YOKE PULL ROD TO INTERMEDIATE LEVERS I & II
369
PIN OPERATING ROD TO BRACKET
378
LEVER
378
LEVER (INTERMEDIATE LEVER),793544
381
BUSHING MANUAL CONTROL,D 249954
387
BEARING
390
SCREW BRAKE CYLINDER TO BRAKE ANCHOR PLATE
390
SCREW BRACKET TO SIDE MEMBER
396
LOCK WASHER RAIL TO BATTERY SUPPORT
396
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
399
NUT LEVER TO SHIFTING SHAFT
399
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
408
HUB
414
PIVOT PIN ,13 036670
420
WASHER PEDAL BEARING
423
LOCK RING BELT TIGHTENER
426
GREASE NIPPLE
453
BRACKET PULL ROD BRACKET
456
SCREW , Replaced By: N304017010002
459
LOCK WASHER , Replaced By: N912004010102
462
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
999
LEVER , NOT USED
