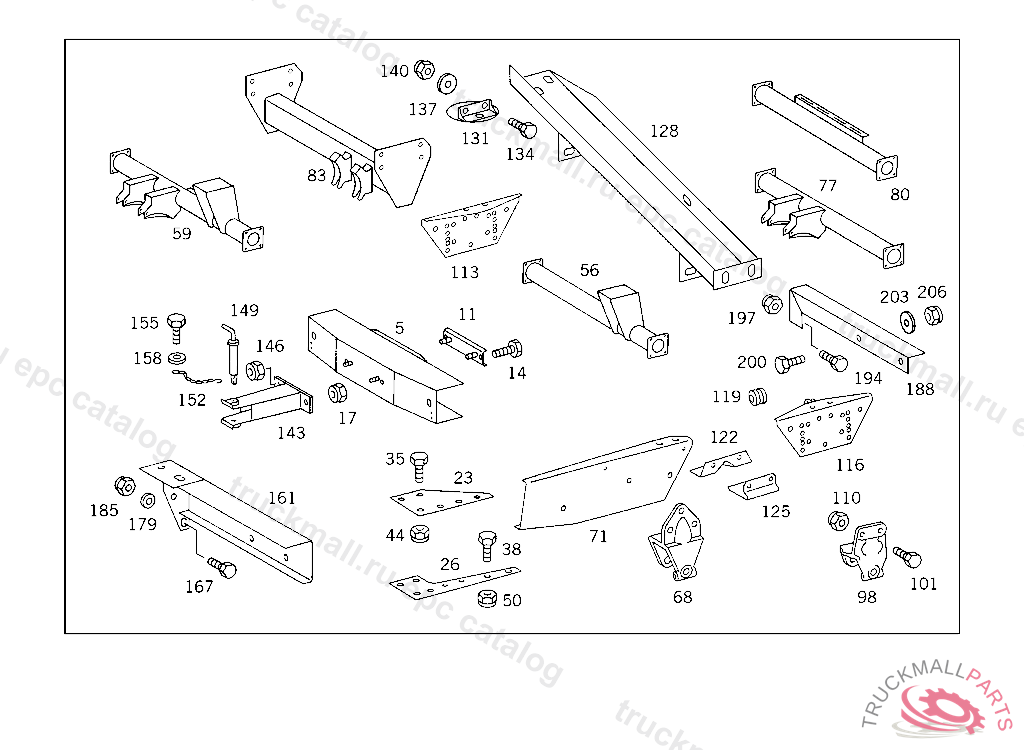

Поз.
Артикул
Описание
5
CROSS MEMBER FRONT NO.1
11
STIFFENING
14
SCREW BRACKET TO FRAME SIDE MEMBER
17
NUT , Replaced By: N910113010000
23
GUSSET PLATE FRONT TOP
23
GUSSET PLATE , Replaced By: A3903127187
26
GUSSET PLATE FRONT BOTTOM,A 097860
35
SCREW , Replaced By: N304017010002
35
SCREW BRACKET TO FRAME SIDE MEMBER
35
SCREW BRACKET TO BUMPER,LEFT M 10X25
38
SCREW BRACKET TO LEFT SIDE MEMBER
38
SCREW BEARING BRACKET TO SIDE MEMBER
44
NUT , Replaced By: N910113010000
50
NUT BRACKET TO LEFT SIDE MEMBER
50
NUT BRACKET TO SIDE MEMBER
59
CROSS MEMBER , 390.001,031 A 099200 390.002,032 A 099381 390.012 A 099417 390.013 A 099300
71
REINFORCEMENT RIGHT,FRONT SPRING FRONT BRACKET
71
REINFORCEMENT LEFT,FRONT SPRING FRONT BRACKET
83
CROSS MEMBERNO.3
122
STAY
131
MOUNTING PLATE AIR SPRING BELLOWS,LEFT,A 111556
131
MOUNTING PLATE AIR SPRING BELLOWS,LEFT,A 111555
131
MOUNTING PLATE AIR SPRING BELLOWS,RIGHT,A 111555
131
MOUNTING PLATE AIR SPRING BELLOWS,RIGHT,A 111556
134
SCREW BRACKET TO LEFT SIDE MEMBER
137
WASHER CONSOLE TO REAR CROSS MEMBER,5 751724
140
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
161
BODY SUPPORT REAR LEFT
161
BODY SUPPORT FRONT LEFT
167
SCREW BRACKET TO SIDE MEMBER
167
SCREW BRACKET TO BUMPER,LEFT M 10X25
167
SCREW EXHAUST PIPE TO BRACKET
167
SCREW , Replaced By: N304017010002
167
SCREW BEARING BRACKET TO SIDE MEMBER
179
WASHER GROUND CABLE
179
WASHER
185
NUT BRACKET TO LEFT SIDE MEMBER
185
NUT , Replaced By: N910113010000
188
BRACKET WHEELHOUSE
188
BRACKET WHEELHOUSE
194
SCREW CONSOLE TO SIDE MEMBER
197
NUT SUPPORT TO SIDE MEMBER
200
SCREW GROUND STRAP TO CAB CROSS MEMBER M 10X25
203
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
206
NUT , Replaced By: N910113010000
999
BUSHING
999
BRACKET , NOT USED
999
BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
999
SCREW BRACKET TO EXHAUST PIPE BRACKET
999
NUT BALL PIVOT TO LEVER
999
WASHER STRUT TO CONSOLE
